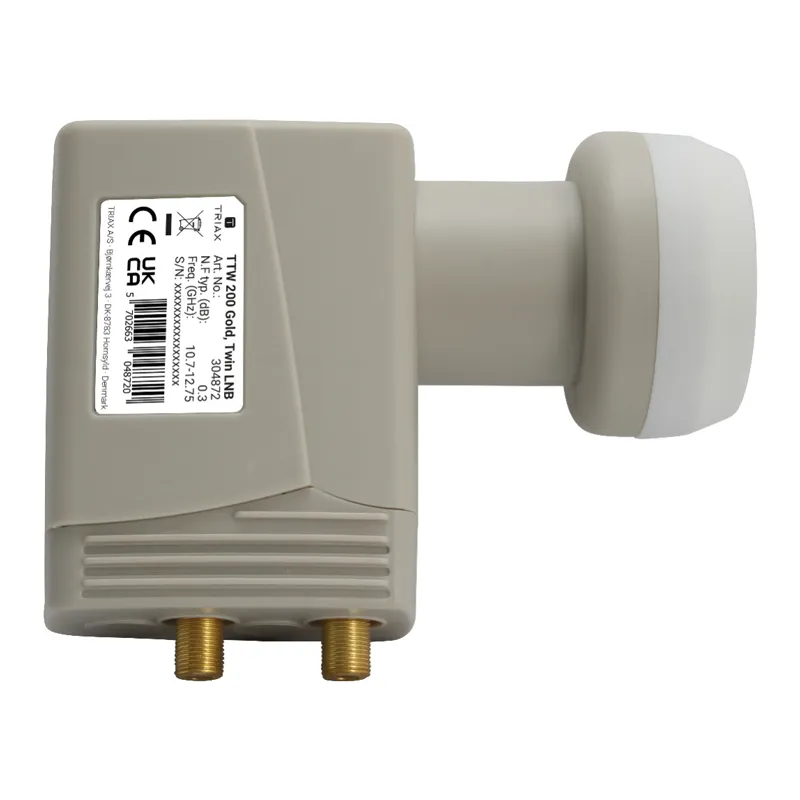

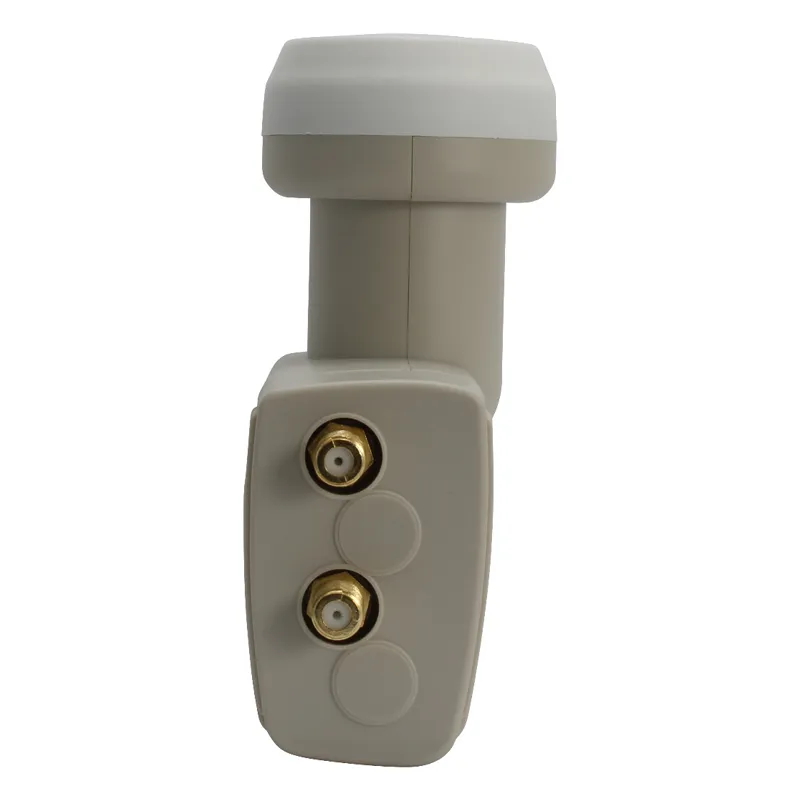

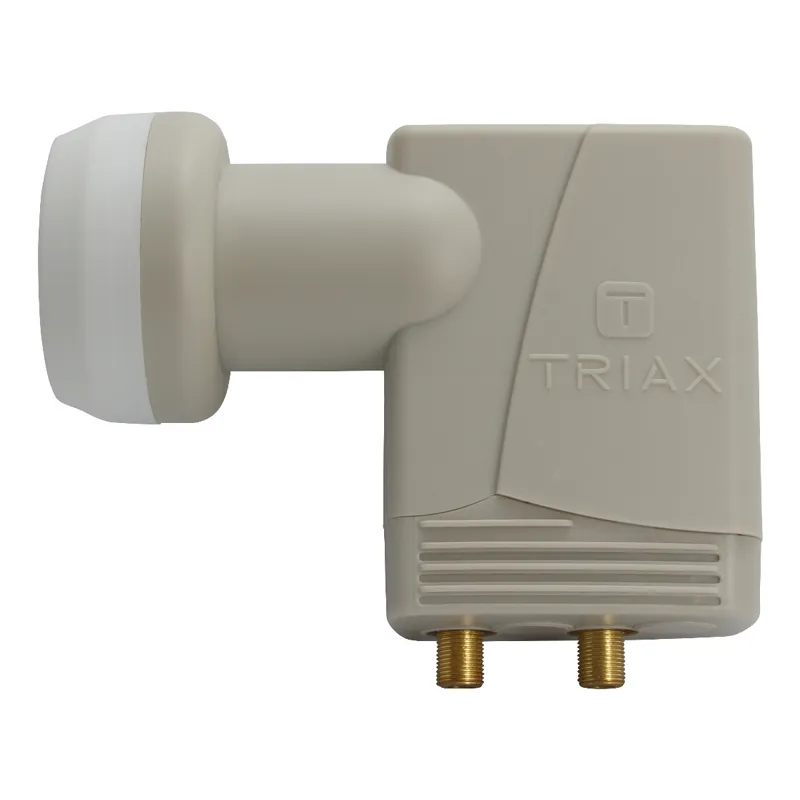

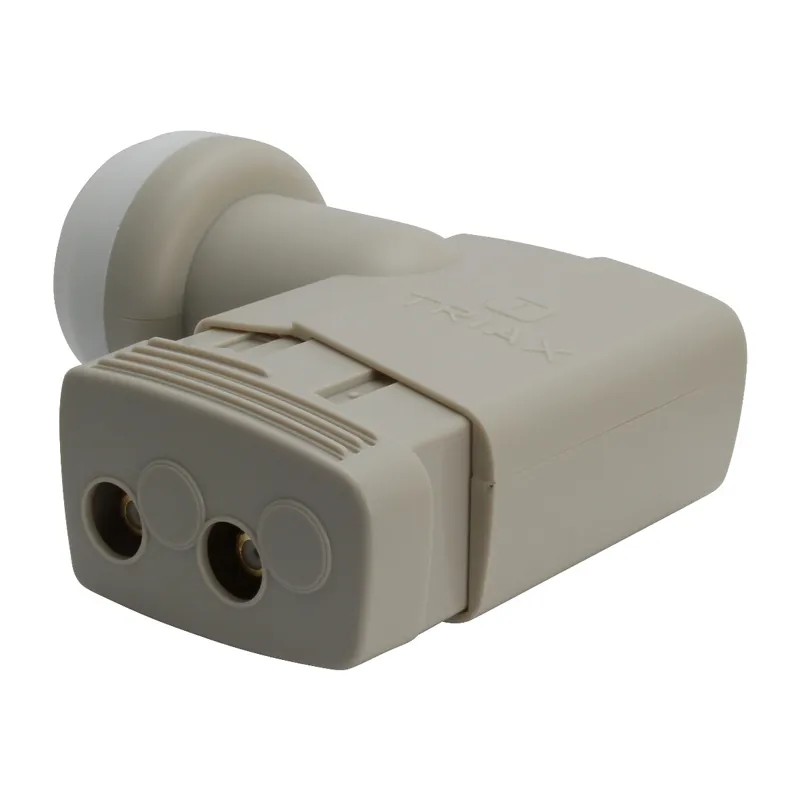

Triax TTW-200 Gold twin LNB (2 outputs, PLL, 40 mm feed, 0.3 dB noise figure)
Triax
Triax TTW-200 Gold twin LNB (2 outputs, PLL, 40 mm feed, 0.3 dB noise figure)
Model: TTW-200 Gold
Pricing for this product is provided on request.
Request a quoteTriax TTW-200 Gold is a twin-output Ku-band LNB with a PLL local oscillator, covering 10.7-12.75 GHz in low and high bands (9.75 / 10.6 GHz local oscillators). It has a 40 mm feedhorn for offset dishes, F-female outputs and a weatherproof housing qualified by Triax for harsh environments.
Specifications
| Article number | 304872 |
| LNB type | Twin |
| Input frequency | 10.7-11.7 GHz (low band), 11.7-12.75 GHz (high band) |
| Output frequency | 950-2150 MHz |
| L.O. frequency | 9.75 GHz (low band), 10.6 GHz (high band) |
| L.O. technology | PLL |
| L.O. temperature drift | ± 2 MHz |
| Conversion gain (typ.) | 53-68 dB |
| Noise figure (max.) | 0.3 dB |
| Cross polarisation isolation | 20 dB |
| Image rejection (min.) | 40 dB |
| Phase noise (1 / 10 / 100 kHz) | -55 / -80 / -90 dBc/Hz |
| Output VSWR | 2.5:1 |
| Feedhorn diameter | 40 mm |
| Output impedance | 75 Ω |
| Connector | F-female |
| Operating voltage | 11.5-14.0 V DC (vertical), 16.0-20.0 V DC (horizontal) |
| Current consumption | 170 mA |
| Operating temperature | -30 to +60 °C |
| Dimensions (H x W x D) | 135.2 x 112 x 61 mm |
| Net weight | 0.200 kg |
| Colour | RAL 9002 grey white |
| Model | TTW-200 Gold |
