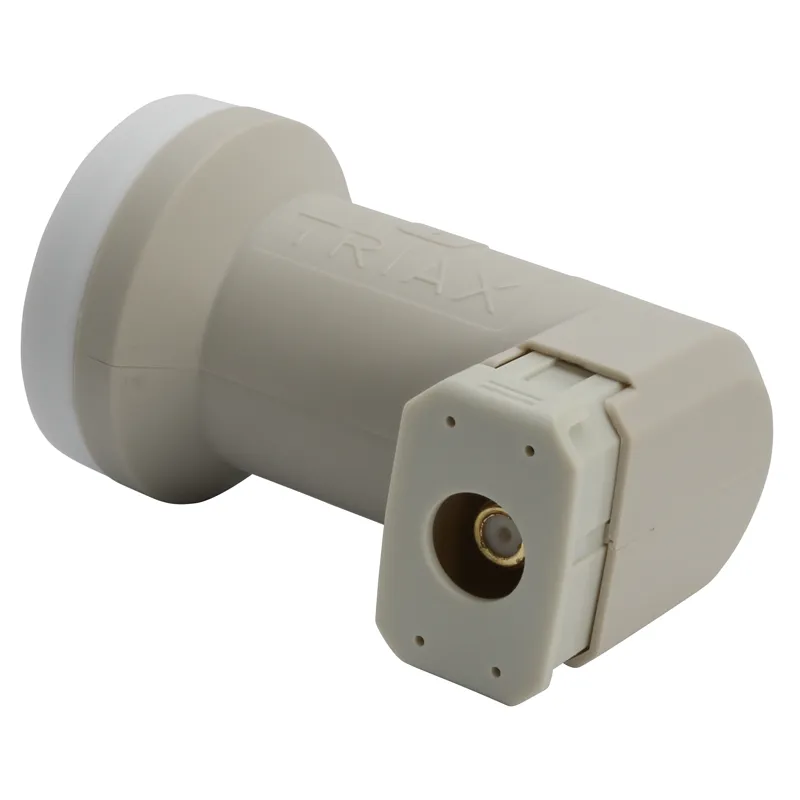

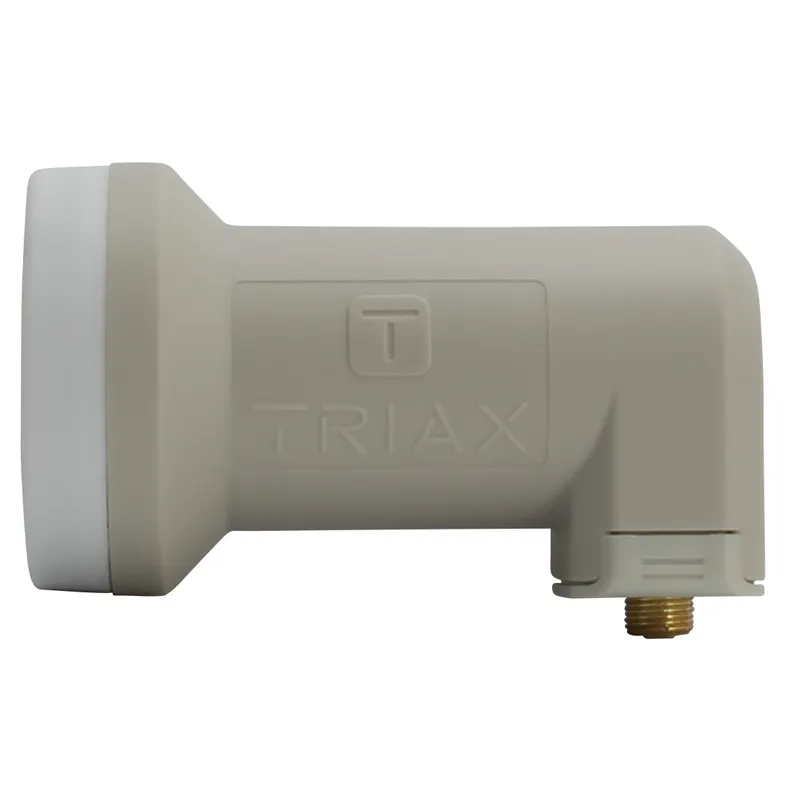

Triax TSI-100 Gold single LNB (1 output, PLL, 40 mm feed, 0.3 dB noise figure)
Triax
Triax TSI-100 Gold single LNB (1 output, PLL, 40 mm feed, 0.3 dB noise figure)
Model: TSI-100 Gold
Pricing for this product is provided on request.
Request a quoteTriax TSI-100 Gold is a single-output Ku-band LNB with a PLL local oscillator, covering 10.7-12.75 GHz in low and high bands (9.75 / 10.6 GHz local oscillators). It has a 40 mm feedhorn for offset dishes, an F-female output and a weatherproof housing qualified by Triax for harsh environments.
Specifications

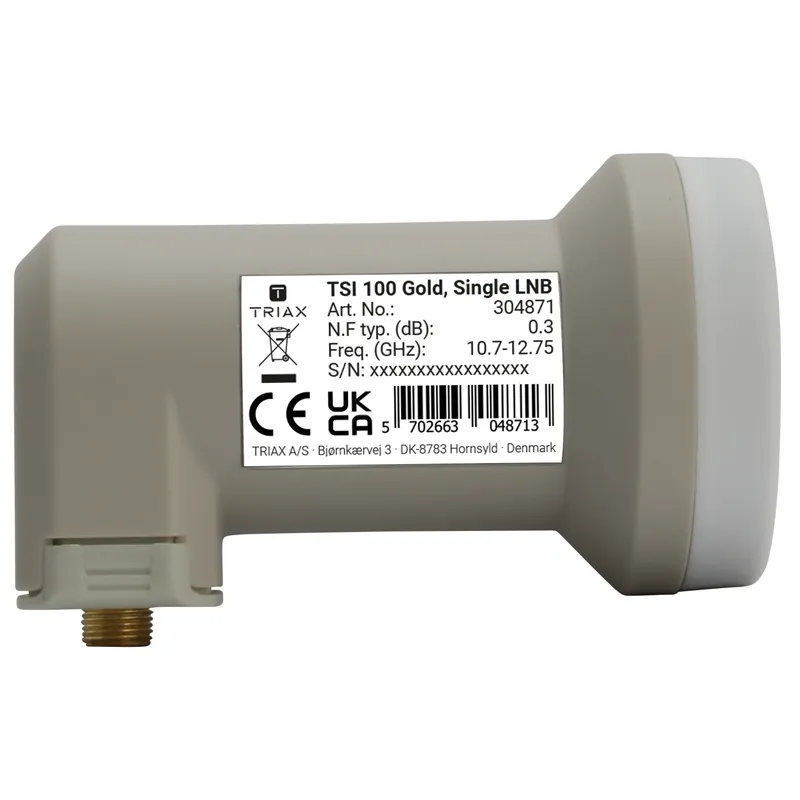

| Article number | 304871 |
| LNB type | Single |
| Input frequency | 10.7-11.7 GHz (low band), 11.7-12.75 GHz (high band) |
| Output frequency | 950-2150 MHz |
| L.O. frequency | 9.75 GHz (low band), 10.6 GHz (high band) |
| L.O. technology | PLL |
| L.O. temperature drift | ± 3 MHz |
| Conversion gain (typ.) | 57-65 dB |
| Noise figure (max.) | 0.3 dB |
| Cross polarisation isolation | > 23 dB |
| Image rejection (min.) | 40 dB |
| Phase noise (1 / 10 / 100 kHz) | -65 / -83 / -95 dBc/Hz |
| Output VSWR | 2.0:1 |
| Feedhorn diameter | 40 mm |
| Output impedance | 75 Ω |

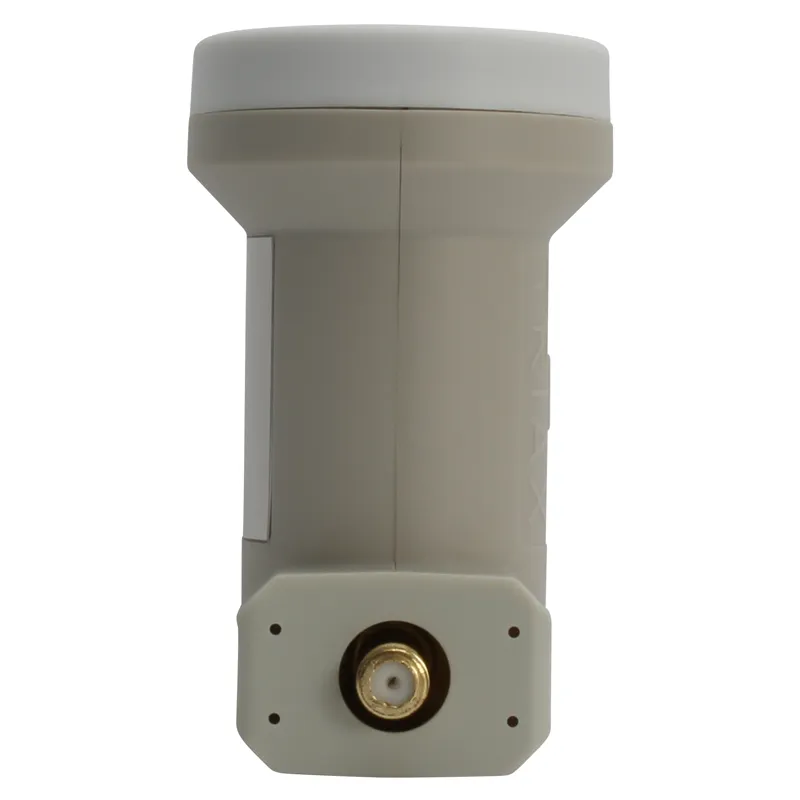

| Connector | F-female |
| Operating voltage | 11.5-14.0 V DC (vertical), 16.0-20.0 V DC (horizontal) |
| Current consumption | 80 mA |
| Operating temperature | -30 to +60 °C |
| Dimensions (H x W x D) | 95 x 64 x 57 mm |
| Net weight | 0.076 kg |
| Colour | RAL 9002 grey white |
| Model | TSI-100 Gold |
