Triax TQT3 Slim quattro LNB (4 outputs for multiswitch, PLL, 40 mm feed, slim housing)
Triax
Triax TQT3 Slim quattro LNB (4 outputs for multiswitch, PLL, 40 mm feed, slim housing)
Model: TQT3 Slim
Pricing for this product is provided on request.

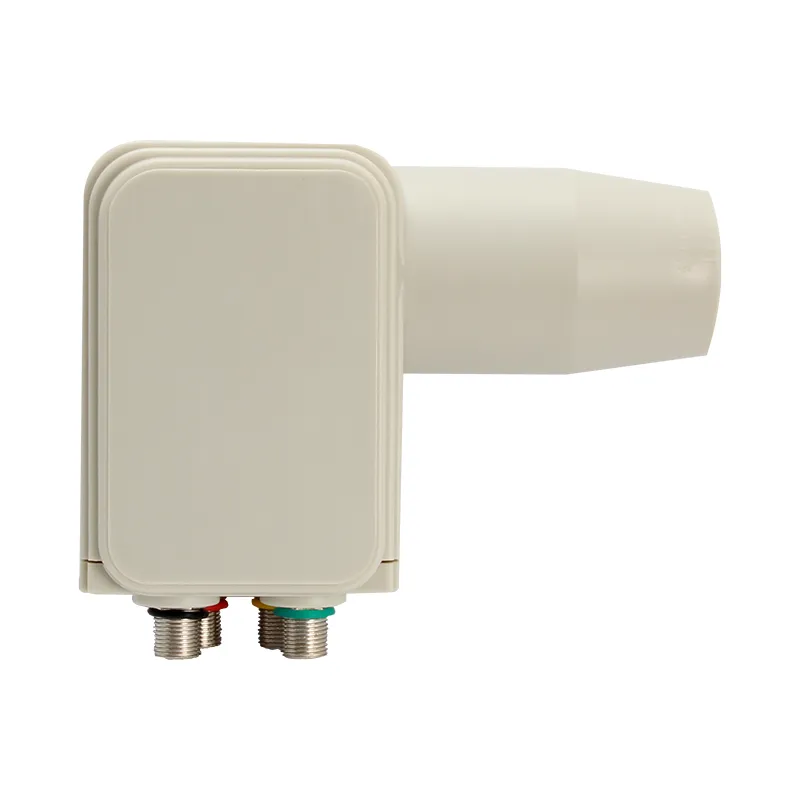

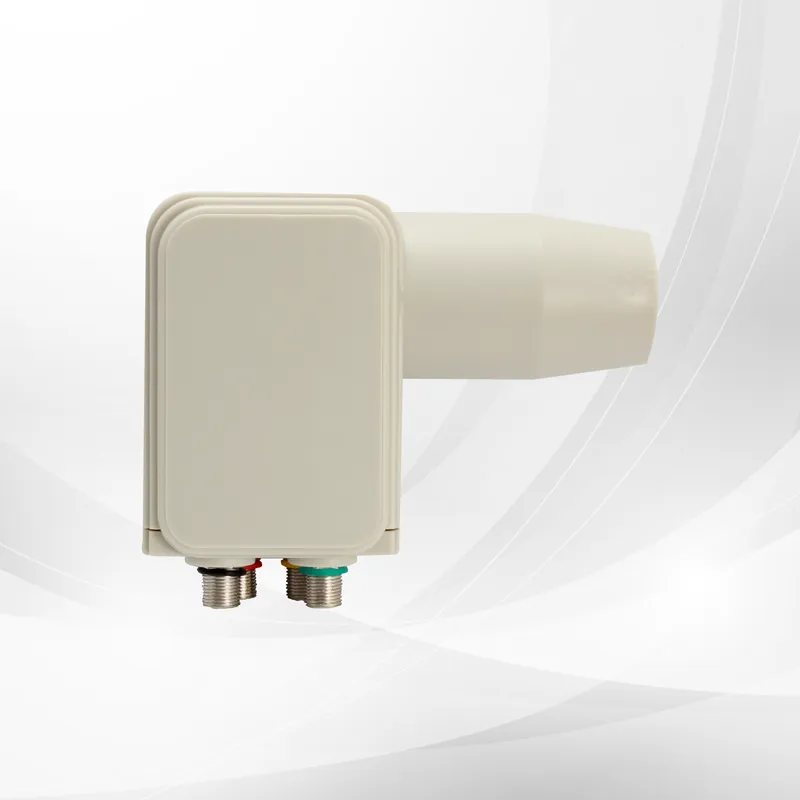

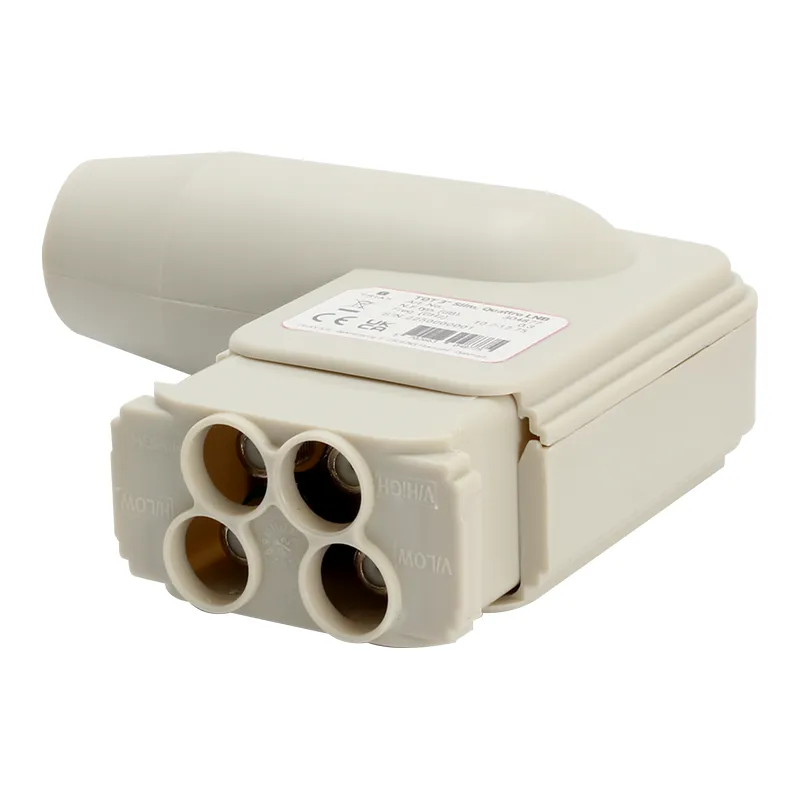

Request a quoteTriax TQT3 Slim is a quattro Ku-band LNB in a slim housing, with a PLL local oscillator covering 10.7-12.75 GHz in low and high bands (9.75 / 10.6 GHz local oscillators). It has a 40 mm feedhorn for offset dishes, F-female outputs and a weatherproof housing qualified by Triax for harsh environments.
Specifications
| Article number | 304877 |
| LNB type | Quattro |
| Input frequency | 10.7-11.7 GHz (low band), 11.7-12.75 GHz (high band) |
| Output frequency | 950-2150 MHz |
| L.O. frequency | 9.75 GHz (low band), 10.6 GHz (high band) |
| L.O. technology | PLL |
| L.O. temperature drift | ± 2 MHz |
| Conversion gain (typ.) | 63-68 dB |
| Noise figure (max.) | 0.3 dB |
| Image rejection (min.) | 40 dB |
| Phase noise (1 / 10 / 100 kHz) | -65 / -85 / -100 dBc/Hz |
| Output VSWR | 2.0:1 |
| Feedhorn diameter | 40 mm |
| Output impedance | 75 Ω |
| Connector | F-female |
| Operating voltage | 12-19 V DC |
| Current consumption | 215 mA |
| Operating temperature | -30 to +60 °C |
| Dimensions (H x W x D) | 121.5 x 97.6 x 47.1 mm |
| Net weight | 0.180 kg |
| Colour | RAL 9002 grey white |
| Model | TQT3 Slim |
