Triax TMS 5x8 C EB cascade multiswitch (1 satellite position, 5 inputs, 8 subscriber outputs, earth bars)
Triax
Triax TMS 5x8 C EB cascade multiswitch (1 satellite position, 5 inputs, 8 subscriber outputs, earth bars)
Model: TMS 5x8 C EB
Pricing for this product is provided on request.

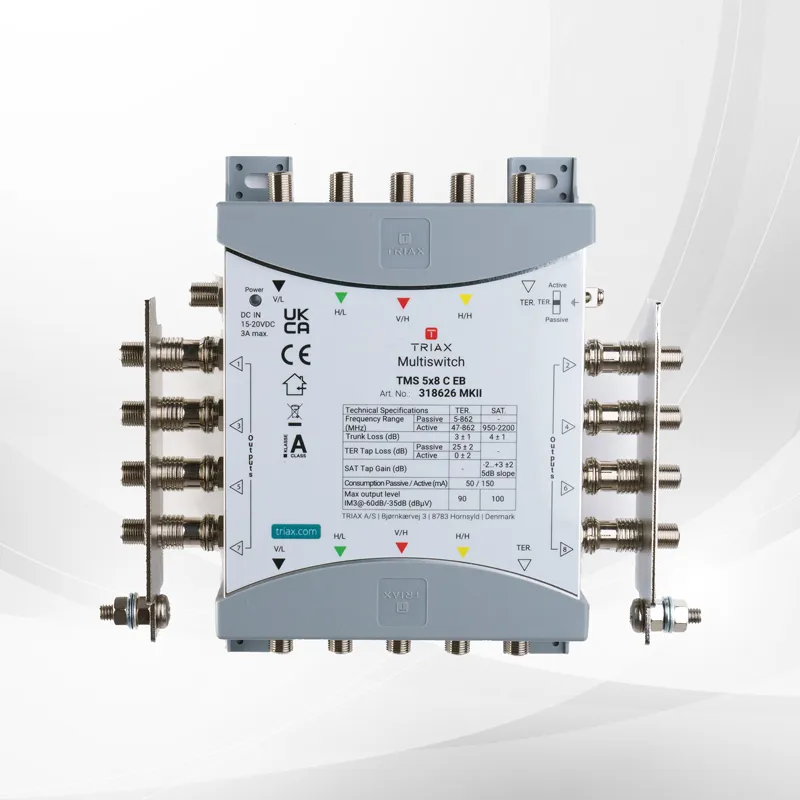

Request a quoteTriax TMS 5x8 C EB is a cascade multiswitch for one satellite position with 5 inputs, 5 trunk outputs and 8 subscriber outputs. It distributes satellite and terrestrial signals in small to large systems and is powered by the external Triax TMS PSU, either directly or via the SAT trunk line. It has equidistant F-connectors, colour-coded input labels, an LED power indicator, earth bars and a 6-year warranty.
Specifications
| Article number | 318626 |
| Satellite positions | 1 |
| Inputs (SAT + TER) | 5 |
| Trunk outputs | 5 |
| Subscriber outputs | 8 |
| Frequency range SAT | 950-2200 MHz |
| Frequency range TER | 47-862 MHz (active) / 5-862 MHz (passive), selectable by switch |
| Trunk loss (TER / SAT) | 3 ± 1 dB / 4 ± 1 dB |
| SAT tap gain (5 dB slope) | -2 to +3 ± 2 dB |
| Max. input level (TER / SAT) | 90 dBµV / 97 dBµV |
| Switching commands | DiSEqC 1.0 / 2.0, 13 V, 18 V, 13 V 22 kHz, 18 V 22 kHz |
| Operating voltage | 15-20 V DC |
| Operating temperature | -20 to +55 °C |
| Dimensions (H x W x D) | 175 x 140 x 65 mm |
| Weight | 485 g |
| Model | TMS 5x8 C EB |
