Triax TDS PRO 80LG 80 cm offset galvanized steel satellite dish (RAL 7035 light grey, single box)
Triax
Triax TDS PRO 80LG 80 cm offset galvanized steel satellite dish (RAL 7035 light grey, single box)
Model: TDS PRO 80LG
Pricing for this product is provided on request.

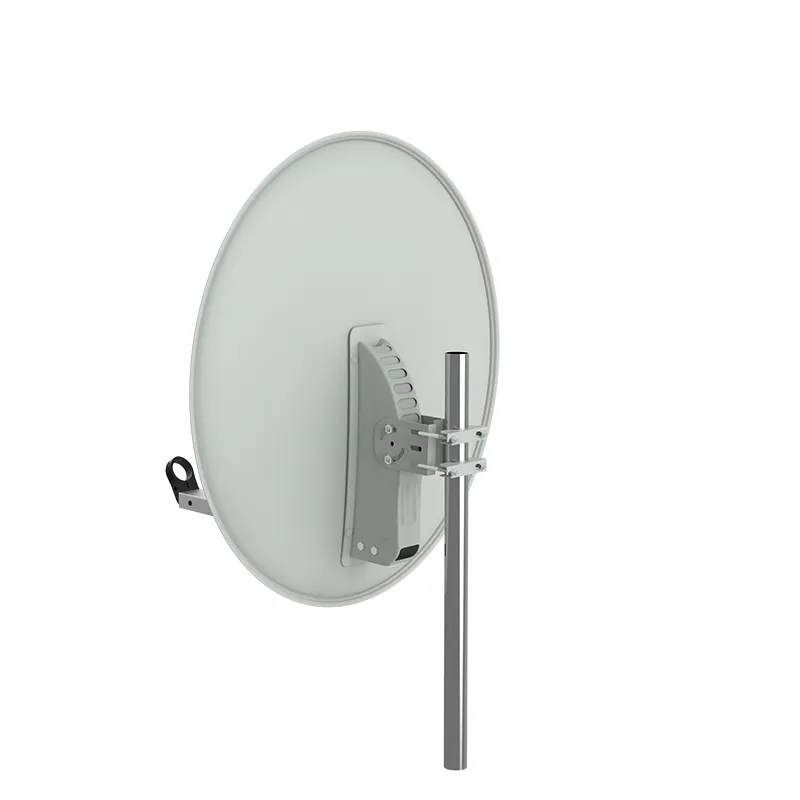

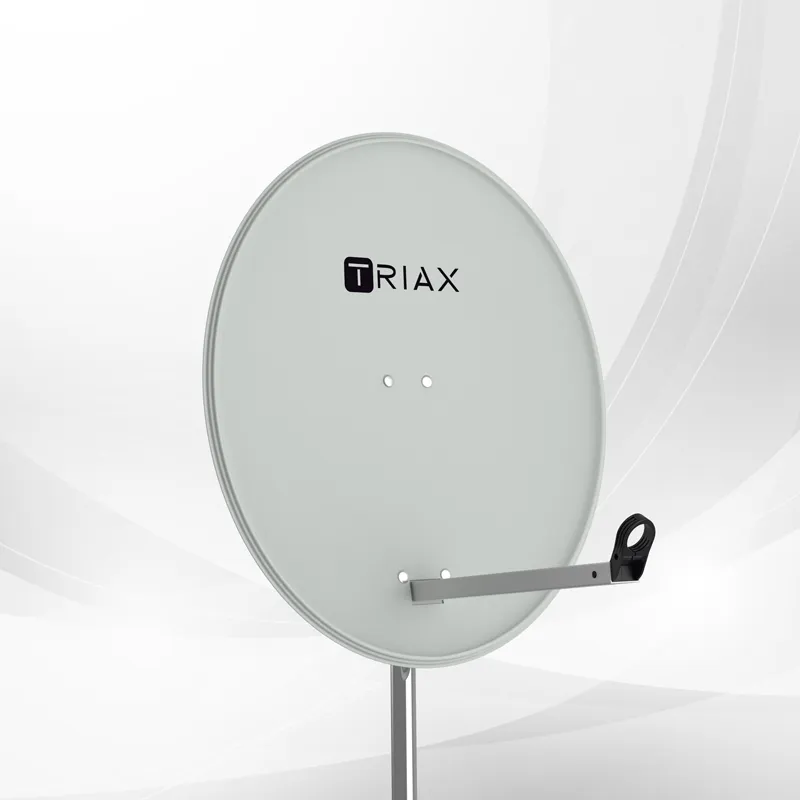

Request a quoteTriax TDS PRO 80LG is a 80 cm offset satellite dish with a galvanized steel reflector in RAL 7035 light grey and an anti-corrosion polyester powder coating. It has an aluminium LNB arm with cable pass-through, a galvanized steel back mount with azimuth/elevation adjustment, a UV-protected plastic LNB holder and two mast clamps for poles up to 60 mm diameter. It is supplied in individual packaging.
Specifications
| Article number | 123801 |
| Reflector type | Offset |
| Reception frequency | 10.7-12.75 GHz |
| Antenna gain (Ku-band) | 37-38 dBi |
| Material | Galvanized steel |
| Reflector thickness | 0.7 mm |
| Finish coat | Polyester powder coating |
| Colour | Light grey RAL 7035 |
| Small axis / long axis diameter | 75 (79 external) / 83 (85 external) cm |
| F/D ratio | 0.6 |
| LNB arm | Aluminium |
| LNB holder | Plastic, UV protected, 40 mm LNB |
| Bracket | Galvanized steel, polyester powder coating |
| Azimuth / elevation alignment | 0-360° / 0-80° |
| Pole diameter | 60 mm max. |
| U bolts | 2 |
| Operational temperature | -40 to +60 °C |
| Operational wind / windload | 90 km/h / 220 N |
| Survival wind / windload | 144 km/h / 560 N |
| Packaging | Single box |
| Model | TDS PRO 80LG |
Need installation or a bulk quote? Talk to our team.
