Triax TDS PRO 65A 65 cm offset galvanized steel satellite dish (RAL 7016 anthracite grey, single box)
Triax
Triax TDS PRO 65A 65 cm offset galvanized steel satellite dish (RAL 7016 anthracite grey, single box)
Model: TDS PRO 65A
Pricing for this product is provided on request.

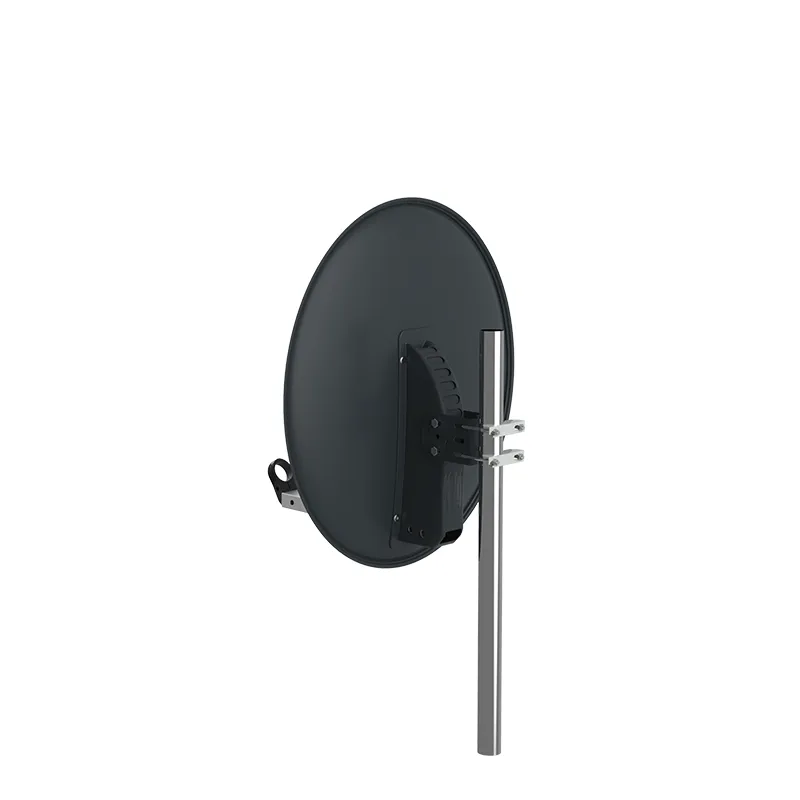

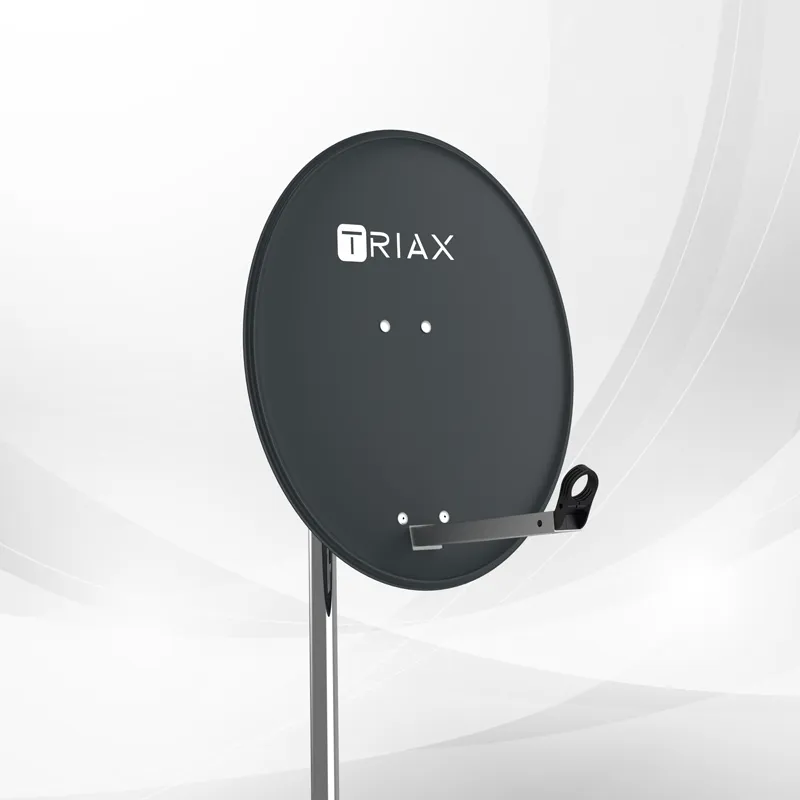

Request a quoteTriax TDS PRO 65A is a 65 cm offset satellite dish with a galvanized steel reflector in RAL 7016 anthracite grey and an anti-corrosion polyester powder coating. It has an aluminium LNB arm with cable pass-through, a galvanized steel back mount with azimuth/elevation adjustment, a UV-protected plastic LNB holder and two mast clamps for poles up to 60 mm diameter. It is supplied in individual packaging.
Specifications
| Article number | 123650 |
| Reflector type | Offset |
| Reception frequency | 10.7-12.75 GHz |
| Antenna gain (Ku-band) | 35-37 dBi |
| Material | Galvanized steel |
| Reflector thickness | 0.6 mm |
| Finish coat | Polyester powder coating |
| Colour | Anthracite grey RAL 7016 |
| Small axis / long axis diameter | 60 (62 external) / 66 (68 external) cm |
| F/D ratio | 0.6 |
| LNB arm | Aluminium |
| LNB holder | Plastic, UV protected, 40 mm LNB |
| Bracket | Galvanized steel, polyester powder coating |
| Azimuth / elevation alignment | 0-360° / 0-80° |
| Pole diameter | 60 mm max. |
| Operational temperature | -40 to +60 °C |
| Operational wind / windload | 90 km/h / 140 N |
| Survival wind / windload | 144 km/h / 360 N |
| Packaging | Single box |
| Model | TDS PRO 65A |
