Triax TDS 115LG 113 cm offset galvanized steel satellite dish (RAL 7035, single box, LNB not included)
Triax
Triax TDS 115LG 113 cm offset galvanized steel satellite dish (RAL 7035, single box, LNB not included)
Model: TDS 115LG
Pricing for this product is provided on request.

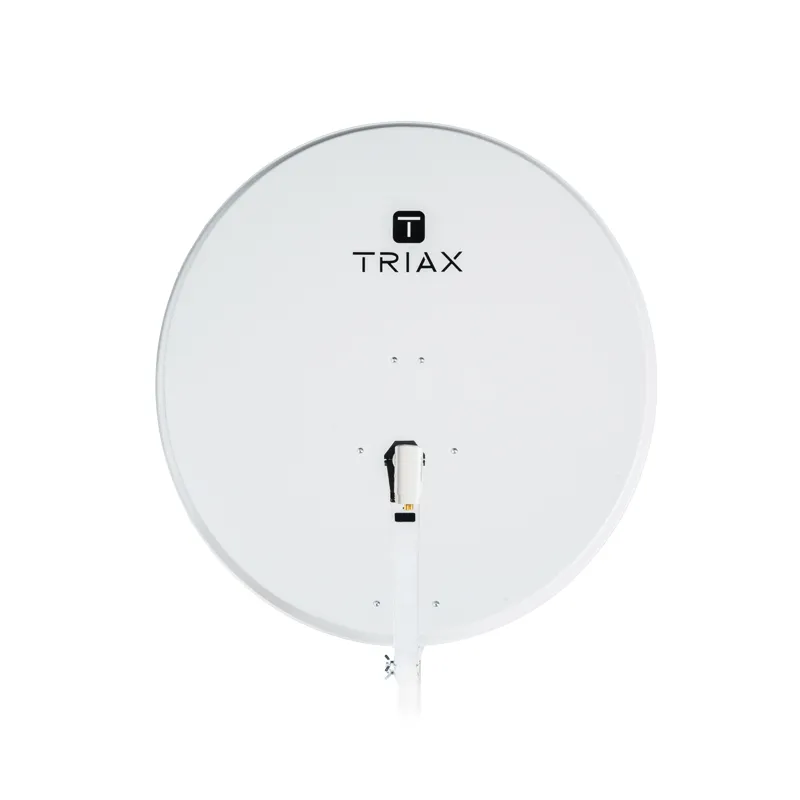

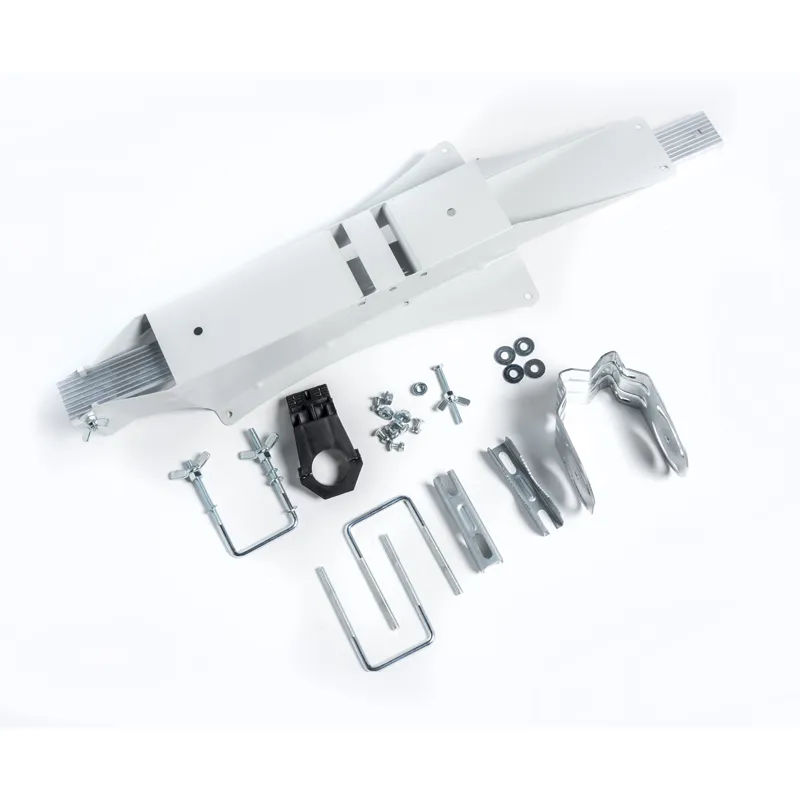

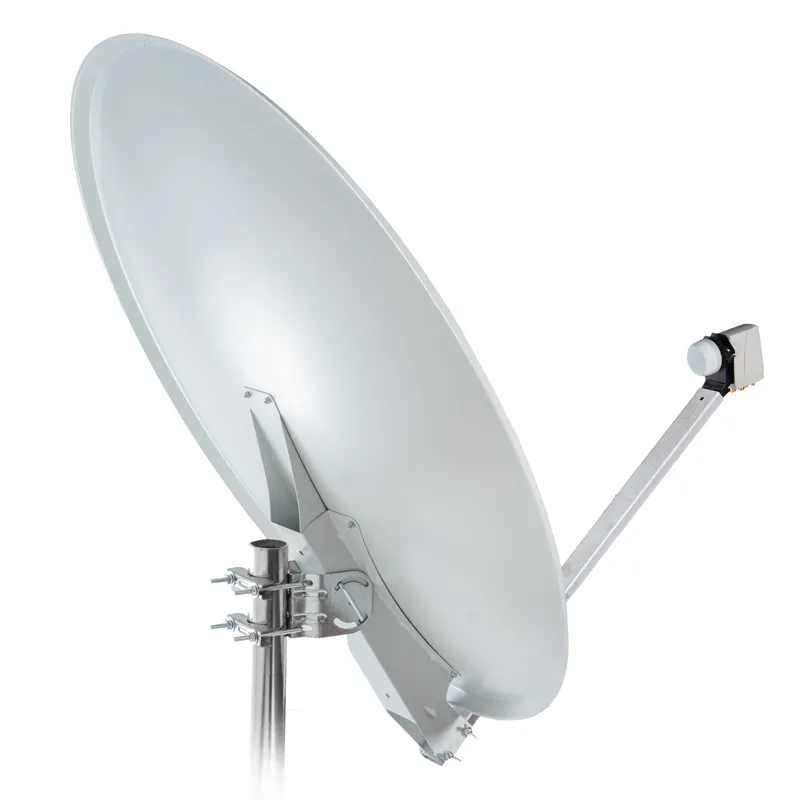

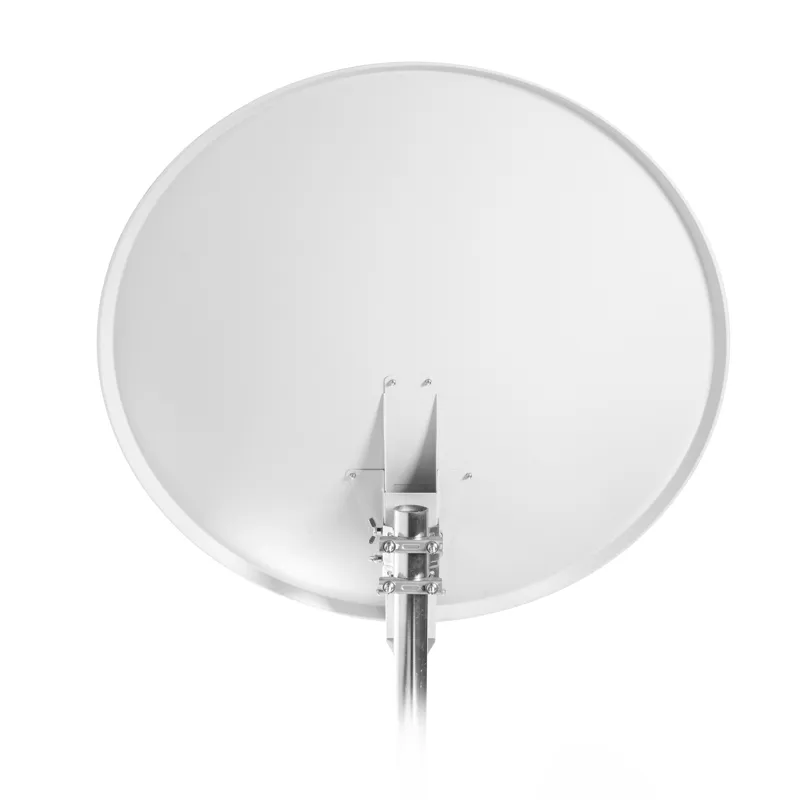

Request a quoteTriax TDS 115LG is a 113 cm offset satellite dish with a galvanized steel reflector in RAL 7035, an aluminium alloy LNB arm with cable pass-through and a galvanized steel back mount with azimuth/elevation adjustment. It covers the 10.7-12.75 GHz Ku-band and mounts on 30-60 mm poles using two mast clamps. The LNB is not included and is sold separately. Triax lists it as supplied in its MEA region only.
Specifications
| Article number | 120523 |
| Reflector type | Offset |
| Reflector size | 1130 x 1040 mm |
| Main material | Galvanized steel |
| Colour | RAL 7035 |
| Frequency range | 10.7-12.75 GHz |
| Gain | 40.2 dB at 10.75 GHz, 41.0 dB at 11.75 GHz, 41.6 dB at 12.75 GHz |
| Beamwidth at 12.75 GHz | 1.60° |
| Offset angle | 23° |
| F/D ratio | 0.66 |
| Cross polarisation | > 28 dB |
| Efficiency | > 70 % |
| Elevation angle | 15-57° (max. 38.5° with passing pole) |
| LNB arm | Aluminium alloy 50 x 20 mm |
| Mast bracket | Galvanized steel, accepts 30-60 mm pole |
| LNB holder | Plastic, 40 mm LNB |
| Windload | 132 kg at 120 km/h |
| Total weight | 9.0 kg |
| Model | TDS 115LG |
