ThinKom ThinPack Ku100 portable Ku-band flat-panel satcom antenna (8.1 lb, 40 to 45 cm dish equivalent)
ThinKom
ThinKom ThinPack Ku100 portable Ku-band flat-panel satcom antenna (8.1 lb, 40 to 45 cm dish equivalent)
Model: ThinPack Ku100
Pricing for this product is provided on request.

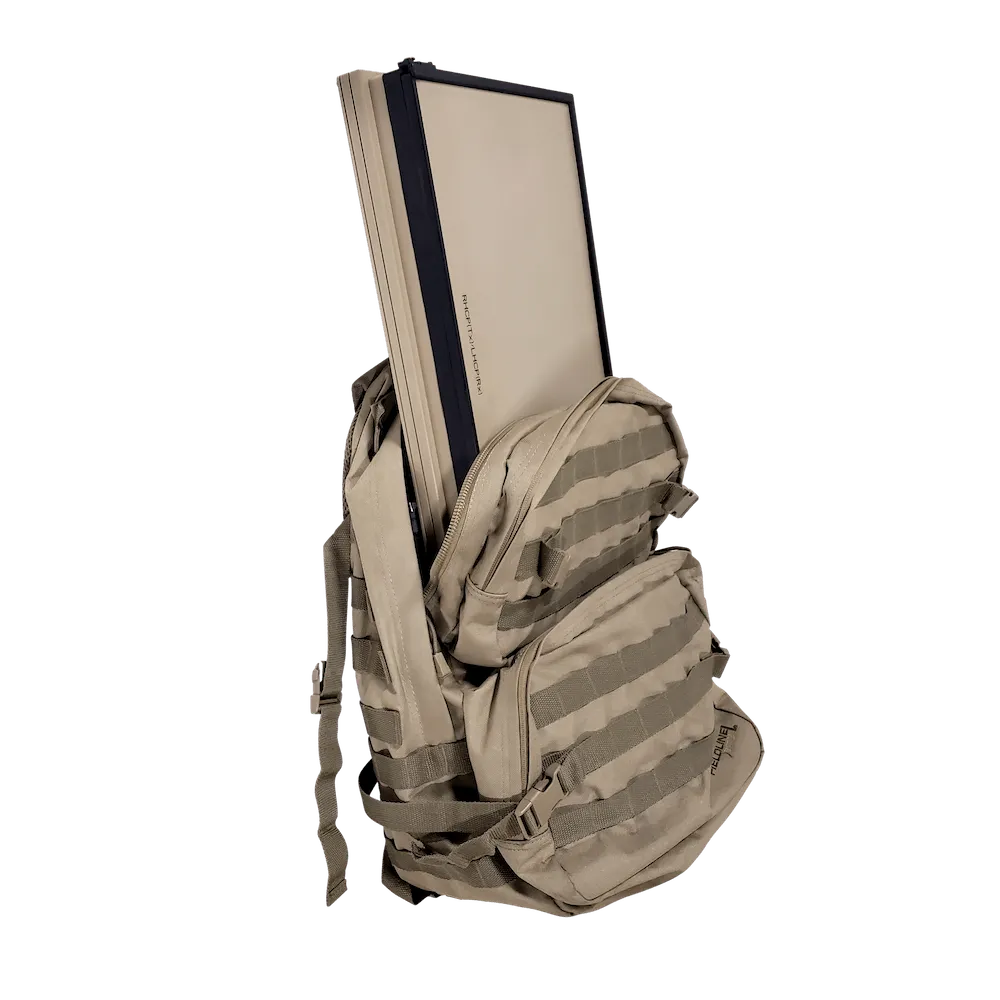

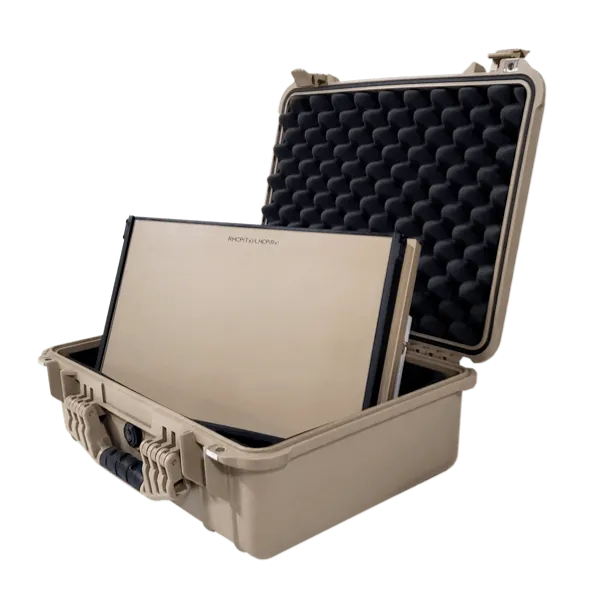

Request a quoteThe ThinPack Ku100 is a portable Ku-band flat-panel antenna from ThinKom's ThinPack family, built on its patented Continuous Transverse Stub (CTS) technology. It is network- and modem-agnostic, compatible with wide-beam and HTS services and needs no assembly. ThinKom quotes up to 20 Mbps down and 10 Mbps up for the ThinPack range, with an IATA-compliant airline carry-on case available.
Specifications
| Band | Ku-band: Tx 13.75 to 14.5 GHz, Rx 10.7 to 12.75 GHz |
| G/T | 9.0 dB/K (at 12.25 GHz) |
| EIRP | 39.5 dBW (at 14.25 GHz with 6 W BUC) |
| Parabolic dish equivalent | 40 to 45 cm |
| Polarization | Linear (manually aligned) |
| Weight | 8.1 lb |
| Dimensions | 16.1 x 10.1 x 3.4 in (L x W x H) |
| Operating temperature | -40 °C to +60 °C |
| Throughput (ThinPack range) | Up to 20 Mbps down x 10 Mbps up |
| Environmental | MIL-STD-810 |
| Model | ThinPack Ku100 |
