ThinKom ThinPack Ka100 portable Ka-band flat-panel satcom antenna (9.3 lb, G/T 13 dB/K, 60 to 65 cm dish equivalent)
ThinKom
ThinKom ThinPack Ka100 portable Ka-band flat-panel satcom antenna (9.3 lb, G/T 13 dB/K, 60 to 65 cm dish equivalent)
Model: ThinPack Ka100
Pricing for this product is provided on request.

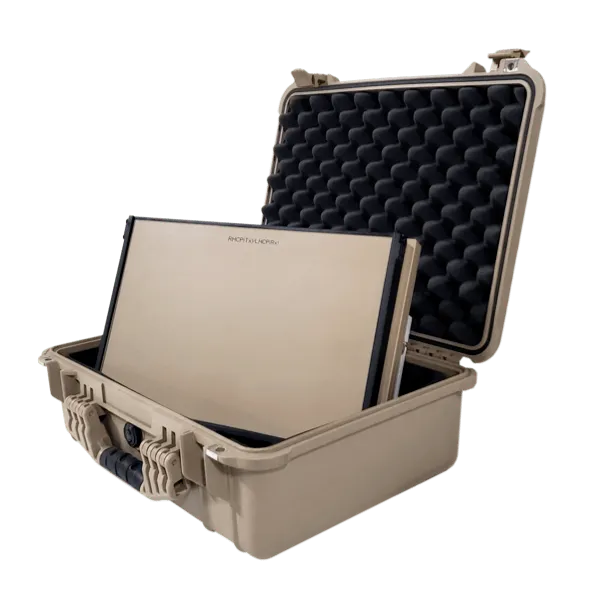

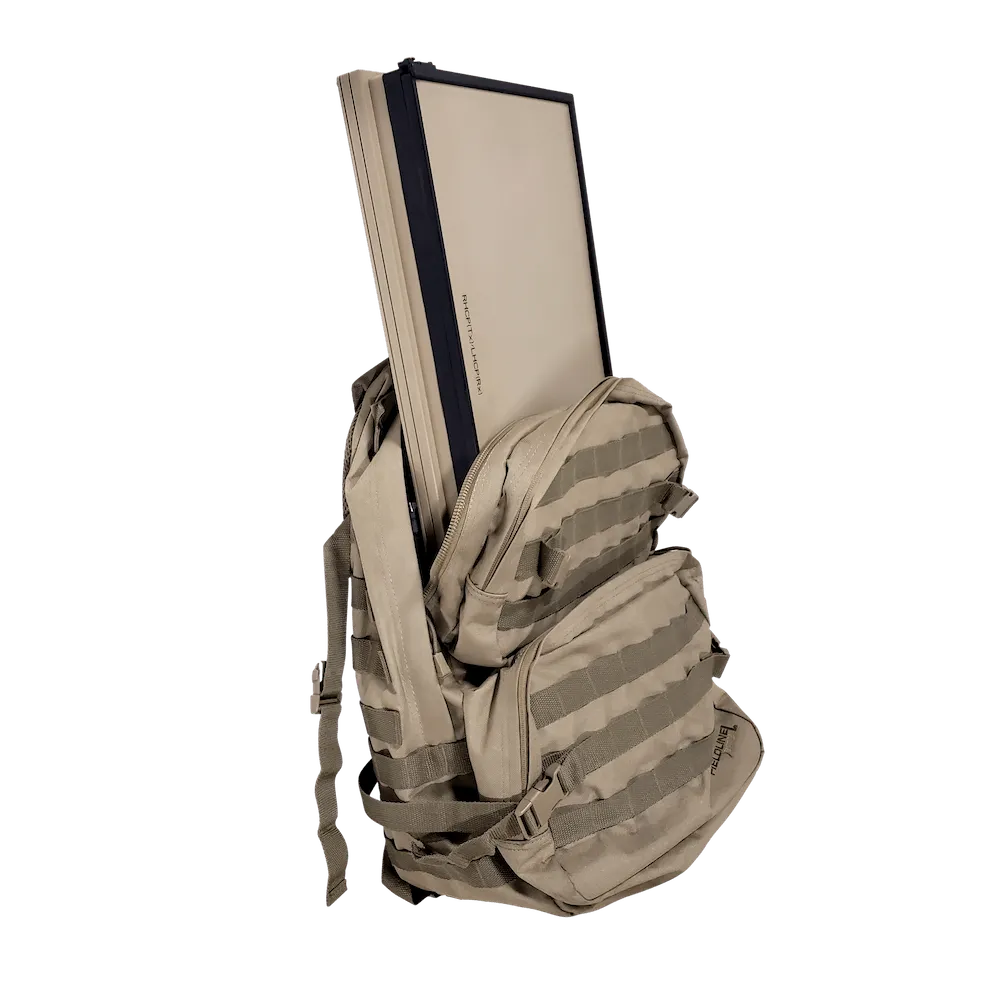

Request a quoteThe ThinPack Ka100 is the Ka-band member of ThinKom's ThinPack portable flat-panel antenna family, based on the patented CTS technology. It uses switchable circular polarization, is network- and modem-agnostic and works with wide-beam and HTS Ka-band services. ThinKom quotes up to 20 Mbps down and 10 Mbps up for the ThinPack range.
Specifications
| Band | Ka-band: Tx 28.1 to 31.0 GHz, Rx 18.7 to 21.2 GHz |
| G/T | 13 dB/K (at 20.2 GHz) |
| EIRP | 46 dBW (at 30 GHz with 5 W BUC) |
| Parabolic dish equivalent | 60 to 65 cm |
| Polarization | Switchable circular (axial ratio under 2.0 dB typical) |
| Weight | 9.3 lb |
| Dimensions | 16.8 x 11.5 x 2.8 in (L x W x H) |
| Operating temperature | -40 °C to +60 °C |
| Throughput (ThinPack range) | Up to 20 Mbps down x 10 Mbps up |
| Environmental | MIL-STD-810 |
| Model | ThinPack Ka100 |
