ThinKom ThinAir Ka2517 Ka-band multi-orbit aircraft antenna for inflight broadband (up to 800/200 Mbps)
ThinKom
ThinKom ThinAir Ka2517 Ka-band multi-orbit aircraft antenna for inflight broadband (up to 800/200 Mbps)
Model: ThinAir Ka2517
Pricing for this product is provided on request.

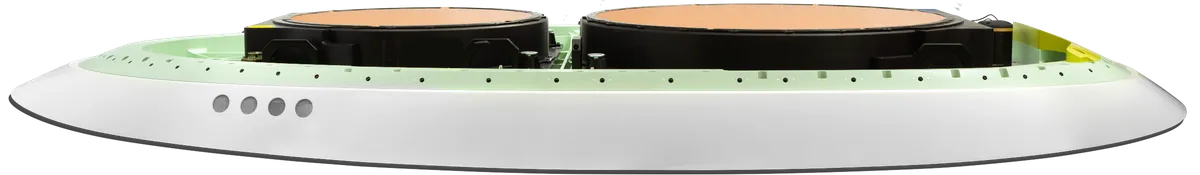

Request a quoteThe ThinAir Ka2517 is ThinKom's Ka-band VICTS phased-array antenna for global inflight broadband on mainline aircraft. It operates on GSO and non-GSO networks with pole-to-pole coverage, high beam agility and a low profile. This is an aircraft antenna for airlines and integrators, not a land or maritime terminal.
Specifications
| Band | Ka-band: Tx 27.5 to 30 GHz, Rx 17.3 to 20.2 GHz |
| Constellations | LEO / MEO / GEO / HEO |
| Data rates | Up to 800 Mbps down and 200 Mbps up (network dependent) |
| Azimuth / elevation | 360° continuous / +7.5° to +90° |
| G/T | 18.5 dB/K peak (13.5 dB/K at 20° elevation) |
| EIRP (Psat) | 55.5 dBW (51 dBW at 20° elevation, 80 W Psat SSPB) |
| OAE dimensions | 88 x 43 x 7 in |
| System weight | 294 lb (133 kg) |
| Average system power | 274 W (24 W OAE) |
| Operating temperature | -55 °C to +74 °C external |
| Environmental | RTCA/DO-160G |
| Model | ThinAir Ka2517 |
Need installation or a bulk quote? Talk to our team.
