Skyware Global Type 183 1.8 m Extended Ku-band Rx/Tx SFL Class III Antenna
Skyware Global
Skyware Global Type 183 1.8 m Extended Ku-band Rx/Tx SFL Class III Antenna
Model: Type 183 1.8 m Extended Ku-band Rx/Tx SFL Class III
Pricing for this product is provided on request.

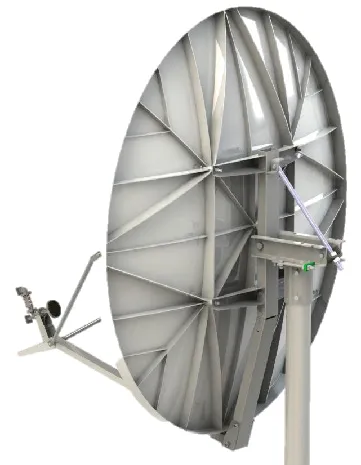

Request a quoteCommercial 1.8 m one-piece SMC offset reflector for extended Ku-band (12.75-14.50 GHz transmit, 10.70-11.70 GHz receive), with a galvanised precision elevation-over-azimuth mount for 114 mm masts. The Class III mount carries 11 kg (25 lb) of RF electronics.
Specifications
| Aperture | 1.8 m |
| Tx frequency | 12.75-14.50 GHz |
| Rx frequency | 10.70-11.70 GHz |
| Polarization | Linear, orthogonal |
| Gain Tx | 46.8 dBi @ 14.3 GHz |
| Gain Rx | 44.7 dBi @ 11.2 GHz |
| 3 dB beamwidth | Tx 0.8 deg; Rx 1.1 deg |
| Feed interface | WR75 flat flange (Tx and Rx) |
| Reflector | Glass fiber reinforced composite, one-piece offset feed prime focus |
| Mount | Elevation over azimuth; elevation 10-90 deg continuous; 114 mm (4.50 in) mast |
| RF electronics limit (Class III) | 11 kg (25 lb) for LNB and BUC |
| Weight | Approx. 50.52 kg (not including mast) |
| Wind loading | Operational 80 km/h (50 mph); functional survival 128 km/h (80 mph); ultimate survival 200 km/h (125 mph) |
| Temperature | Operational -40 to +55 C; survival -50 to +80 C |
| Model | Type 183 1.8 m Extended Ku-band Rx/Tx SFL Class III |
