Skyware Global Type 123 1.2 m Ku-band Rx/Tx Class II Offset Antenna (62-1236201)
Skyware Global

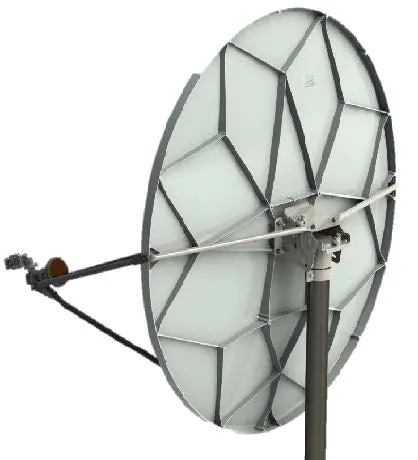

Skyware Global Type 123 1.2 m Ku-band Rx/Tx Class II Offset Antenna (62-1236201)
Model: Type 123 1.2 m Ku-band Rx/Tx Class II (62-1236201)
Pricing for this product is provided on request.
Request a quoteRugged commercial 1.2 m thermoset-moulded offset reflector with long focal-length optics for low cross-pol, for Ku-band transmit and receive. The Class II mount is designed for typical 2 W and 4 W Ku-band BUCs and is type approved for use on Intelsat and Eutelsat systems.
Specifications
| Antenna model | 62-1236201 |
| Type approvals | Intelsat Standard G (IESS 601) code IA077A00; Eutelsat VSAT code EA-V051 |
| Aperture | 1.2 m (48 in) |
| Tx frequency | 13.75-14.50 GHz |
| Rx frequency | 10.70-12.75 GHz |
| Polarization | Linear, orthogonal |
| Gain Tx | 43.3 dBi @ 14.3 GHz |
| Gain Rx | 41.8 dBi @ 12.0 GHz |
| 3 dB beamwidth | Tx 1.2 deg; Rx 1.5 deg |
| Feed interface | WR75 flat flange (Tx and Rx) |
| Mount | Elevation over azimuth; elevation 7-84 deg, azimuth 360 deg continuous (+/-20 deg fine); 73-76 mm (2.88-3.00 in) mast |
| RF electronics limit (Class II) | 3.6 kg (8 lb) for BUC and LNB |
| Wind loading | Operational 50 mph (80 km/h); survival 125 mph (200 km/h) |
| Temperature | -50 to +80 C |
| Model | Type 123 1.2 m Ku-band Rx/Tx Class II (62-1236201) |
Need installation or a bulk quote? Talk to our team.
