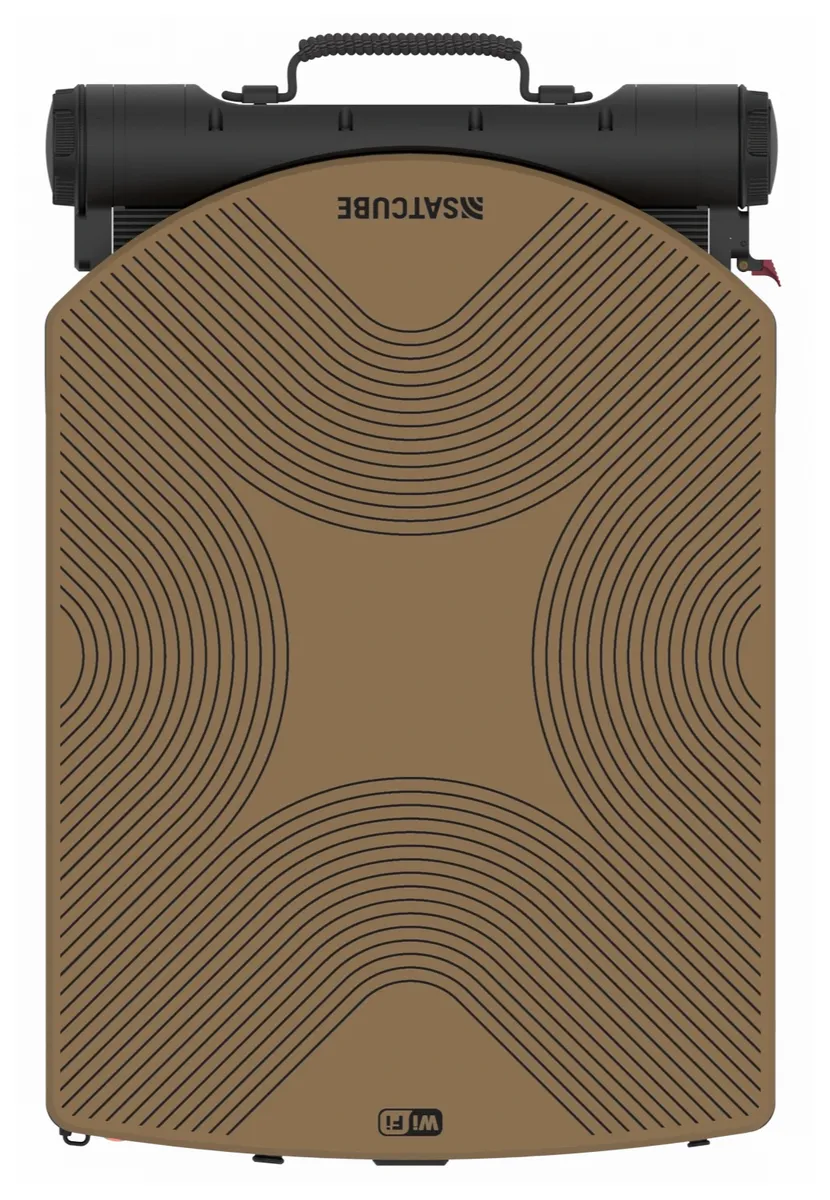

Satcube Ku Portable Ku-band Satellite Terminal, Wi-Fi hotspot, up to 85/20 Mbps via HTS, 8 kg, IP65
Satcube
Satcube Ku Portable Ku-band Satellite Terminal, Wi-Fi hotspot, up to 85/20 Mbps via HTS, 8 kg, IP65
Model: Ku
Pricing for this product is provided on request.
Request a quoteBackpack-portable Ku-band VSAT terminal with a flat-panel antenna and internal modem that creates a Wi-Fi hotspot, going from transport case to deployed terminal in under a minute. It runs on its internal battery or on external 24 VDC or 100-240 VAC power, is IP65 rated (IP67 optional) and works without GNSS. Satcube quotes data rates up to 85/20 Mbps over HTS capacity.
Specifications
| Band | Ku-band; Tx 13.75-14.50 GHz, Rx 10.95-12.75 GHz, linear polarisation |
| Data rate | Up to 85/20 Mbps via HTS |
| EIRP | 46 dBW |
| G/T | 9 dB/K |
| Weight | 8 kg |
| Dimensions | 470 x 300 x 55 mm |
| Environmental rating | IP65 (IP67 optional) |
| Operating temperature | -35 °C to +60 °C |
| Power | 24 VDC, 130 W; AC/DC 100-240 VAC, 47-63 Hz; battery operated |
| Satellite modem | iDirect IQ 200, Newtec MDM2510 or UHP 210 |
| Approvals | CE (RED directive, EN 301 428), FCC |
| Features | Wi-Fi hotspot with graphical interface, GNSS-independent, dark mode and PIN lock |
| Model | Ku |
