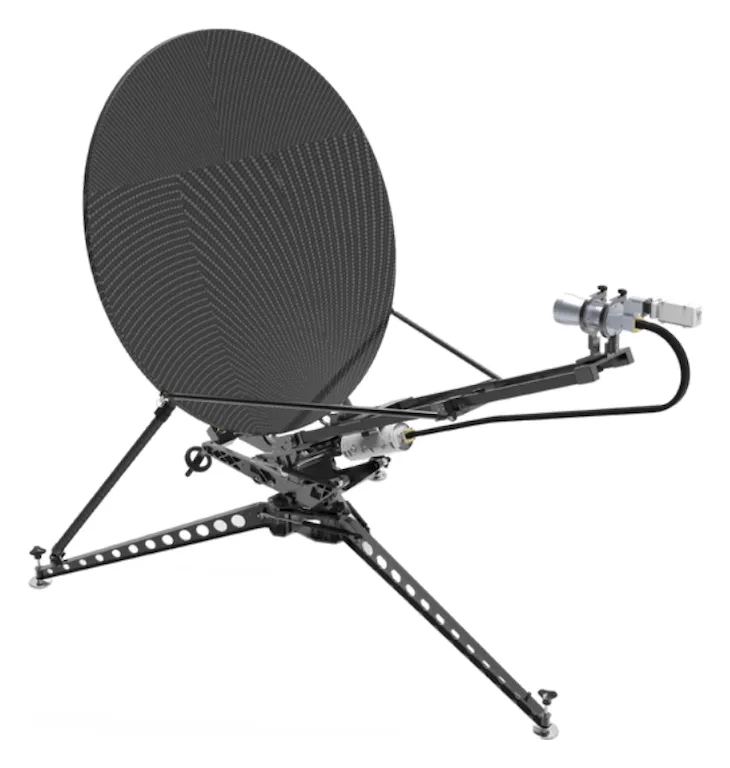

Requtech PICO 120m 1.2 m X-, Ku- and Ka-Band Manual Flyaway Terminal, sold through Gilat (42 kg system)
Requtech
Requtech PICO 120m 1.2 m X-, Ku- and Ka-Band Manual Flyaway Terminal, sold through Gilat (42 kg system)
Model: PICO 120m
Pricing for this product is provided on request.
Request a quoteThe PICO 120m is the manually pointed version of the 1.2 m fully integrated flyaway terminal from Requtech AB of Sweden, covering X-, Ku- and Ka-band with tool-less assembly. A RAPU (Requtech Assisted Pointing Unit) provides the controller, beacon receiver, sensors and the Mercury app for rapid satellite acquisition. The terminal is Eutelsat characterized for Ku-band and designed to MIL-STD-810. Gilat, a licensed reseller of the PICO 120, lists it under Portables, a category it describes as serving military, emergency and remote operations.
Specifications
| Reflector | 1.2 m, X-, Ku- and Ka-band; rapid deployment, tool-less assembly |
| Pointing | Manual pointing assisted by RAPU with ACU, beacon receiver, control, monitor and sensor kit and Mercury app (Android over WiFi/Bluetooth, or web interface over Ethernet); OpenAMIP, OpenBMIP ready |
| Ku-band | Tx 13.75-14.5 GHz, Rx 10.7-12.75 GHz; linear; EIRP 55.4 dBW (20 W BUC) or 53.3 dBW (12 W BUC); Tx gain 43.5 dBi, Rx gain 42.8 dBi; G/T 21.4 dB/K; WR75 |
| Ka-band | Tx 27.5-30.0 GHz or 29-31 GHz, Rx 17.7-20.2 GHz or 19.2-21.2 GHz; circular RHCP/LHCP; EIRP 65.0 dBW (40 W BUC), 62.0 dBW (20 W) or 59.8 dBW (12 W); Tx gain 49.6 dBi, Rx gain 46.5 dBi; G/T 24.9 dB/K; WR28/WR42 |
| X-band | Tx 7.9-8.4 GHz, Rx 7.25-7.75 GHz; circular RHCP/LHCP; EIRP 51.7 dBW (25 W BUC) or 55.1 dBW (55 W BUC); Tx gain 38.7 dBi, Rx gain 38.0 dBi; G/T 17.8 dB/K; WR112 |
| Mechanical range | Azimuth adjustment ±100° with 0.1° pointing accuracy; elevation 0-90° with 0.1° pointing accuracy; pointing stability ≤ 0.16° |
| Time to acquisition | Typically 5 minutes |
| Assembly time | Under 20 minutes |
| Operating conditions | Wind 45 km/h (gusts 75 km/h); -30 to +52 °C operating, -40 to +60 °C survival; humidity 100% with condensation; rain over 100 mm/hr; suitable for marine and industrial corrosion environments |
| Standards | Designed to meet MIL-STD-810G; ITU-R S.465 and Eutelsat ESOG120 requirements; Eutelsat characterized (Ku-band) |
| Weight | 42.3 kg total system including 55 W BUC, LNB and RAPU; soft or hard transport cases |
| Model | PICO 120m |
