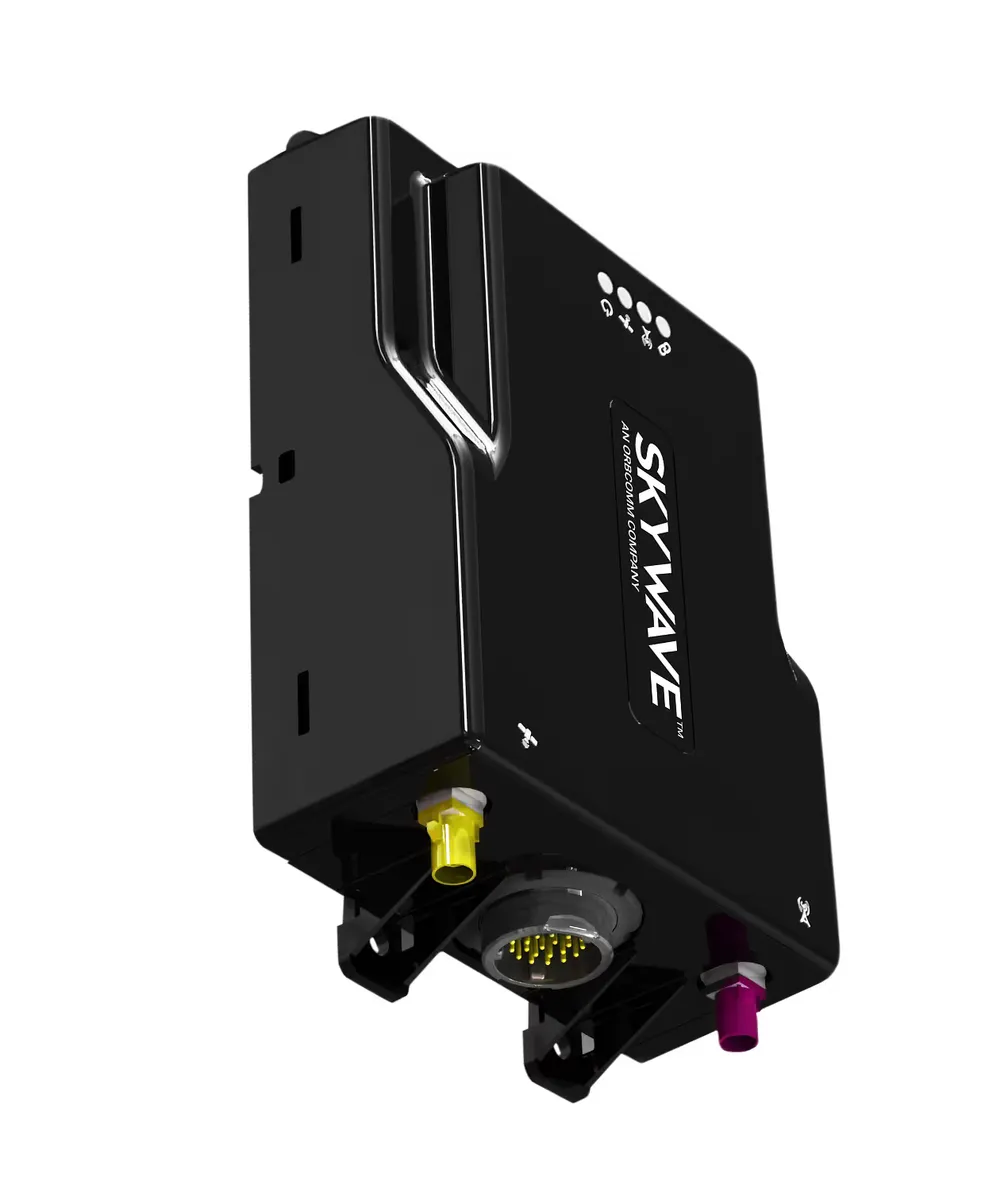

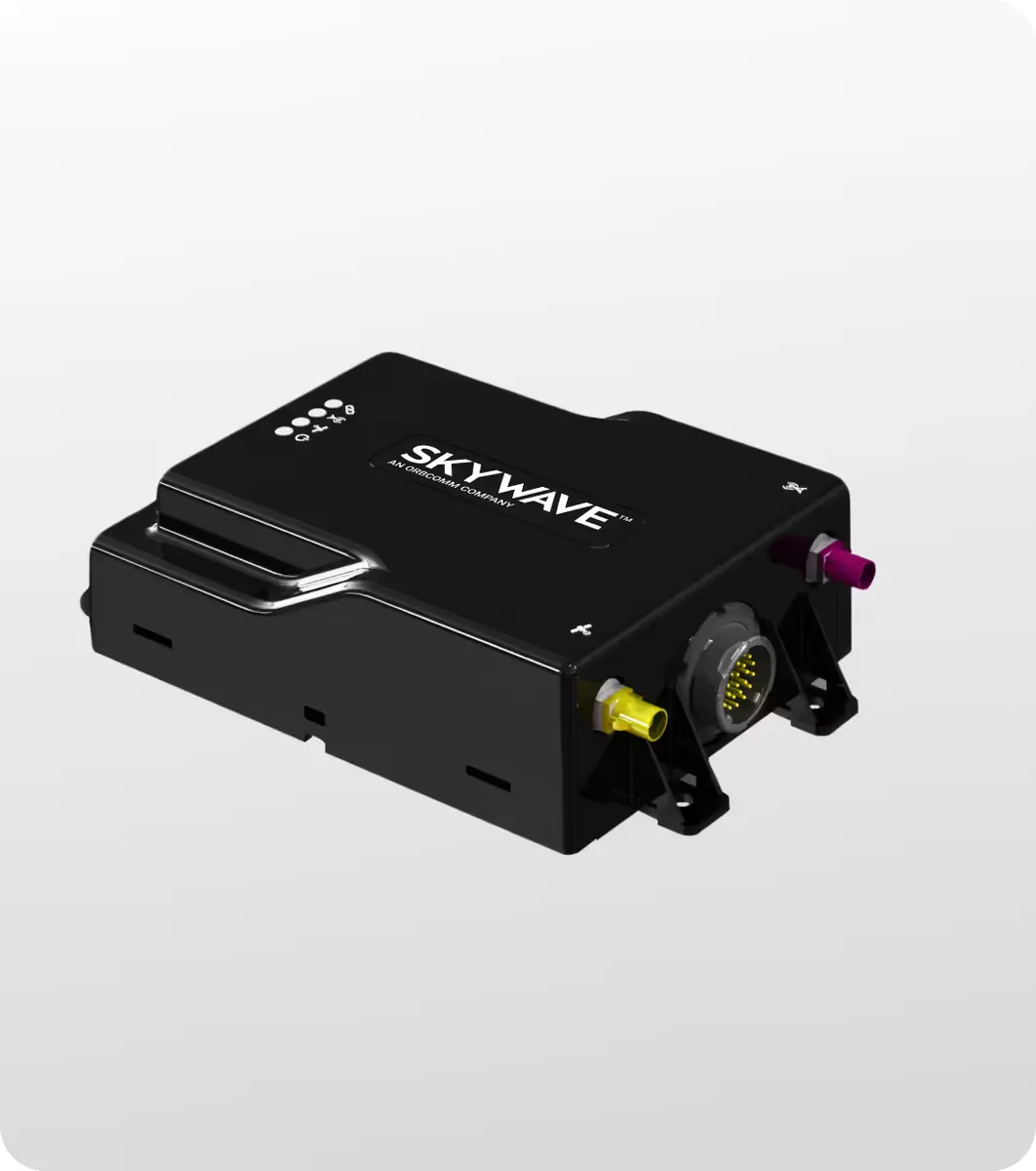

SKYWAVE ST 9100 Hybrid Satellite-Cellular Programmable Terminal (OGx/IsatData Pro + LTE, IP67, CAN, Bluetooth)
ORBCOMM
SKYWAVE ST 9100 Hybrid Satellite-Cellular Programmable Terminal (OGx/IsatData Pro + LTE, IP67, CAN, Bluetooth)
Model: ST 9100
Pricing for this product is provided on request.
Request a quoteProgrammable hybrid terminal from SKYWAVE, an ORBCOMM company, that uses cellular where available and switches to satellite (OGx or IsatData Pro) to save airtime cost. It has analog and digital I/O, two RS-232 ports, RS-485/J1708, two CAN bus ports, Bluetooth, a 3-axis accelerometer and a backup battery, and runs Lua applications.
Specifications
| Network | Two-way global satellite (OGx or IsatData Pro) plus cellular (Cat 4 LTE, UMTS, GSM in global model) |
| Maximum message size | OGx: 1 MB from-mobile and to-mobile; IsatData Pro: 6.4 kB from-mobile, 10 kB to-mobile |
| Interfaces | 4 configurable I/O, 2 dedicated outputs, 2 x RS-232, 1 x RS-485/J1708, 2 x CAN bus, 1-Wire |
| Wireless | Bluetooth 5.0 low energy, two embedded SIMs plus one user-accessible SIM |
| Backup battery | Lithium-ion 2,000 mAh, over 48 hours of operation at 1-minute cellular or 60-minute satellite reporting |
| Programming | Lua scripting with SDK, geofencing for 128 polygons, data logger for 50,000 position reports |
| Power | 9-32 V DC |
| Dimensions | 148 x 113 x 47 mm |
| Ingress protection | IP67 (transceiver and satellite/GPS antenna) |
| Operating temperature | -40 to +85 °C (transceiver and antenna) |
| Model | ST 9100 |
