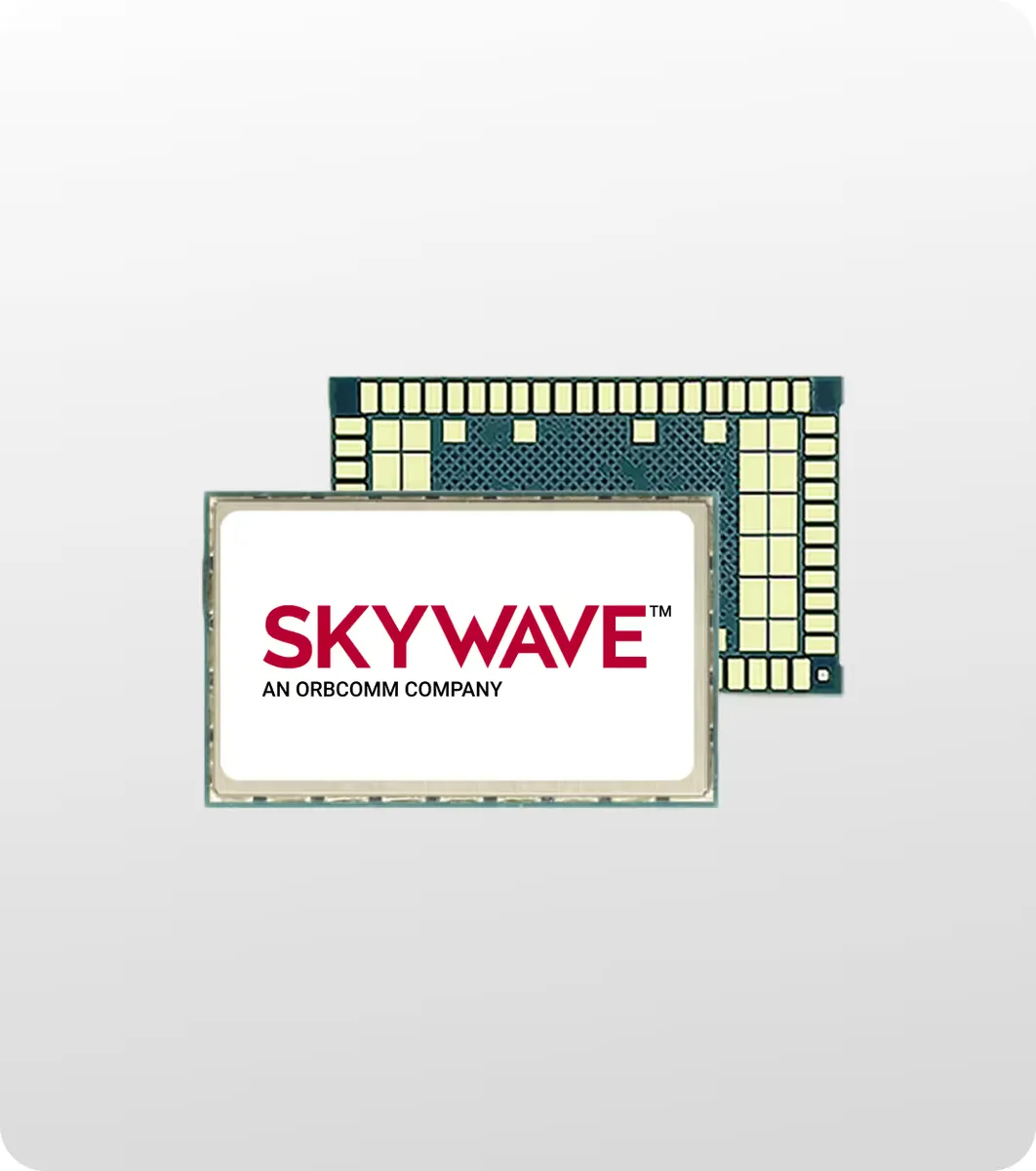

SKYWAVE ST 4000 Hybrid Satellite-Cellular IoT Module, OGx satellite + LTE-M + GNSS (16 x 26 mm LGA)
ORBCOMM
SKYWAVE ST 4000 Hybrid Satellite-Cellular IoT Module, OGx satellite + LTE-M + GNSS (16 x 26 mm LGA)
Model: ST 4000
Pricing for this product is provided on request.
Request a quoteEmbeddable hybrid module from SKYWAVE, an ORBCOMM company, that combines LTE-M cellular, the OGx satellite IoT service and a u-blox M10 GNSS receiver in a 96-pin LGA package built on the u-blox SARA platform footprint. It uses an AT-command interface and is aimed at custom IoT hardware that needs always-on connectivity.
Specifications
| Satellite | OGx, L-band, up to 1 MB payload, under 15 s latency for 100 bytes |
| Cellular | LTE Cat M1, bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85 |
| GNSS | u-blox M10: GPS/QZSS, GLONASS, BeiDou, Galileo |
| Form factor | 16.0 x 26.0 x 2.4 mm, 96-pin LGA, under 3 g |
| Interfaces | 2 x UART, USB for diagnostics, I2C, up to 6 GPIO, USIM |
| Supply voltage | 3.8 V nominal (3.0-4.5 V) |
| Operating temperature | -40 to +85 °C |
| Certifications | FCC, ISED, GCF, PTCRB, RED, RCM, NCC, AT&T including FirstNet |
| Model | ST 4000 |
