Kymeta Peregrine u8 maritime LEO satellite terminal for Eutelsat OneWeb (Ku-band flat panel, LEO or LEO-LTE version)
Kymeta
Kymeta Peregrine u8 maritime LEO satellite terminal for Eutelsat OneWeb (Ku-band flat panel, LEO or LEO-LTE version)
Model: Peregrine u8 LEO / LEO-LTE
Pricing for this product is provided on request.

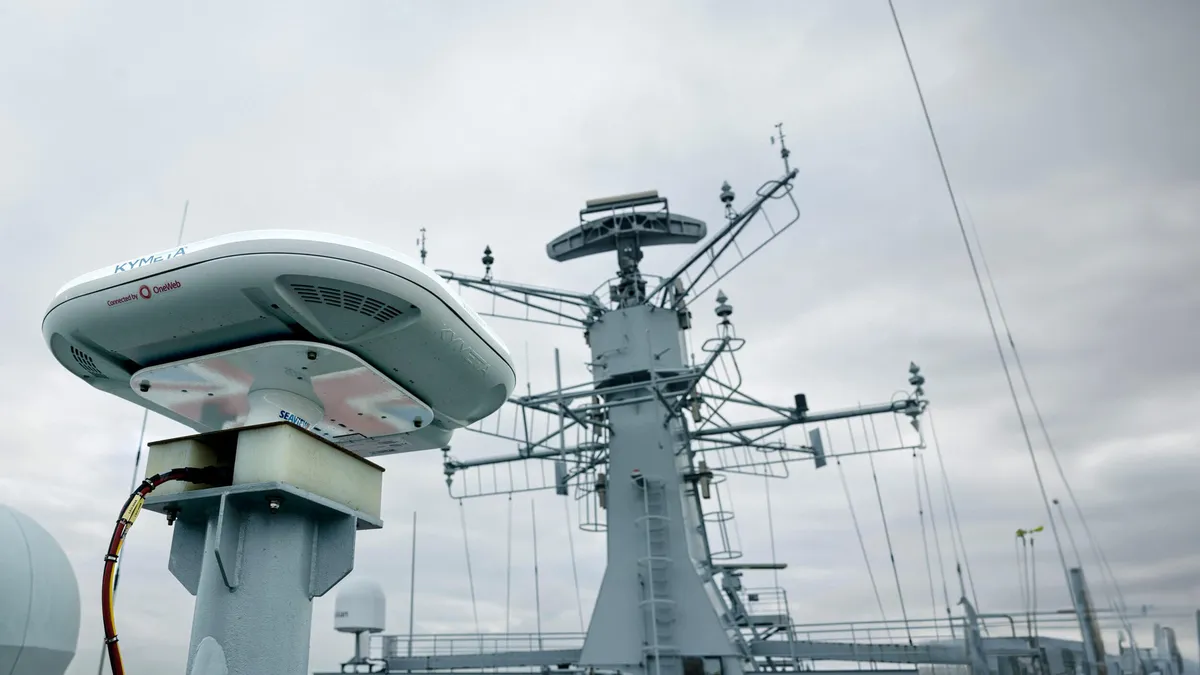

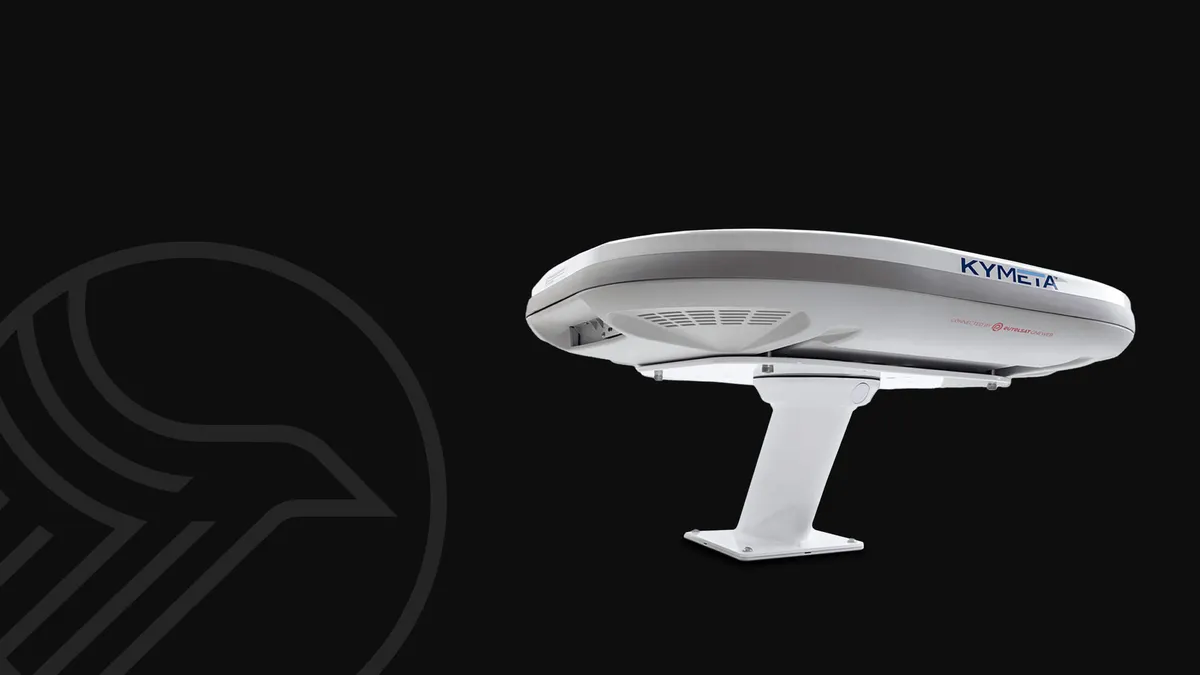

Request a quoteThe Peregrine u8 is Kymeta's purpose-built maritime terminal for the Eutelsat OneWeb LEO network: a low-profile, electronically steered Ku-band flat-panel antenna with an embedded modem and no moving parts. It is aimed at freighters, commercial fishing vessels and yachts, and the LEO-LTE version adds a cellular modem and Wi-Fi so it can switch between satellite and cellular when near shore. The Kymeta white paper rates it for vessels up to 7 m in sea state 6, vessels of 10 m and larger in sea state 7 and vessels of 30 m and larger in all known sea states.
Specifications
| Network | Eutelsat OneWeb Ku-band LEO (embedded modem); LEO-LTE version adds cellular |
| Antenna type | Full duplex, single aperture, Ku-band flat-panel electronically steered antenna |
| Scan angles | Azimuth 360°, elevation +15° to +90° |
| Polarization | Circular, software-defined |
| Receive band | 10.70 to 12.75 GHz (G/T 11 dB/K broadside) |
| Transmit band | 14.00 to 14.50 GHz (EIRP 36.6 dBW, dual carrier) |
| Throughput | Up to 195 Mbps down and 32 Mbps up per unit |
| Ship motion | Roll and pitch ±30° / 4.8 s (12.5°/s) max; yaw ±10° / 5 s max; headway 20.5 m/s (40 knots) |
| Interfaces | Ethernet; LEO-LTE version adds Wi-Fi (802.11 b/g/n) and cellular modem (LTE-A Pro, up to 600 Mbps) |
| Dimensions | 89.5 x 89.5 x 14 cm (35.2 x 35.2 x 5.5 in) |
| Weight | 30.1 kg (66 lb) LEO; 31.1 kg (68 lb) LEO-LTE |
| Input power | 10 to 30 VDC (LEO) or 12 to 30 VDC (LEO-LTE), or 90 to 305 VAC via accessory |
| Power (typical, steady state) | 95 W LEO; 125 W LEO-LTE |
| Operating temperature | -40 °C to +55 °C |
| Ingress protection | IP66 |
| Data source | Kymeta product sheet 700-00254-000 rev 12 (March 2025) |
| Model | Peregrine u8 LEO / LEO-LTE |
