Home / Shop / Satellite Communications / KVH TracNet H30 37 cm Hybrid Ku-band VSAT, Cellular and Wi-Fi Maritime System (6/2 Mbps)
KVH TracNet H30 37 cm Hybrid Ku-band VSAT, Cellular and Wi-Fi Maritime System (6/2 Mbps)
KVH
KVH TracNet H30 37 cm Hybrid Ku-band VSAT, Cellular and Wi-Fi Maritime System (6/2 Mbps)
Model: TracNet H30
Pricing for this product is provided on request.

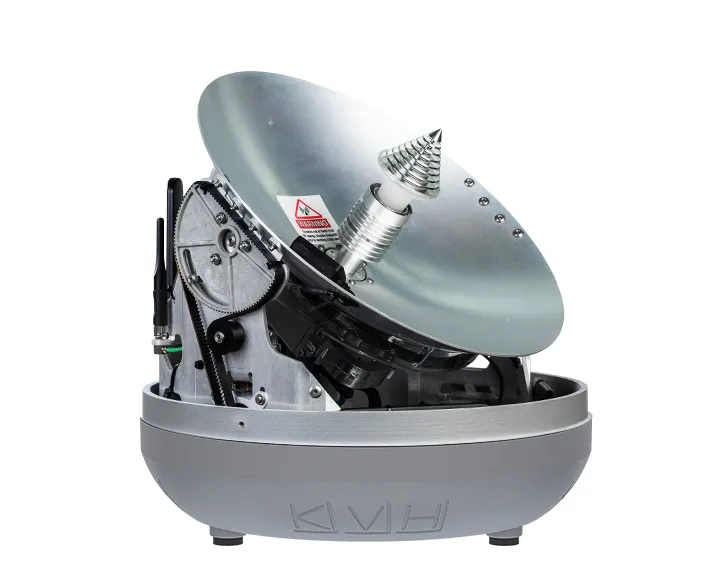

Request a quoteThe TracNet H30 is KVH's ultra-compact 37 cm hybrid terminal combining a Ku-band VSAT antenna with an integrated cellular and Wi-Fi module on the KVH ONE network, with automatic switching between them. It suits smaller vessels or acts as a backup on larger ones, with VSAT speeds up to 6 Mbps down and 2 Mbps up.
Specifications
| Network | KVH ONE hybrid: Ku-band HTS VSAT, cellular in 150+ countries, shore Wi-Fi |
| Maximum VSAT speed | 6 Mbps down / 2 Mbps up |
| Antenna dish diameter | 36.8 cm (14.5 in) |
| Antenna unit | 39.4 cm D x 44.7 cm H, 11.1 kg (24.6 lbs) |
| Elevation / azimuth range | 7.7° to 75° / unlimited rotation |
| Operating temperature (antenna) | -30°C to 55°C |
| Belowdecks units | TracNet Hub (10-30 VDC) or TracNet Hub+ (100-240 VAC, 1U rack) |
| Hub Wi-Fi | 2.4/5 GHz 802.11ac/a/b/g/n |
| Cellular module | 5G, LTE and UMTS, global except China |
| Part number | 01-0432-11 |
| Warranty | 2-year parts, 2-year labor |
| Model | TracNet H30 |
Need installation or a bulk quote? Talk to our team.
