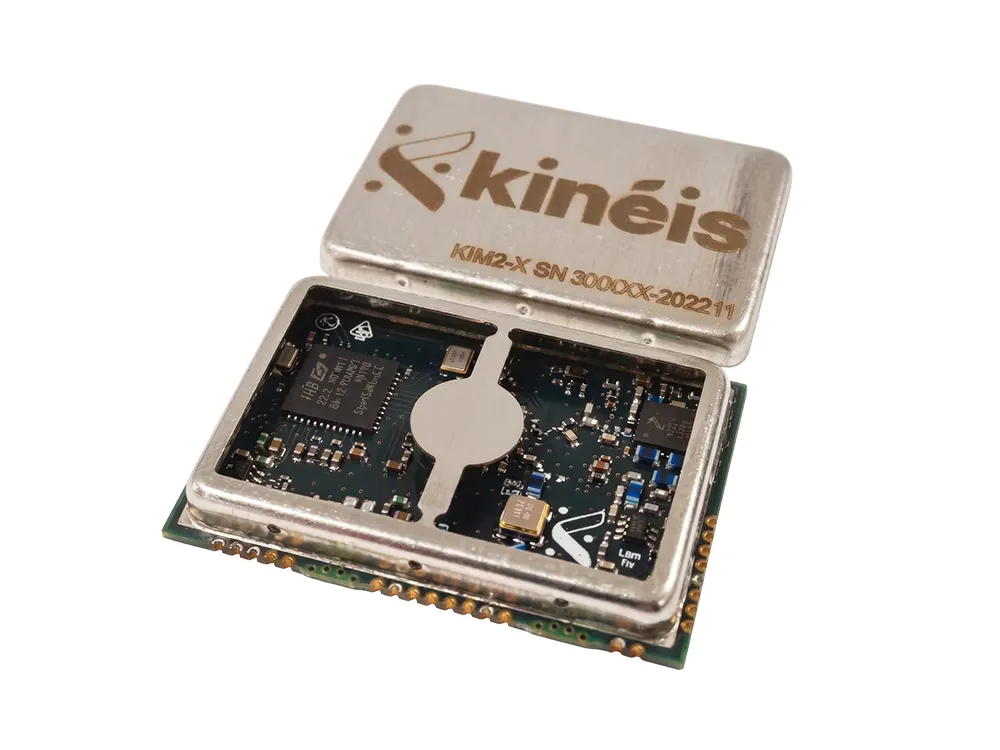

Kinéis KIM2 Satellite IoT Module, bidirectional with Doppler positioning (48-pin SMT, 36.6 x 25.4 mm, 6 g)
Kinéis
Kinéis KIM2 Satellite IoT Module, bidirectional with Doppler positioning (48-pin SMT, 36.6 x 25.4 mm, 6 g)
Model: KIM2 Module
Pricing for this product is provided on request.
Request a quoteLow-power bidirectional transceiver module for the Kinéis low-Earth-orbit satellite network, supporting data uplink, acknowledgement, data downlink and Doppler-based positioning. It has a surface-mount package, a UART with AT commands and an on/off pin for an external microcontroller. It is aimed at battery-powered remote telemetry devices.
Specifications
| Network | Kinéis LEO satellite constellation, bidirectional with Doppler localisation |
| Frequency band | 399.91-403 MHz, BPSK modulation |
| Payload | Typical 16 bytes transmit and 16 bytes receive (up to 19 bytes of user data per uplink) |
| Output power | 27 dBm nominal |
| Interface | UART with AT commands, on/off pin |
| Supply | 3.3-5 V (3.6 V typical), 395 mA typical transmit and 75 mA typical receive at 3.6 V, under 3 uA idle |
| Package | 48-pin surface-mount module, 36.6 x 25.4 x 5 mm, 6 g |
| Operating temperature | -40 to +85 °C |
| Certification | Kinéis, CNES, FCC and CE |
| Model | KIM2 Module |
