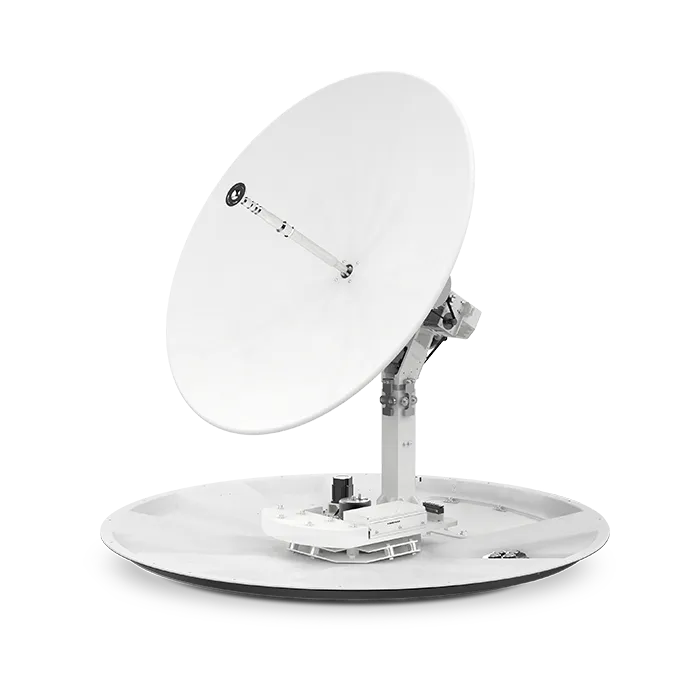

Intellian X130D 1.25 m Ku/Ka Electronically Switchable Multi-orbit Maritime VSAT Antenna
Intellian
Intellian X130D 1.25 m Ku/Ka Electronically Switchable Multi-orbit Maritime VSAT Antenna
Model: X130D
Pricing for this product is provided on request.
Request a quoteThe X130D is a 1.25 m dual-band maritime VSAT antenna that switches electronically between Ku- and Ka-band with a single command, with no conversion kit or hardware change. It has GEO, MEO and LEO tracking capability and is managed through AptusNX.
Specifications
| Network | Ku/Ka-band electronically switchable VSAT (GEO/MEO/LEO tracking per maker) |
| Reflector diameter | 125 cm (49.2 inch) |
| Radome height x diameter | 172.4 cm / 67.87" x 168.1 cm / 66.18" |
| Antenna weight | 180 kg / 396.83 lbs |
| TX frequency | (Ku-band) 13.75~14.5 GHz, (Ka-band) 27.5~30.0 GHz |
| RX frequency | (Ku-band) 10.7~12.75 GHz, (Ka-band) 17.7~20.2 GHz |
| TX gain (excl. radome) | (Ku-band) 42.7 dBi @ 14.0 GHz, (Ka-band) 48.5 dBi @ 28.8 GHz |
| RX gain (excl. radome) | (Ku-band) 41.7 dBi @ 11.85 GHz, (Ka-band) 45.5 dBi @ 19.0 GHz |
| G/T | (Ku-band) >20.4 dB/K, (Ka-band) >21.0 dB/K |
| Model | X130D |
