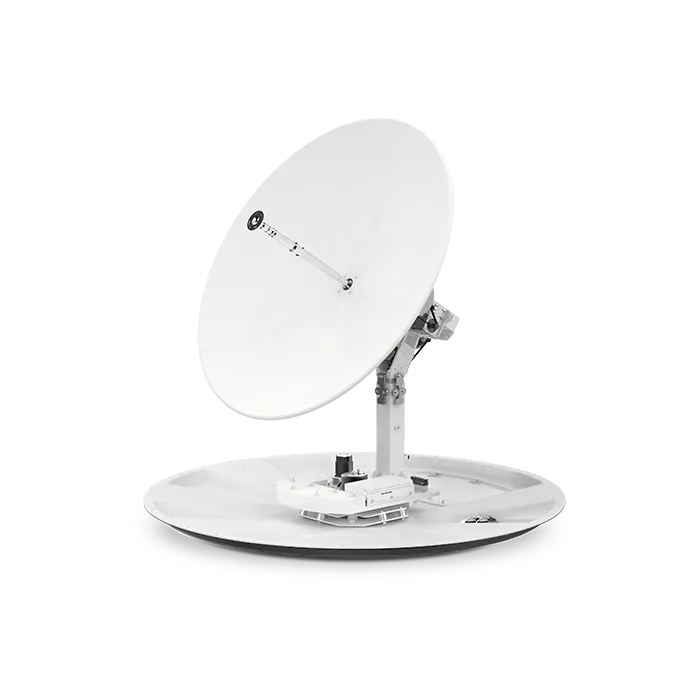

Intellian X100D 1 m Ku/Ka Electronically Switchable Multi-orbit Maritime VSAT Antenna
Intellian
Intellian X100D 1 m Ku/Ka Electronically Switchable Multi-orbit Maritime VSAT Antenna
Model: X100D
Pricing for this product is provided on request.
Request a quoteThe X100D is a 1 m class dual-band maritime VSAT antenna that switches electronically between Ku- and Ka-band with a single command, removing the need for conversion kits. It offers GEO, MEO and LEO tracking capability and is managed through the AptusNX web interface.
Specifications
| Network | Ku/Ka-band electronically switchable VSAT (GEO/MEO/LEO tracking per maker) |
| Reflector diameter | 105 cm / 41.34 inch |
| Radome height x diameter | 145.24 cm / 57.2" x 137.9 cm / 54.29" |
| Antenna weight | 150 kg / 330.69 lbs |
| TX frequency | (Ku-band) 13.75~14.5 GHz, (Ka-band) 27.5~30.0 GHz |
| RX frequency | (Ku-band) 10.7~12.75 GHz, (Ka-band) 17.7~20.2 GHz |
| TX gain (excl. radome) | (Ku-band) 41.2 dBi @ 14.0 GHz, (Ka-band) 46.9 dBi @ 28.8 GHz |
| RX gain (excl. radome) | (Ku-band) 40.1 dBi @ 11.85 GHz, (Ka-band) 43.8 dBi @ 19.0 GHz |
| G/T | (Ku-band) >18.8 dB/K, (Ka-band) >19.2 dB/K |
| Model | X100D |
