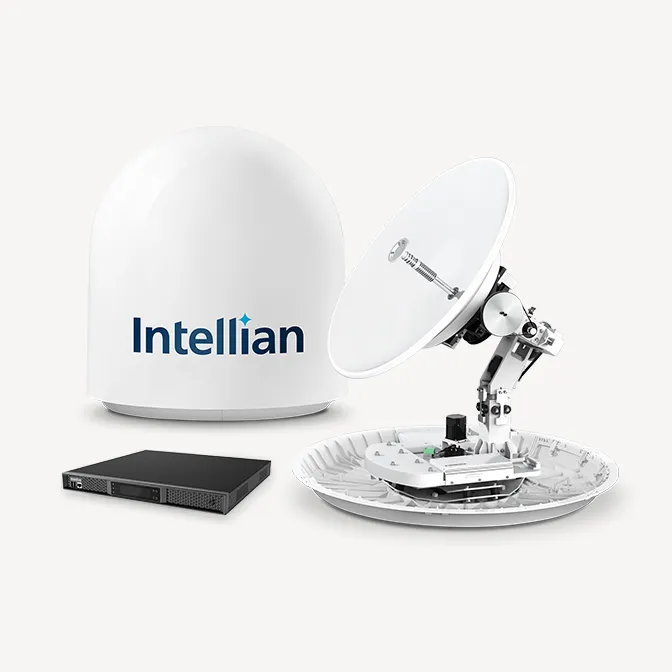

Intellian v85NX 85 cm Ku-/Ka-band Convertible Maritime VSAT Antenna
Intellian
Intellian v85NX 85 cm Ku-/Ka-band Convertible Maritime VSAT Antenna
Model: v85NX
Pricing for this product is provided on request.
Request a quoteThe v85NX is an 85 cm stabilised maritime VSAT antenna that can be converted between Ku- and Ka-band by swapping the RF assembly. It comes standard with an 8 W BUC that can be upgraded to a high-power BUC or transceiver for higher throughput.
Specifications
| Network | Ku-/Ka-band convertible VSAT |
| Reflector diameter | 85 cm (33.5 inch) |
| Radome dimensions (H x D) | 123x113 cm (48.4x44.5 inch) |
| Antenna weight | 96 kg / 211.6 lbs |
| TX frequency | Ku: 13.75~14.5 GHz Ku-band; Ka: 29.0~30.0 GHz Ka-band; Ka XCVR: 27.5~30.0 GHz Ka-band |
| RX frequency | Ku: 10.7~12.75 GHz Ku-band; Ka: 19.2~20.2 GHz Ka-band; Ka XCVR: 17.7~20.2 GHz Ka-Band |
| TX gain | Ku: 40.7 dBi @ 14.25 GHz (excl. radome); Ka: 45.8 dBi @ 29.5 GHz (excl. radome); Ka XCVR: 45.9 dBi @ 28.8 GHz (excl. radome) |
| RX gain | Ku: 38.9 dBi @ 11.7 GHz (excl.radome); Ka: 42.8 dBi @ 19.7 GHz (excl. radome); Ka XCVR: 42.6 dBi @ 19.0 Ghz (excl. radome) |
| G/T | Ku: 18.3 dB/K (min.); Ka: 18.5 dB/K; Ka XCVR: 18.0 dB/K |
| Model | v85NX |
