Intellian v80E 80 cm Ku-band Maritime VSAT Antenna
Intellian
Intellian v80E 80 cm Ku-band Maritime VSAT Antenna
Model: v80E
Pricing for this product is provided on request.

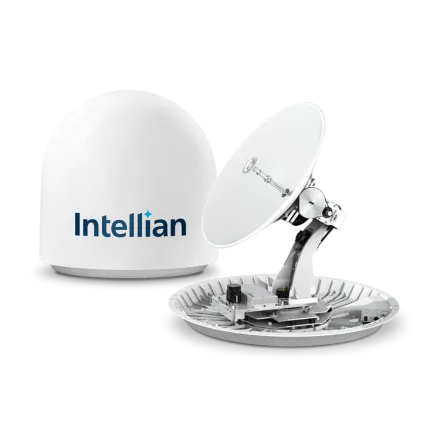

Request a quoteThe v80E is an entry-level 80 cm stabilised Ku-band maritime VSAT antenna built on Intellian's NX platform. The cable connection port is on the outer radome base, so the radome does not need to be opened during installation, and one cable carries Tx, Rx and DC power.
Specifications
| Network | Ku-band VSAT (GEO) |
| Reflector diameter | 80cm (31.49inch) |
| Radome dimensions | 113.7x112.7 cm (44.77x44.37 inch) |
| Antenna weight | 76 kg/ 167.55 lbs |
| TX frequency | 13.75~14.5GHz Ku-band |
| RX frequency | 10.7~12.75GHz Ku-band |
| TX gain | 39.8 dBi @ 14.25 GHz (excl. radome) |
| RX gain | 38.1 dBi @ 11.7 GHz (excl.radome) |
| G/T | 17.8 dB/K (min.) |
| Model | v80E |
