Intellian v60Ka 2 65 cm Ka-band Maritime VSAT Antenna
Intellian
Intellian v60Ka 2 65 cm Ka-band Maritime VSAT Antenna
Model: v60Ka 2
Pricing for this product is provided on request.

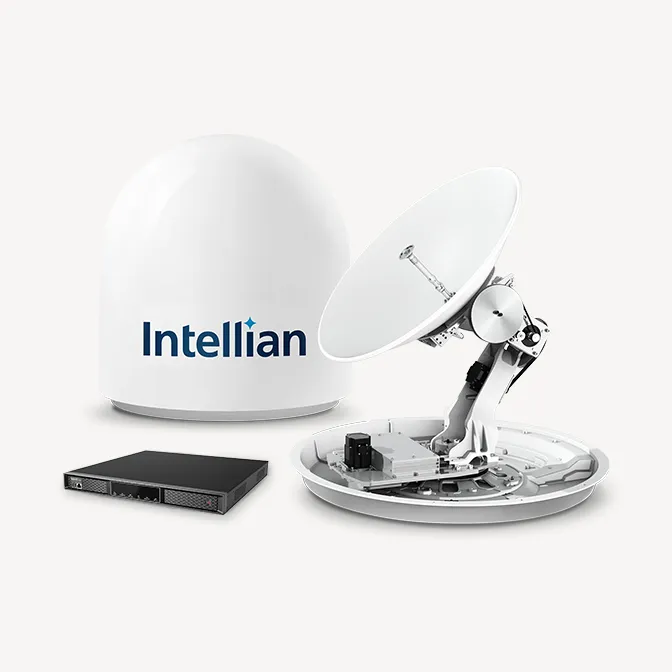

Request a quoteThe v60Ka 2 is a lightweight 65 cm stabilised Ka-band maritime VSAT antenna with a single-cable installation, offered with a BUC or a transceiver (XCVR) variant. Intellian lists it as ready for service on the Telenor Thor-7 high-throughput network.
Specifications
| Network | Ka-band VSAT (GEO) |
| Reflector diameter | 65 cm (25.6") |
| Radome dimensions | Standard: 93x86 cm (36.6"x33.9"); XCVR: 92.5x86 cm (36.4"x33.85") |
| Antenna weight | 39 kg (86 lbs) |
| TX frequency | 29.0~30.0 GHz Ka-band |
| RX frequency | 17.7~20.2 GHz Ka-band |
| TX gain | 44.2 dBi @ 29.0 GHz |
| RX gain | Standard: 40.5 dBi @ 19.7 GHz; XCVR: 40.2 dBi @19.0 GHz |
| G/T | 15.5 dB/K |
| Model | v60Ka 2 |
Need installation or a bulk quote? Talk to our team.
