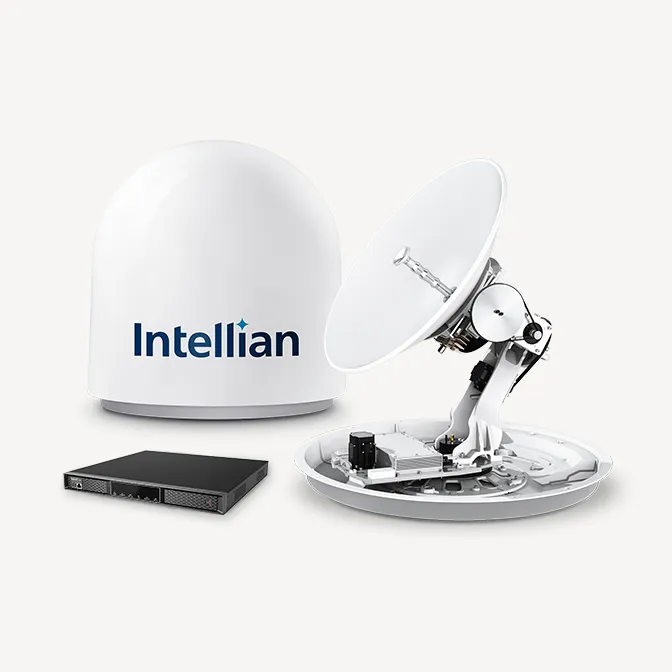

Intellian v60E 65 cm Ku-band Maritime VSAT Antenna
Intellian
Intellian v60E 65 cm Ku-band Maritime VSAT Antenna
Model: v60E
Pricing for this product is provided on request.
Request a quoteThe v60E is a lightweight, entry-level 65 cm stabilised Ku-band maritime VSAT antenna with a 6 W BUC as standard (8 W optional) and a cross-pol only configuration. It uses a single coax cable connection and the Aptus management interface, and Intellian lists it as Intelsat Flex certified.
Specifications
| Network | Ku-band VSAT (GEO) |
| Reflector diameter | 65cm (25.6inch) |
| Radome dimensions | 93x86 cm (36.6x33.9 inch) |
| Antenna weight | 42kg/ 92.6 lbs |
| TX frequency | 13.75~14.5GHz Ku-band |
| RX frequency | 10.7~12.75GHz Ku-band |
| TX gain | 37.9 dBi @ 14.25 GHz (excl. radome) |
| RX gain | 36.5 dBi @ 11.7 GHz (excl.radome) |
| G/T | 15.5 dB/K (min.) |
| Model | v60E |
