Intellian v45C 45 cm Ku-band Compact Maritime VSAT Antenna
Intellian
Intellian v45C 45 cm Ku-band Compact Maritime VSAT Antenna
Model: v45C
Pricing for this product is provided on request.

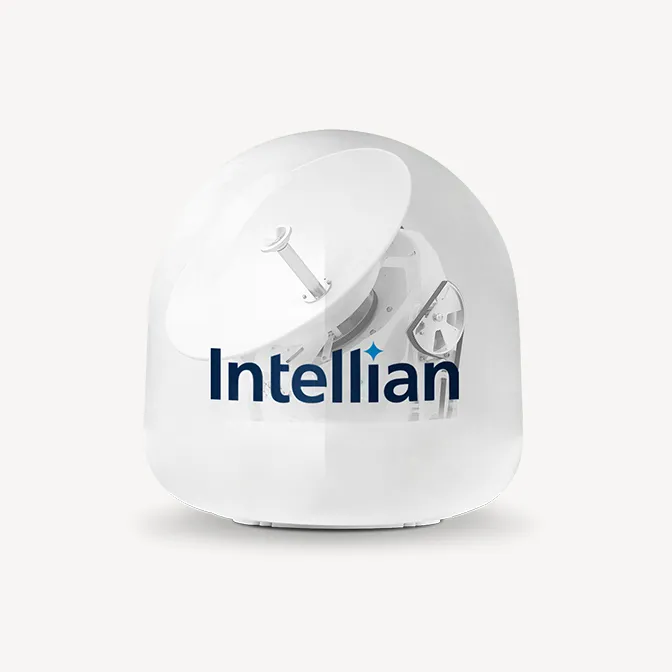

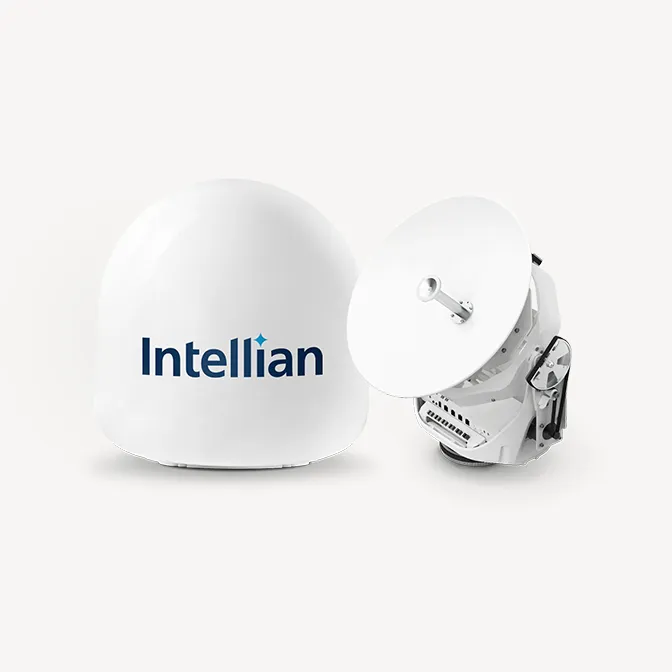

Request a quoteThe v45C is a 45 cm, 23 kg stabilised Ku-band maritime VSAT antenna aimed at smaller boats and vessels, including fishing, leisure and commercial craft. A single coaxial cable is connected externally, so the radome does not need to be opened during installation.
Specifications
| Network | Ku-band VSAT (GEO) |
| Reflector diameter | 45cm (17.7inch) |
| Radome dimensions | 61x62.7 cm (24x24.6 inch) |
| Antenna weight | 23kg/ 50.7 lbs |
| TX frequency | 13.75~14.5GHz Ku-band |
| RX frequency | 10.7~12.75GHz Ku-band |
| TX gain | 34.8 dBi @ 14.25 GHz (excl. radome) |
| RX gain | 33.2 dBi @ 11.7 GHz (excl.radome) |
| G/T | >12.3 dB/K (min.) |
| Model | v45C |
