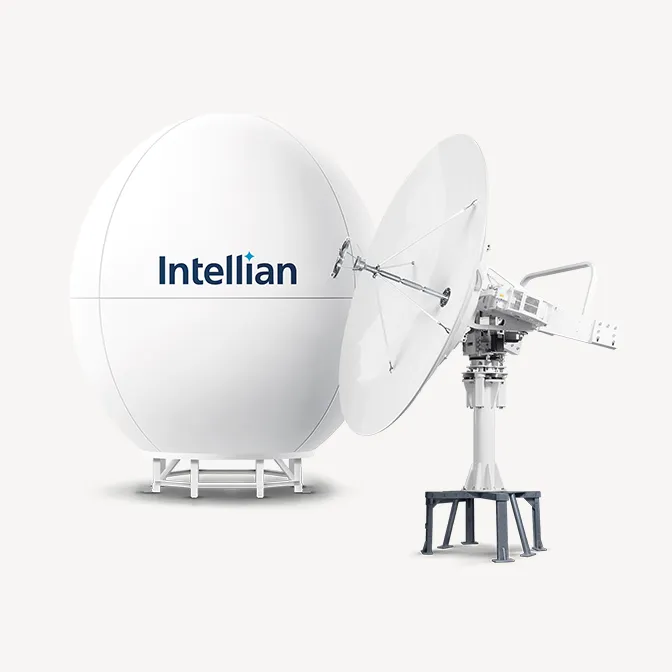

Intellian v240K 2.4 m Ku-band Maritime VSAT Antenna
Intellian
Intellian v240K 2.4 m Ku-band Maritime VSAT Antenna
Model: v240K
Pricing for this product is provided on request.
Request a quoteThe v240K is a 2.4 m stabilised Ku-band maritime VSAT antenna for vessels in the cruise and energy markets that need high bandwidth. Its wide-look-angle pedestal is designed for very low elevation angles.
Specifications
| Network | Ku-band VSAT (GEO) |
| Reflector diameter | 240 cm (94.5 inch) |
| Radome dimensions | 414cmx391cm( 163.0"x154.0") |
| Antenna weight | 782kg / 1724lbs |
| TX frequency | 13.75~14.5GHz Ku-band |
| RX frequency | 10.7~12.75GHz Ku-band |
| TX gain | 48.0 dBi @ 14.25 GHz (excl. radome) |
| RX gain | 46.6 @ 11.85 GHz (excl. radome) |
| G/T | 27.6 dB/K (min.) |
| Model | v240K |
Need installation or a bulk quote? Talk to our team.
