Intellian v240C 2.4 m C-band Maritime VSAT Antenna
Intellian
Intellian v240C 2.4 m C-band Maritime VSAT Antenna
Model: v240C
Pricing for this product is provided on request.

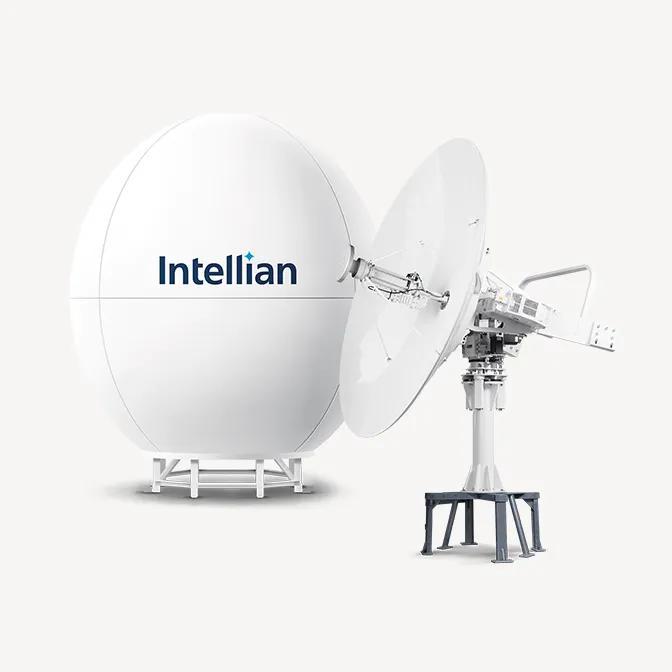

Request a quoteThe v240C is a 2.4 m stabilised C-band maritime VSAT antenna with automatic switching between linear and circular C-band polarisation and a choice of BUC power options. C-band offers wide-area coverage and resilience to severe weather, and the wide-look-angle pedestal suits very low elevations.
Specifications
| Network | C-band VSAT (GEO) |
| Reflector diameter | 240 cm (94.5 inch) |
| Radome dimensions | 414cmx391cm( 163.0"x154.0") |
| Antenna weight | 782kg / 1724lbs |
| TX frequency | 5.85~6.425 GHz C-band |
| RX frequency | 3.625~4.2 GHz C-band |
| TX gain | 41.7 dBi @ 6.14 GHz (excl. radome) |
| RX gain | 37.7 dBi @ 3.91 GHz (excl. radome) |
| G/T | 20.0 dB/K (min.) |
| Model | v240C |
Need installation or a bulk quote? Talk to our team.
