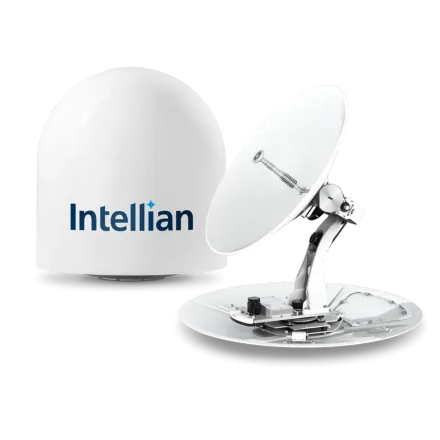

Intellian v100E 1.05 m Ku-band Maritime VSAT Antenna
Intellian
Intellian v100E 1.05 m Ku-band Maritime VSAT Antenna
Model: v100E
Pricing for this product is provided on request.
Request a quoteThe v100E is an entry-level 1.05 m stabilised Ku-band maritime VSAT antenna on Intellian's NX platform. A single cable carries Tx, Rx and DC power, and the cable port sits on the outer radome base so the radome does not need to be opened for installation.
Specifications
| Network | Ku-band VSAT (GEO) |
| Reflector diameter | 105cm (41.33 inch) |
| Radome dimensions | 145.9x137.9 cm (57.44x54.29 inch) |
| Antenna weight | 121 kg/ 266.7 lbs |
| TX frequency | 13.75~14.5GHz Ku-band |
| RX frequency | 10.7~12.75GHz Ku-band |
| TX gain | 42 dBi @ 14.25 GHz (excl. radome) |
| RX gain | 40.5 dBi @ 11.7 GHz (excl.radome) |
| G/T | 19.8 dB/K (min.) |
| Model | v100E |
Need installation or a bulk quote? Talk to our team.
