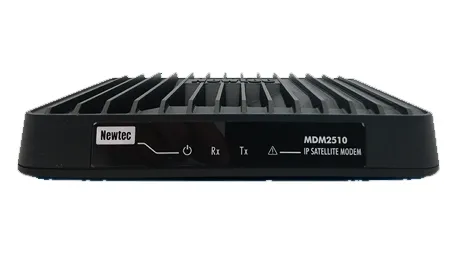

iDirect MDM2510 IP Satellite Modem (DVB-S2X, up to 120/20 Mbps, 4 x GigE)
iDirect
iDirect MDM2510 IP Satellite Modem (DVB-S2X, up to 120/20 Mbps, 4 x GigE)
Model: MDM2510
Pricing for this product is provided on request.
Request a quoteThe MDM2510 is a compact, low-power modem for the iDirect Dialog platform that serves SOHO customers and small and medium enterprises, and also supports point-of-sale, banking, mobility and cellular backhaul applications. It receives DVB-S2X carriers up to 480 Msps and transmits MF-TDMA or Mx-DMA with Multi-Resolution Coding.
Specifications
| Platform | iDirect Dialog (Intuition) |
| Receive | DVB-S2 (1-64 Msps) / DVB-S2X (1-480 Msps), QPSK to 64APSK |
| Transmit | Mx-DMA MRC/HRC up to 20 Msps; MF-TDMA 4CPM up to 3.8 Msps |
| Throughput | Up to 120/20 Mbps |
| Interfaces | 4 x 10/100/1000 Mbps Ethernet; F-type 75 ohm Tx and Rx |
| Tx / Rx frequency | Tx L-band 950-2400 MHz or S-band 2750-3000 MHz; Rx 950-2150 MHz |
| BUC / LNB supply | BUC 24 V 2.5 A, reference 10/50 MHz; LNB 13/18 V 0.5 A |
| Features | OpenAMIP and GXT file support, TCP and GTP acceleration, header compression |
| Dimensions | 21 x 18 x 3.5 cm |
| Weight | 0.9 kg |
| Power | 24 VDC mains adaptor; 120 W maximum from mains, 21 W modem |
| Operating temperature | 0 to +50 °C |
| Model | MDM2510 |
