iDirect MDM2010 Satellite Modem (DVB-S2X, up to 100/10 Mbps, desktop, Dialog platform)
iDirect

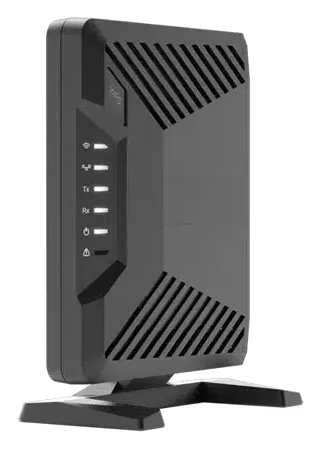

iDirect MDM2010 Satellite Modem (DVB-S2X, up to 100/10 Mbps, desktop, Dialog platform)
Model: MDM2010
Pricing for this product is provided on request.
Request a quoteThe MDM2010 is a compact, lightweight, low-power desktop modem for the iDirect Dialog platform, aimed at consumer, SOHO, SME, education and government networks. It receives wideband DVB-S2X and transmits MF-TDMA or Mx-DMA with Multi-Resolution Coding, and is sold with interactive LNB and antenna combinations.
Specifications
| Platform | iDirect Dialog (Intuition) |
| Receive | DVB-S2 (3.6-64 Msps) / DVB-S2X up to 480 Msps, QPSK to 64APSK |
| Transmit | MF-TDMA (4CPM, up to 3.8 Msps) or Mx-DMA MRC (up to 10 Msps) |
| Throughput | Up to 100/10 Mbps |
| Interfaces | 1 x 10/100/1000 Mbps Ethernet; optional Wi-Fi 802.11 b/g/n 2.4 GHz; F-type 75 ohm Tx and Rx |
| Tx / Rx frequency | Tx 2750-3000 MHz, Rx 950-2150 MHz |
| Dimensions | 8.2 x 17.7 x 21.2 cm |
| Weight | 0.48 kg |
| Power | 24 VDC from mains adaptor; 60 W maximum from mains, 21 W modem |
| Operating temperature | 0 to +40 °C |
| Model | MDM2010 |
Need installation or a bulk quote? Talk to our team.
