Hughes HT2300 JUPITER Satellite Router (DVB-S2X, up to 200 Mbps, C/Ku/Ka-band, 4 x GigE)
Hughes
Hughes HT2300 JUPITER Satellite Router (DVB-S2X, up to 200 Mbps, C/Ku/Ka-band, 4 x GigE)
Model: HT2300
Pricing for this product is provided on request.
Request a quoteThe HT2300 is a desktop VSAT router for the Hughes JUPITER System with a wideband DVB-S2X forward channel and an LDPC/MF-TDMA return channel with adaptive coding and modulation. A dual-cable L-band interface lets it drive off-the-shelf BUCs in C-, Ku- or Ka-band networks, and it provides four Gigabit Ethernet ports plus an embedded web GUI for installation and diagnostics. Part of the Hughes JUPITER System, it works with a JUPITER gateway and is managed by the JUPITER network management system.
Specifications
| Network | Hughes JUPITER System (GEO HTS and conventional satellites) |
| Forward channel | DVB-S2X with ACM, QPSK/8PSK/16APSK/32APSK/64APSK, symbol rates up to 235 Msps |
| Return channel | MF-TDMA, LDPC FEC, OQPSK/QPSK/8PSK/16APSK, 256 ksps to 12 Msps, ACM capable |
| Throughput | Up to 200 Mbps |
| Frequency bands | C-, Ku- and Ka-band (L-band IFL: TX 950-2400 MHz, RX 950-2150 MHz) |

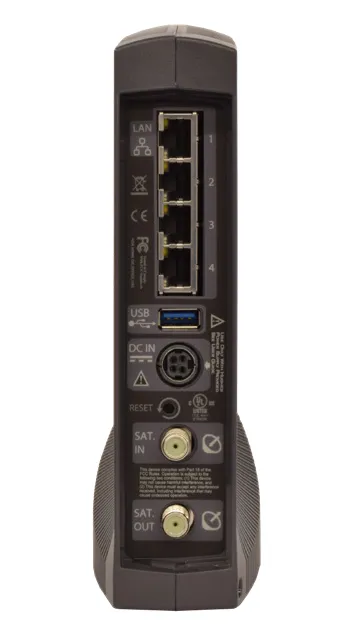

| Interfaces | 4 x GigE LAN, USB |
| Antenna sizes | 74 cm, 98 cm, 120 cm or 180 cm |
| IFL cable | Dual RG-6, 75 ohm, F-type, up to 150 ft |
| Dimensions | 8.0 in H x 1.6 in W x 9.0 in D (20.4 x 3.9 x 22.7 cm) |
| Weight | 1.23 lb (0.56 kg) |
| Power | External supply, 90-264 VAC, 47-63 Hz |
| Operating temperature | 0 to +50 °C |
| IP features | Dual-stack IPv4/IPv6, BGP, policy-based routing, NAT/PAT, VLAN tagging, VRRP, ACL, SIP call proxy |
| Model | HT2300 |
