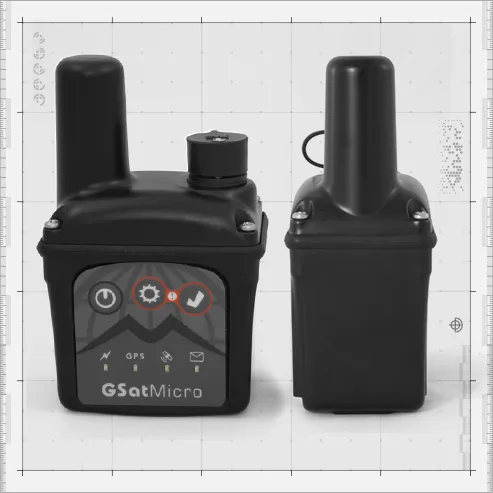

GSE GSatMicro X Dual-Network Iridium and GSM Satellite Tracker (hybrid, Lua programmable, IP67)
GSE
GSE GSatMicro X Dual-Network Iridium and GSM Satellite Tracker (hybrid, Lua programmable, IP67)
Model: GSatMicro X
Pricing for this product is provided on request.
Request a quoteThe GSatMicro handheld tracker with an added GSM chipset, giving a hybrid terminal that can switch between local cellular networks and the Iridium satellite network. You can choose which network is primary and which is the failover. It keeps the Lua programming, Iridium Short Burst Data service and rugged self-contained case of the standard GSatMicro.
Specifications
| Network | Iridium Short Burst Data (SBD) plus GSM, customisable switchover and failover |
| Processor and programming | 32-bit ARM, user customisable Lua scripting, over-the-air configuration |
| Positioning | SiRFstarV GPS, -163 dBm tracking sensitivity, under 2.5 m CEP |
| Security | AES 256-bit encryption |
| Battery | Built-in 2.5 Ah lithium polymer battery and charger |
| Interfaces | USB, RS232, 2 relay outputs at 2 A, 2 analog inputs (0-30 V DC), optional SMA antenna connector |
| Internal dimensions | 45 x 45 x 34 mm including battery, modem and antenna |
| Enclosure | Rugged waterproof case (IP67) |
| Model | GSatMicro X |
Need installation or a bulk quote? Talk to our team.
