RockREMOTE Rugged Iridium Certus 100 and LTE Edge Gateway (IP67, Linux, sealed M12/SMA connectors)
Ground Control
RockREMOTE Rugged Iridium Certus 100 and LTE Edge Gateway (IP67, Linux, sealed M12/SMA connectors)
Model: RockREMOTE Rugged
Pricing for this product is provided on request.
Request a quoteWaterproof aluminium gateway for permanent outdoor, mobile and industrial installations, with automatic failover between LTE cellular and an external Iridium Certus 100 antenna. An internal Linux module supports containerised edge applications and local MQTT and FTP handling. Connections are via ruggedised sealed connectors.
Specifications
| Network | Iridium Certus 100 IP data and Iridium Messaging Transport, plus LTE Cat 1 / Cat 4 (region variants) with automatic failover |
| Transceiver | Iridium Certus 9770, 22 kbps up and 88 kbps down |
| Interfaces | Rugged Ethernet, configurable RS-232 and RS-422/RS-485 serial, optional 2.4 GHz Wi-Fi |

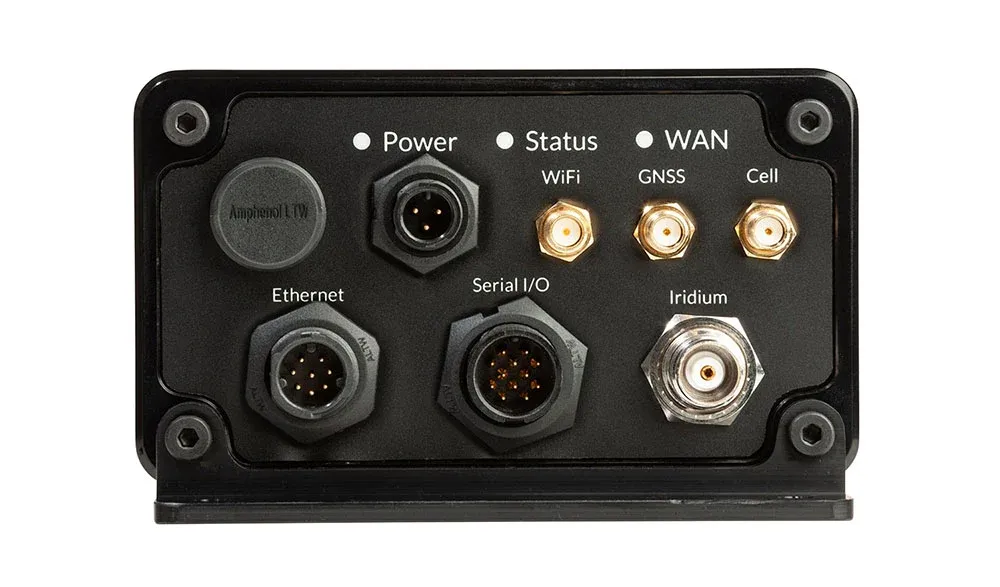

| Antennas | TNC for approved passive omnidirectional Iridium antenna, SMA for external LTE and GNSS antennas |
| Power | 10-30 V DC; 5 W idle and 9 W average transmit |

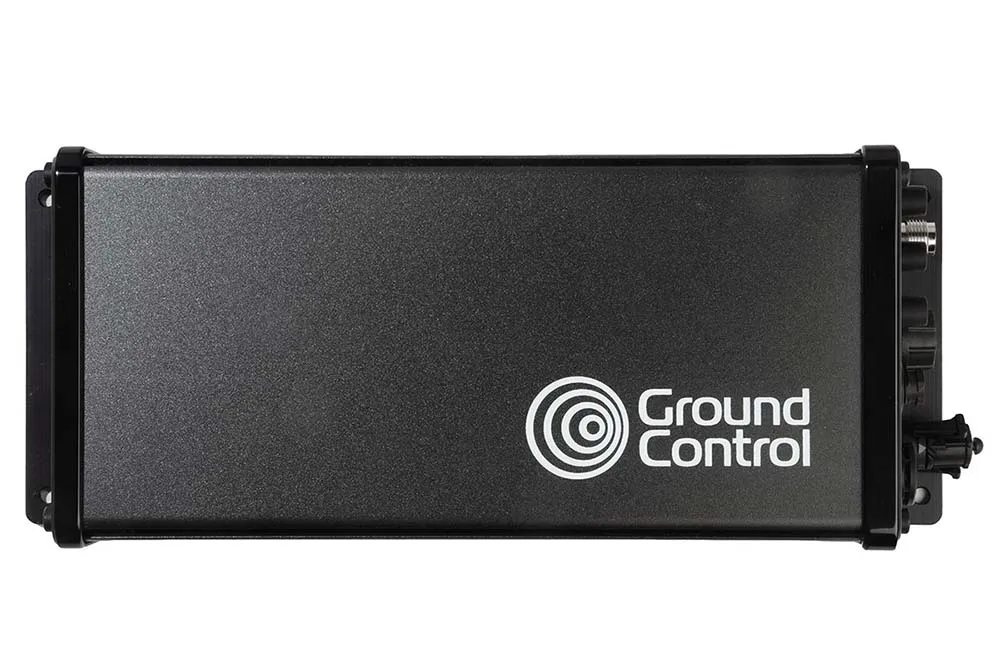

| Enclosure | Aluminium, IP67, tested to EN 300 019-2-5 and -2-7 vibration |
| Dimensions | 250 x 90 x 61 mm |
| Weight | 1.2 kg |
| Operating temperature | -40 to +70 °C |
| Model | RockREMOTE Rugged |
Need installation or a bulk quote? Talk to our team.
