RockREMOTE Mini OEM Board-Level Iridium Certus 100 Satellite Module (30-way header, Ethernet)
Ground Control
RockREMOTE Mini OEM Board-Level Iridium Certus 100 Satellite Module (30-way header, Ethernet)
Model: RockREMOTE Mini OEM
Pricing for this product is provided on request.

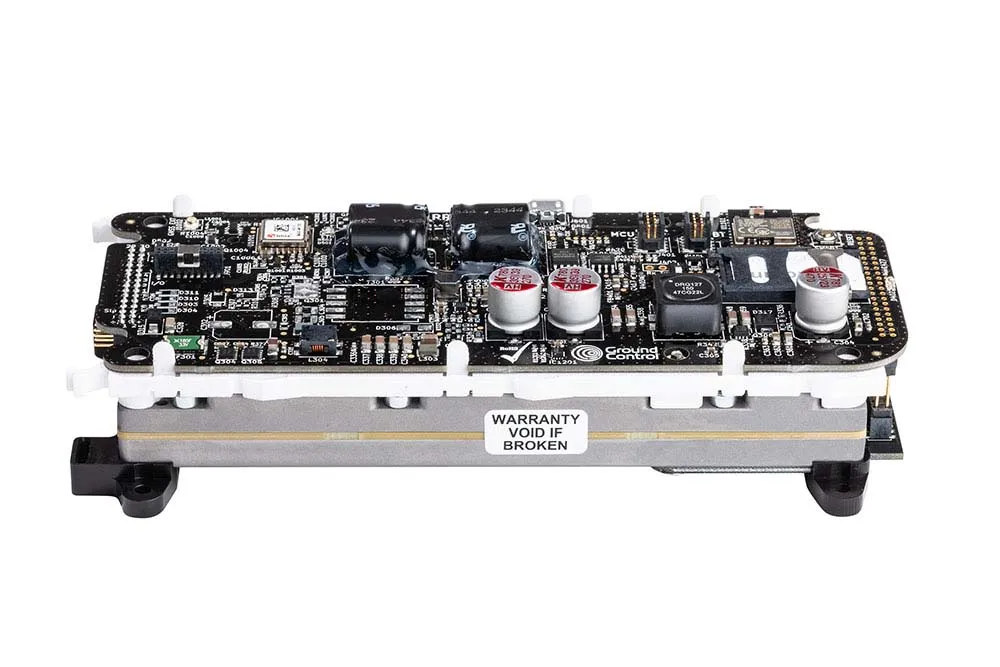

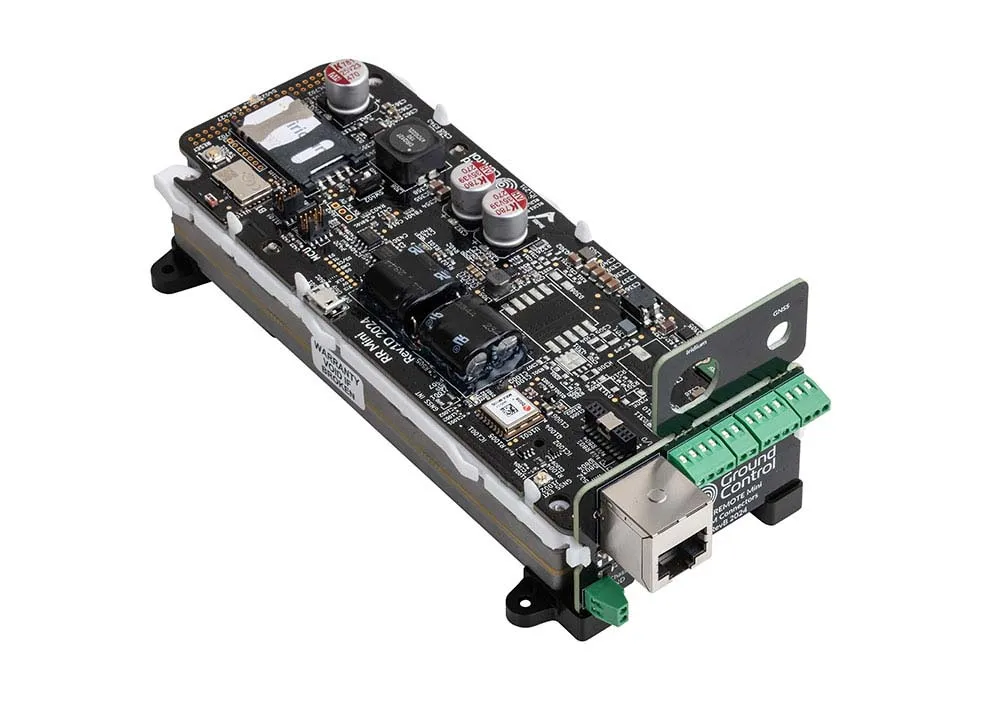

Request a quoteBoard-level version of RockREMOTE Mini for building Iridium Certus 100 IP connectivity and Iridium Messaging Transport into your own product. It is supplied as a PCB assembly with a mounting chassis, with power, Ethernet, serial and GPIO on a 30-way header. Enclosure, antenna placement and power design are left to the integrator.
Specifications
| Network | Iridium Certus 100 IP data and Iridium Messaging Transport |
| Transceiver | Iridium Certus 9770, 22 kbps up and 88 kbps down |
| Interfaces | 10/100 Ethernet, one configurable RS-232/RS-422/RS-485 port, four software-selectable GPIO, Bluetooth LE 5.0 |

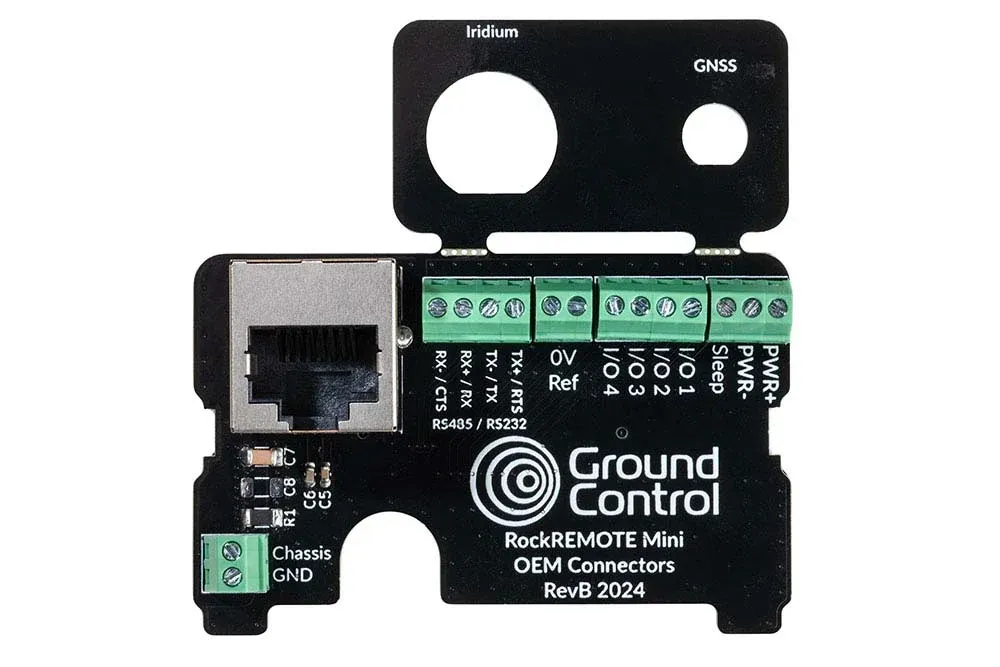

| Integration connector | Single 30-way, 2 x 15, 2.0 mm pitch header |
| Antennas | MMCX for external Iridium Certus 100 antenna, U.FL for external GNSS antenna |
| Power | 10-30 V DC; sleep under 36 mW at 12 V, 7.25 W average transmit |
| Dimensions | 155.8 x 77.2 x 42.5 mm |
| Weight | 288 g |
| Operating temperature | -40 to +70 °C |
| Model | RockREMOTE Mini OEM |
Need installation or a bulk quote? Talk to our team.
