RockREMOTE Mini Iridium Certus 100 Satellite IoT Terminal (IP66, Ethernet PoE+, RS-232)
Ground Control
RockREMOTE Mini Iridium Certus 100 Satellite IoT Terminal (IP66, Ethernet PoE+, RS-232)
Model: RockREMOTE Mini
Pricing for this product is provided on request.

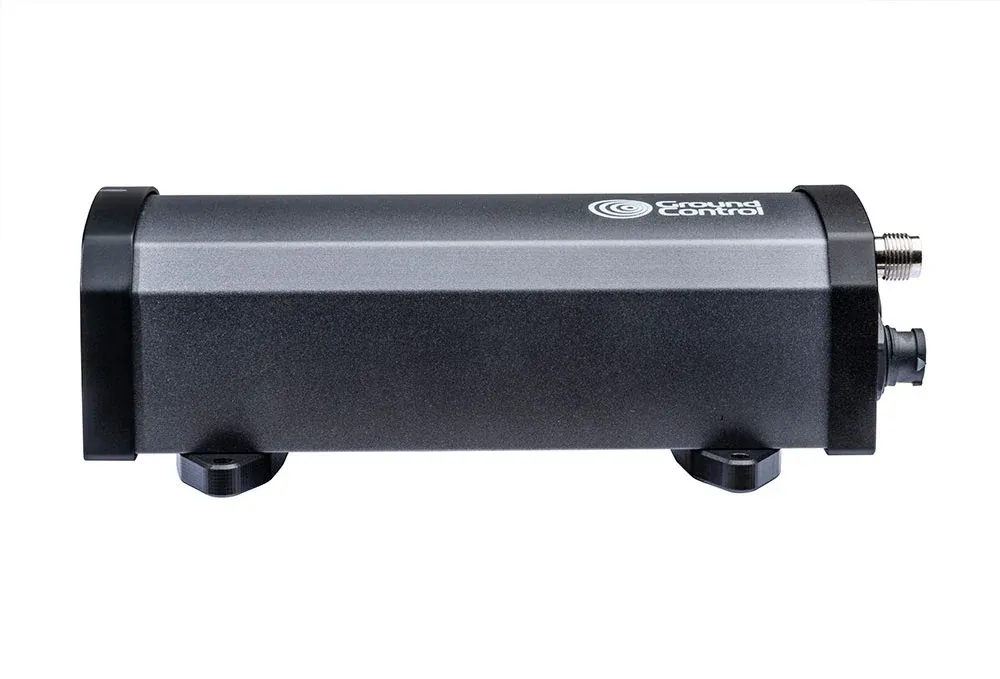

Request a quoteCompact IP66 aluminium terminal that adds Iridium Certus 100 IP connectivity and Iridium Messaging Transport to remote equipment. It has 10/100 Ethernet with PoE+, a configurable serial port and GPIO, runs from 10-30 V DC and is designed for low-power permanent outdoor installation on fixed or mobile assets.
Specifications
| Network | Iridium Certus 100 IP data and Iridium Messaging Transport |
| Transceiver | Iridium Certus 9770, 22 kbps up and 88 kbps down |
| IMT message size | 1 to 100,000 bytes |

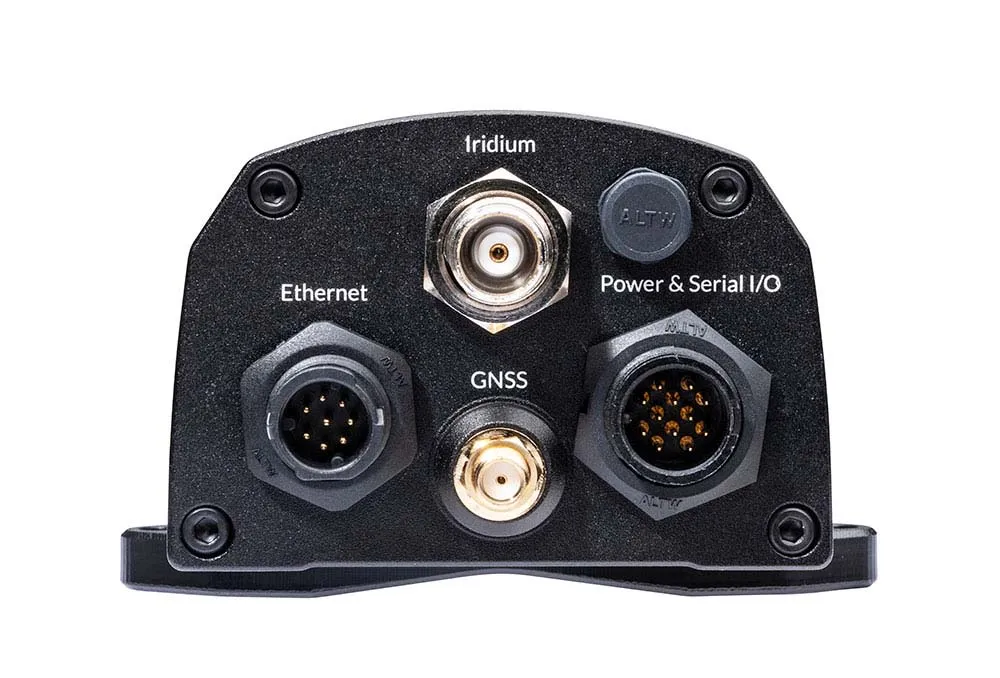

| Interfaces | 10/100 Ethernet with PoE+, one configurable RS-232 or RS-4xx port, GPIO, Bluetooth LE 5.0 |
| Antennas | External approved Iridium Certus 100 antenna (TNC), external L1 GNSS antenna (SMA) |
| Power | 10-30 V DC or PoE+; 300 mW typical idle receive, sleep under 36 mW at 12 V |

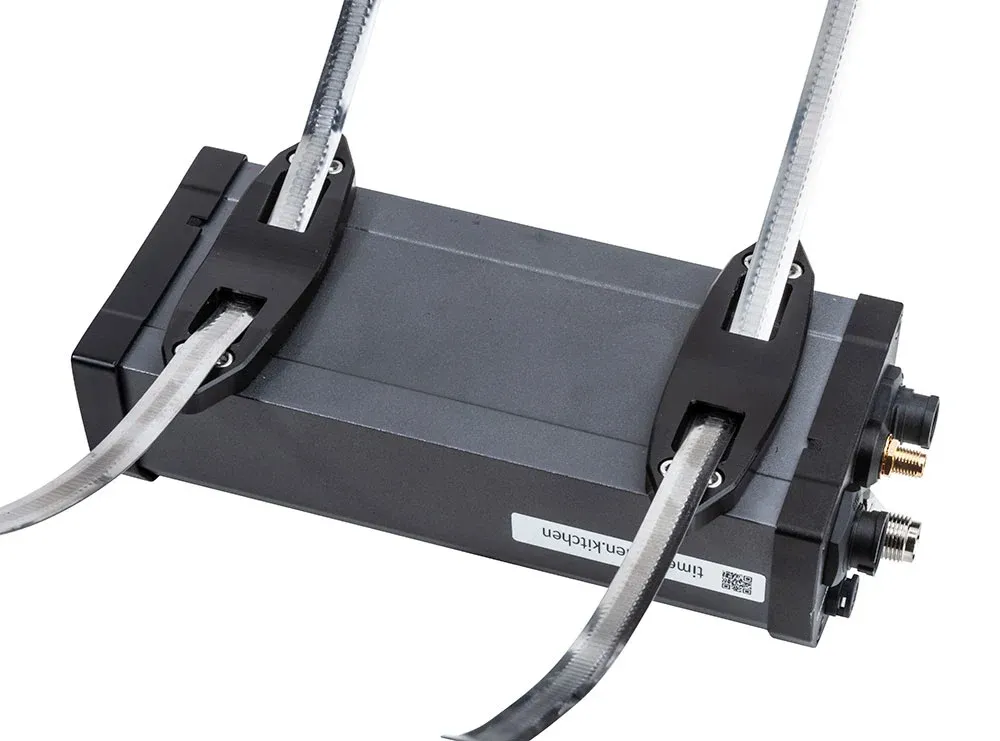

| Enclosure | Aluminium, IP66, mounting feet for bulkhead or band clamps for pole |
| Dimensions | 166.5 x 74.5 x 51.5 mm |
| Weight | 646 g |
| Operating temperature | -40 to +70 °C |
| Model | RockREMOTE Mini |
Need installation or a bulk quote? Talk to our team.
