RockREMOTE DIN-Rail Iridium Certus 100 and LTE Industrial IoT Gateway (Ethernet, RS-232/485, Linux)
Ground Control
RockREMOTE DIN-Rail Iridium Certus 100 and LTE Industrial IoT Gateway (Ethernet, RS-232/485, Linux)
Model: RockREMOTE
Pricing for this product is provided on request.

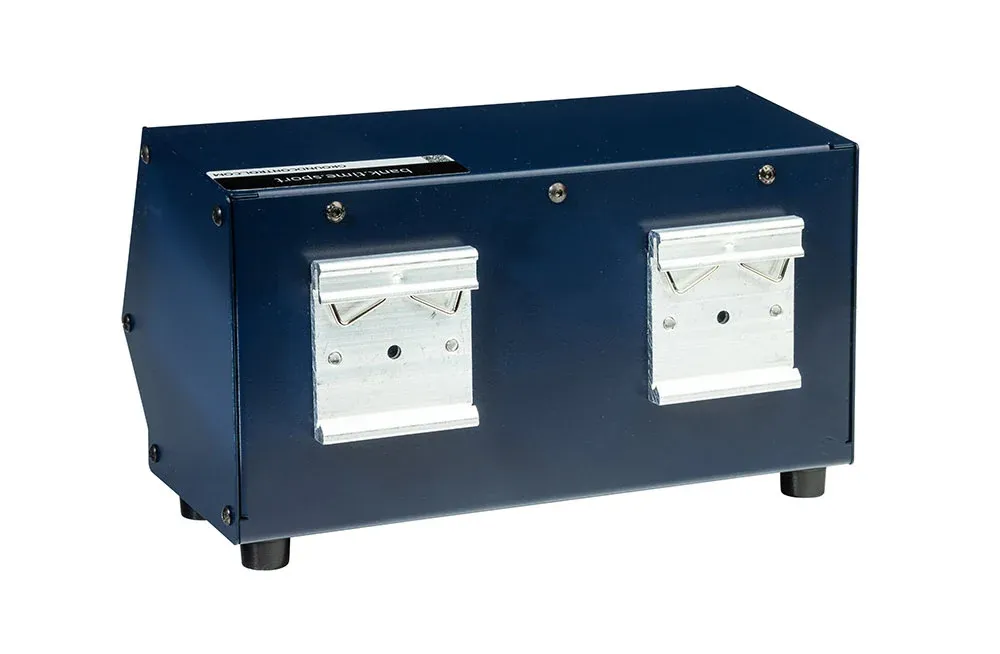

Request a quoteDIN-rail or desktop industrial gateway that gives equipment an IP path over Iridium Certus 100, with LTE cellular failover and support for Iridium Messaging Transport. It has Ethernet, RS-232, RS-422/485 and isolated GPIO, and runs a Linux compute module with a hardware security module. It is meant for cabinets and sheltered installations.
Specifications
| Network | Iridium Certus 100 IP data and Iridium Messaging Transport, plus LTE Cat 1 / Cat 4 (region variants) with automatic failover |
| Transceiver | Iridium Certus 9770, 22 kbps up and 88 kbps down |
| IMT message size | 1 to 100,000 bytes |

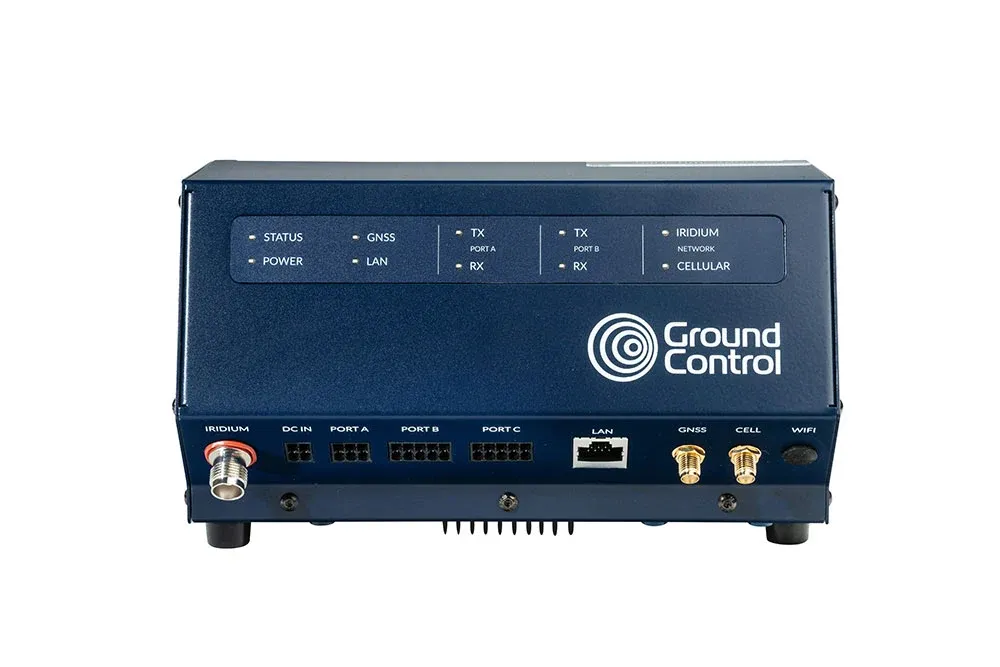

| Interfaces | RJ45 Ethernet, RS-232, configurable RS-422/RS-485, eight isolated GPIO, optional 2.4 GHz Wi-Fi |
| Antennas | External passive omnidirectional Iridium antenna (TNC), external GNSS and LTE antennas (SMA) |
| Power | 10-30 V DC; 0.2 W sleep, 5 W idle, 9 W average transmit |
| Enclosure | Steel, IP5x dust protection, for indoor or enclosure use |
| Dimensions | 193.3 x 120.3 x 117 mm |
| Weight | 1.263 kg |
| Operating temperature | -40 to +70 °C |
| Model | RockREMOTE |
