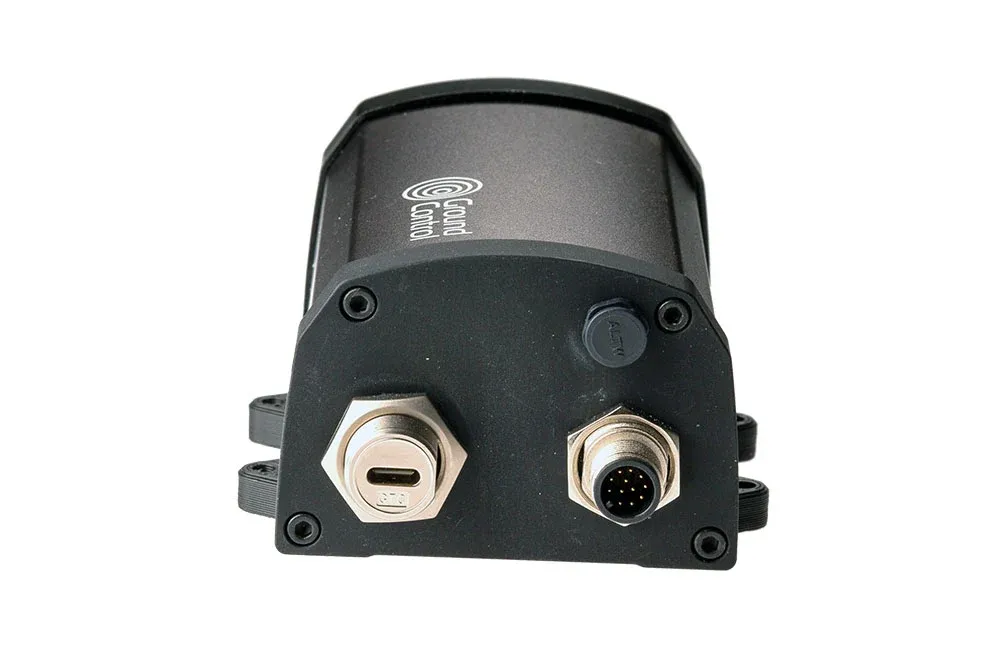

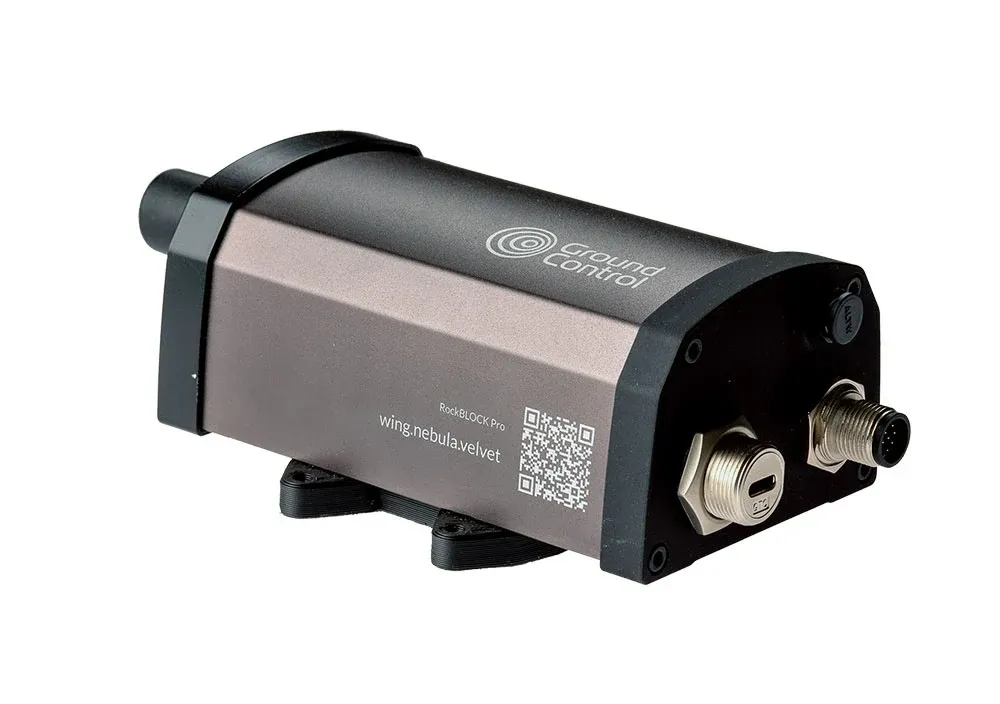

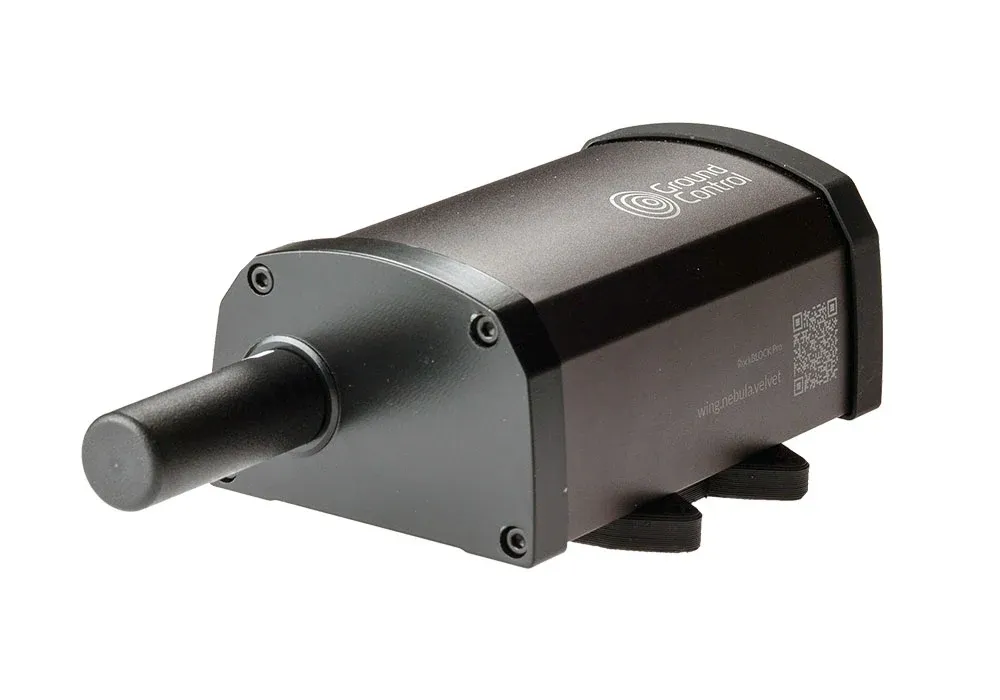

RockBLOCK Pro Programmable Iridium IMT Satellite Terminal, SMA connector (IP66, GNSS, 4 I/O)
Ground Control
RockBLOCK Pro Programmable Iridium IMT Satellite Terminal, SMA connector (IP66, GNSS, 4 I/O)
Model: RockBLOCK Pro (SMA)
$1,116.5
≈ UGX 4,466,000 · pay with MTN MoMo, Airtel Money or card
SMA-connector version of RockBLOCK Pro, an IP66 aluminium Iridium Messaging Transport terminal built on the Iridium Certus 9704 with GNSS, Bluetooth LE and four configurable I/O channels. An approved combined Iridium and GNSS antenna must be fitted separately. The host connects over RS232, RS485 or USB-C.
Specifications
| Network | Iridium Messaging Transport (IMT), global coverage |
| Satellite module | Iridium Certus 9704, 4.8 kbps data rate |
| Message size | 25 to 100,000 bytes |
| Host interfaces | RS232 or RS485 serial, USB-C, supports legacy 9603-style AT commands |
| I/O | Four configurable channels: 0-10 V analog input, dry-contact digital input or open-drain output |
| Antenna | SMA connector for an approved combined Iridium and GNSS antenna |
| Power | 5-30 V DC or 5 V USB-C, up to 2.5 W, sleep under 75 mW |
| Enclosure | Aluminium, IP66 |
| Dimensions | 121 x 75 x 57 mm (enclosure) |
| Weight | 388 g |
| Operating temperature | -40 to +65 °C |
| Model | RockBLOCK Pro (SMA) |
Need installation or a bulk quote? Talk to our team.
