RockBLOCK Pro OEM Board-Level Iridium IMT Satellite Terminal (30-way header, RS232/RS485)
Ground Control
RockBLOCK Pro OEM Board-Level Iridium IMT Satellite Terminal (30-way header, RS232/RS485)
Model: RockBLOCK Pro OEM
$870
≈ UGX 3,480,000 · pay with MTN MoMo, Airtel Money or card

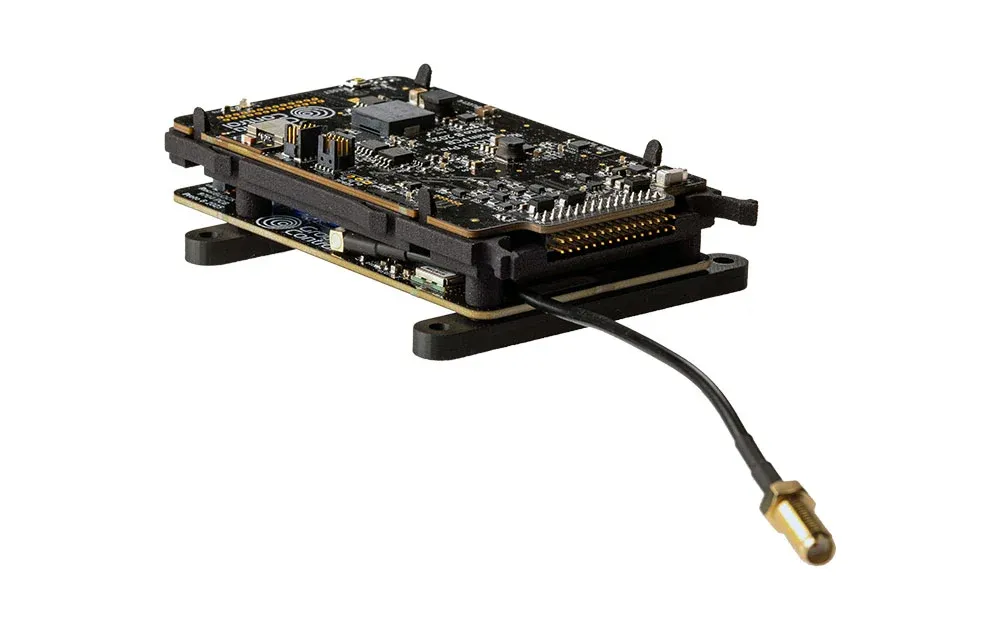

Board-level version of RockBLOCK Pro for teams integrating Iridium Messaging Transport into their own products, supplied as a PCB with a mounting frame. The onboard processor manages message queueing, retries and satellite network interaction, and runs the same firmware as the enclosed RockBLOCK Pro. Essential non-RF connections come out on a single 30-way header.
Specifications
| Network | Iridium Messaging Transport (IMT), global coverage |
| Satellite module | Iridium Certus 9704, 4.8 kbps data rate |
| Message size | 25 to 100,000 bytes |
| Host interface | 30-way 2 x 15, 2.0 mm pitch header, RS232 or RS485 |
| Antenna | External approved combined Iridium and GNSS antenna via MMCX connector |
| GNSS and wireless | Concurrent GPS/QZSS, Galileo, BeiDou and GLONASS; Bluetooth LE 5.0 |
| Power | Regulated or unregulated input via header, up to 2.5 W, sleep under 75 mW |
| Dimensions | 104 x 65 x 29 mm |
| Weight | 108 g excluding cables and antenna |
| Operating temperature | -40 to +65 °C |
| Model | RockBLOCK Pro OEM |
Need installation or a bulk quote? Talk to our team.
