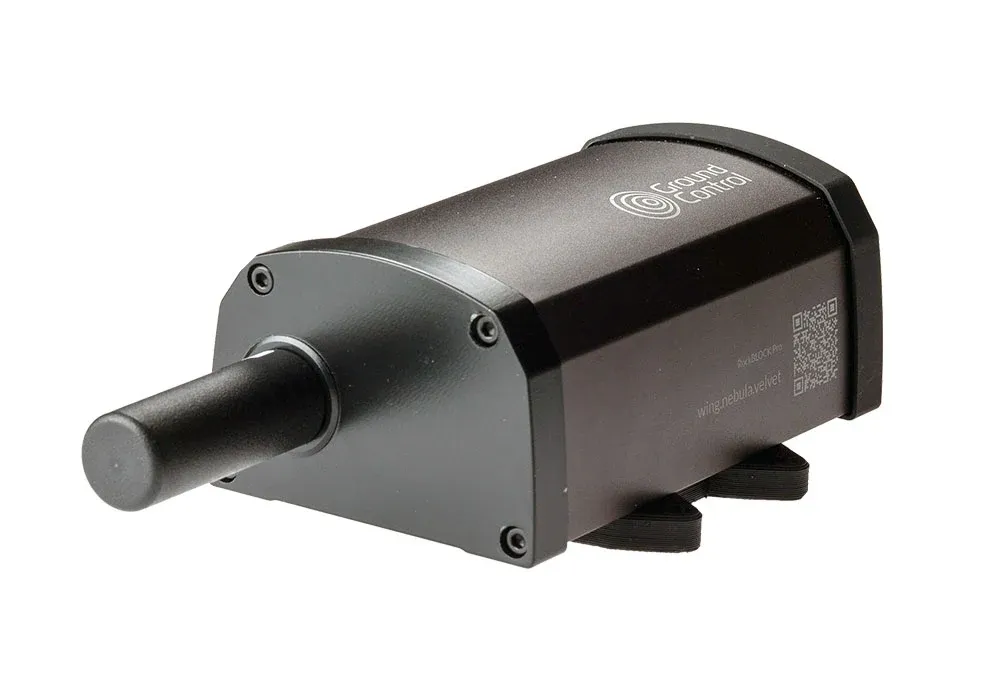

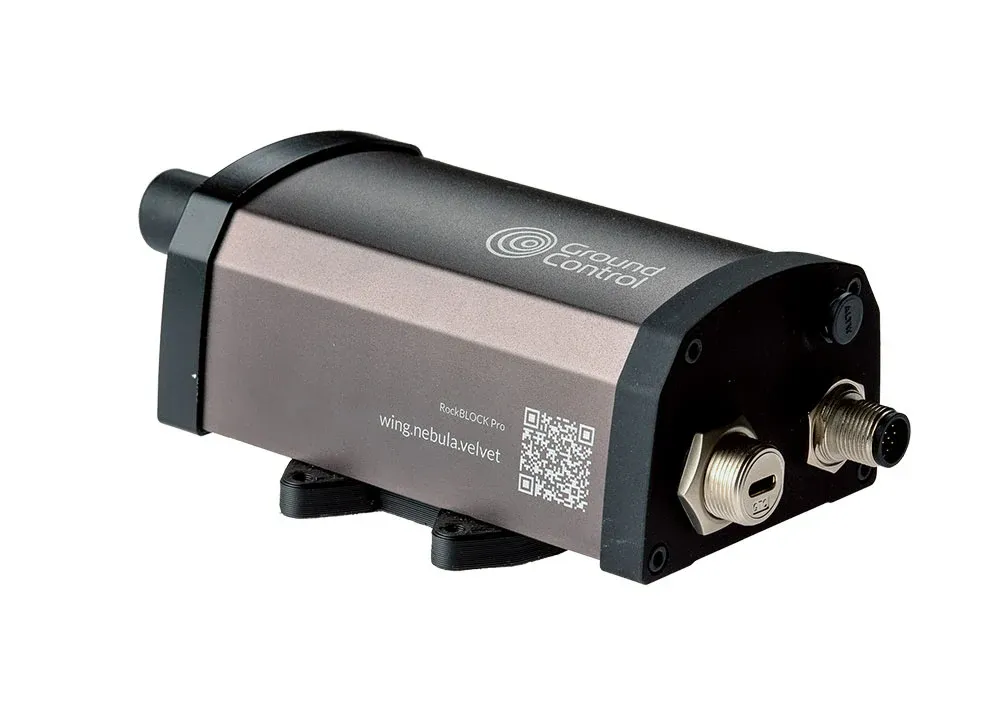

RockBLOCK Pro Programmable Iridium IMT Satellite Terminal, integrated antenna (IP66, GNSS, 4 I/O)
Ground Control
RockBLOCK Pro Programmable Iridium IMT Satellite Terminal, integrated antenna (IP66, GNSS, 4 I/O)
Model: RockBLOCK Pro (integrated antenna)
$1,261.5
≈ UGX 5,046,000 · pay with MTN MoMo, Airtel Money or card
Field-ready Iridium Messaging Transport terminal in an IP66 aluminium enclosure, built on the Iridium Certus 9704 with an onboard processor that handles queueing, retries and network management. It adds GNSS, Bluetooth LE configuration and four configurable I/O channels, and talks to a host over RS232, RS485 or USB-C. This version has the combined Iridium and GNSS antenna fitted.
Specifications
| Network | Iridium Messaging Transport (IMT), global coverage |
| Satellite module | Iridium Certus 9704, 4.8 kbps data rate |
| Message size | 25 to 100,000 bytes |

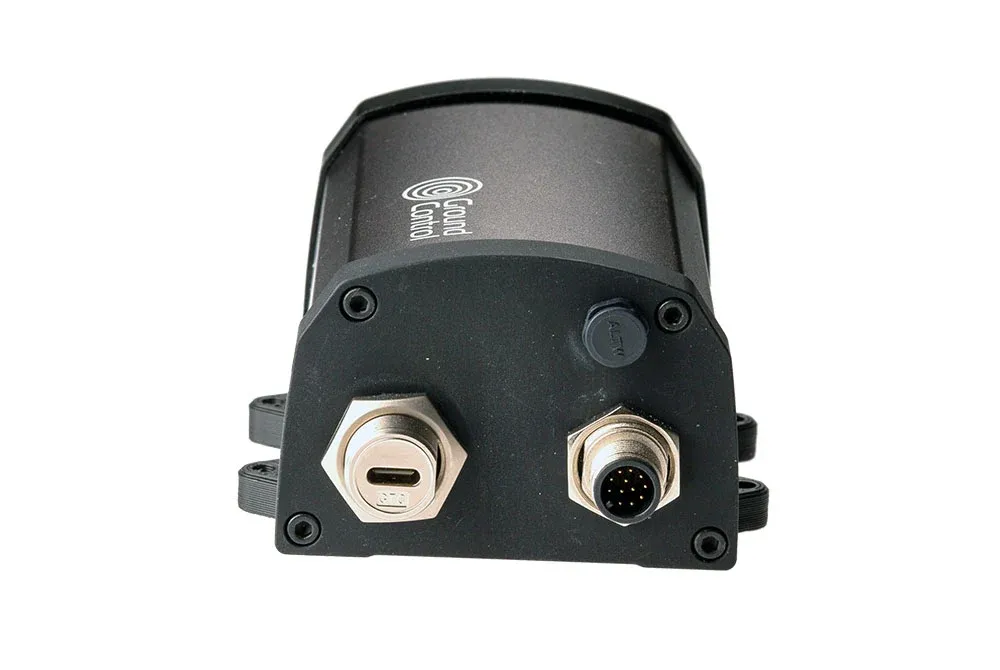

| Host interfaces | RS232 or RS485 serial, USB-C, supports legacy 9603-style AT commands |
| I/O | Four configurable channels: 0-10 V analog input, dry-contact digital input or open-drain output |
| GNSS and wireless | Concurrent GPS/QZSS, Galileo, BeiDou and GLONASS; Bluetooth LE 5.0 |
| Power | 5-30 V DC or 5 V USB-C, up to 2.5 W, sleep under 75 mW |
| Enclosure | Aluminium, IP66 |
| Dimensions | 121 x 75 x 57 mm (enclosure) |
| Weight | 400 g including antenna |
| Operating temperature | -40 to +65 °C |
| Model | RockBLOCK Pro (integrated antenna) |
Need installation or a bulk quote? Talk to our team.
