RockBLOCK 9704 Iridium IMT Satellite Module, SMA connector (up to 100 KB messages)
Ground Control
RockBLOCK 9704 Iridium IMT Satellite Module, SMA connector (up to 100 KB messages)
Model: RockBLOCK 9704 SMA
$404.55
≈ UGX 1,618,200 · pay with MTN MoMo, Airtel Money or card

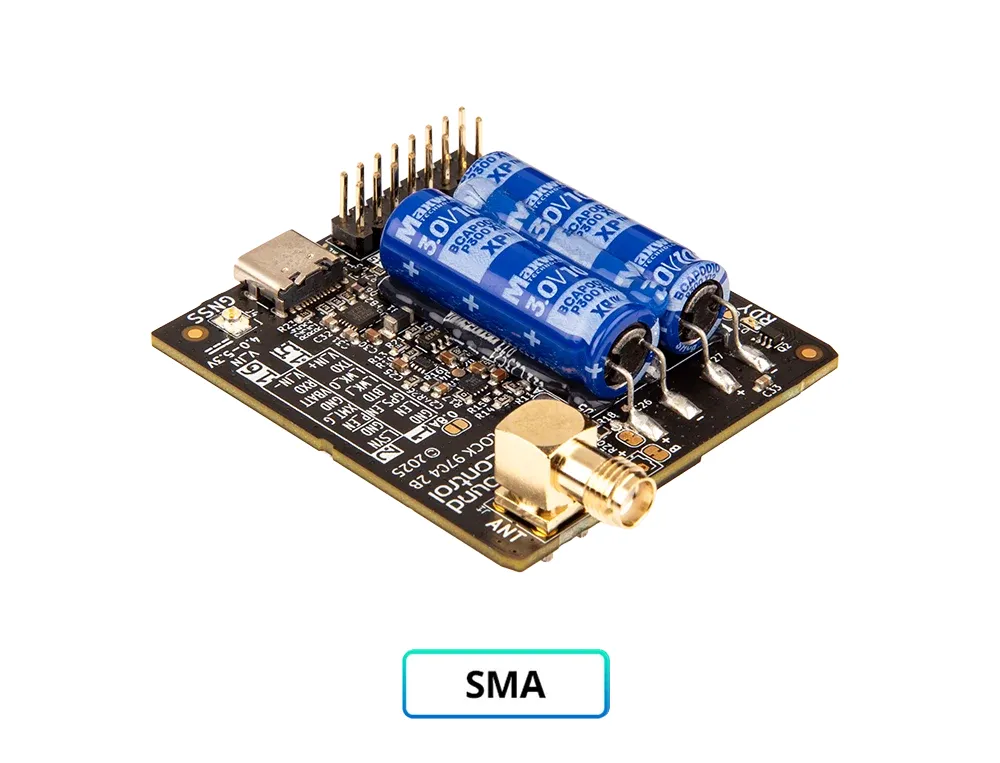

SMA-connector version of the RockBLOCK 9704 module, built around the Iridium Certus 9704 for Iridium Messaging Transport with messages from 25 bytes up to 100 KB. It needs an approved combined Iridium and GNSS antenna and is meant for installation inside your own enclosure. Connections are USB-C or a 3.3 V TTL UART.
Specifications
| Network | Iridium Messaging Transport (IMT), global coverage |
| Satellite module | Iridium Certus 9704 |
| Message size | 25 bytes to 100,000 bytes |
| Data rate | 4.8 kbps |
| Interfaces | USB-C serial bridge and 3.3 V TTL UART (230400 baud default) via 16-pin cable, 5 digital inputs and 3 outputs |
| Antenna | SMA connector for an approved combined Iridium and GNSS antenna, U.FL GNSS passthrough |
| Power | 4.0-5.3 V DC, 3.6-4.5 V battery or 5 V USB-C |
| Dimensions | 48 x 52 x 16 mm |
| Weight | Under 35 g excluding antenna |
| Operating temperature | -40 to +70 °C |
| Model | RockBLOCK 9704 SMA |
Need installation or a bulk quote? Talk to our team.
