RockBLOCK 9602 Iridium SBD Satellite Modem (TTL UART, patch or SMA antenna)
Ground Control
RockBLOCK 9602 Iridium SBD Satellite Modem (TTL UART, patch or SMA antenna)
Model: RockBLOCK 9602
$437.9
≈ UGX 1,751,600 · pay with MTN MoMo, Airtel Money or card

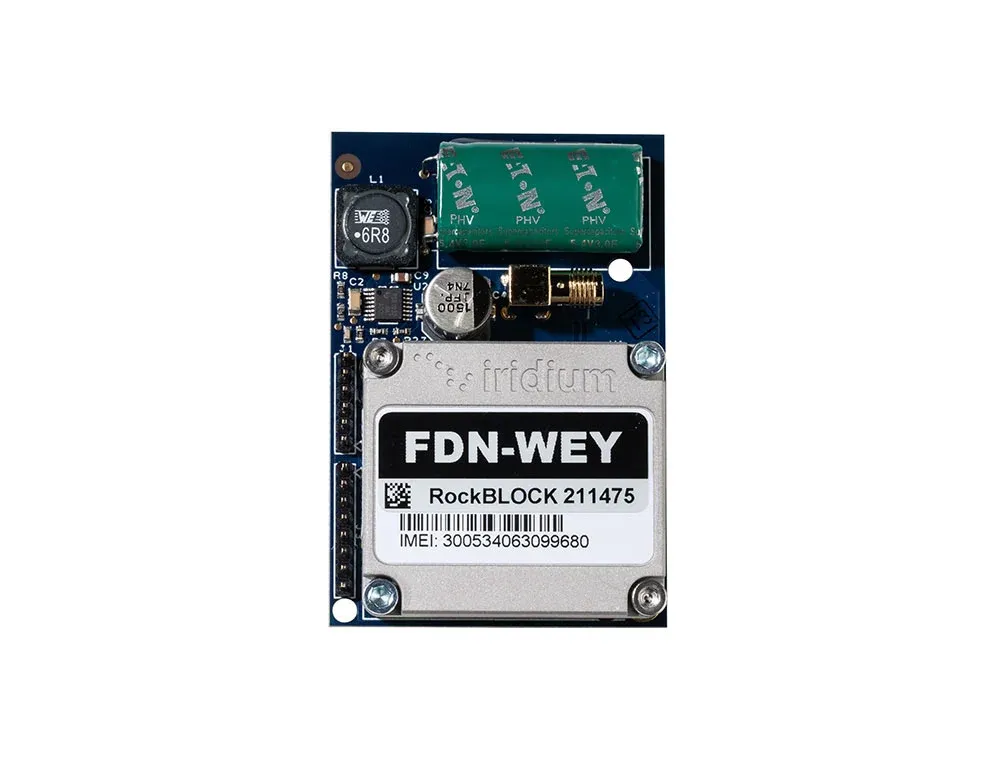

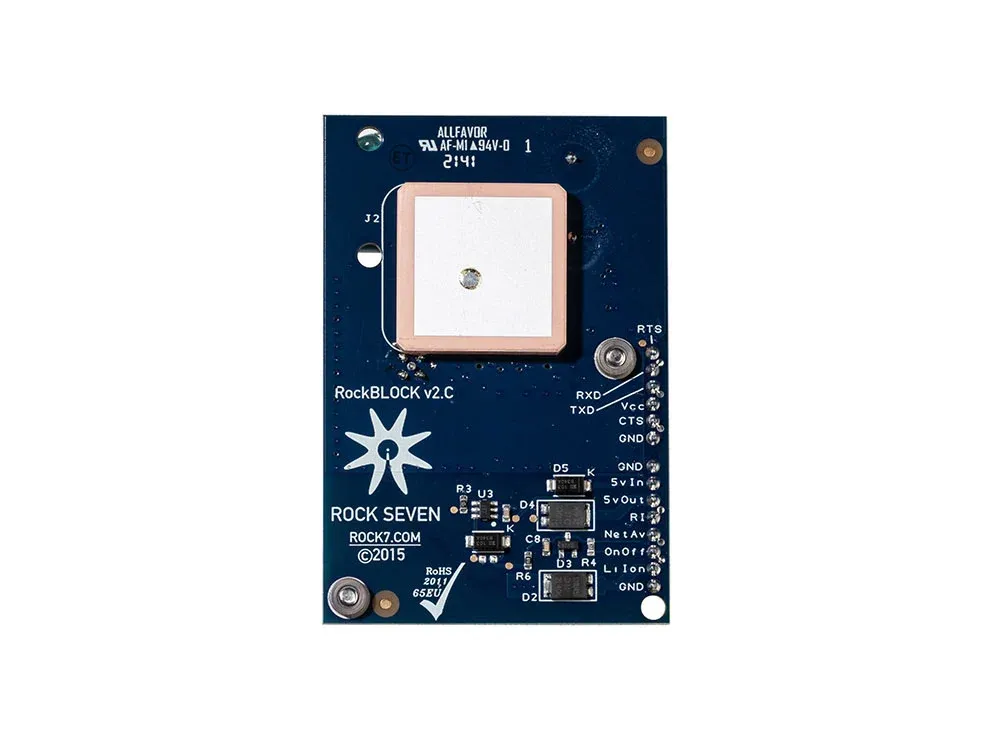

Board-level Iridium Short Burst Data (SBD) modem built around the Iridium 9602 transceiver, for adding two-way satellite messaging to your own hardware. It sends up to 340 bytes and receives up to 270 bytes per message and is available with an integrated patch antenna or an SMA connector for an external antenna. Messages can be routed through Cloudloop Data to HTTPS or MQTT endpoints.
Specifications
| Network | Iridium Short Burst Data (SBD), global coverage |
| Satellite modem | Iridium 9602 |
| Message size | Up to 340 bytes sent, up to 270 bytes received |
| Host interface | 3.3 V TTL UART, Iridium AT commands (optional FTDI USB-to-serial cable) |
| Antenna | Integrated patch antenna or SMA connector for an external antenna |
| Power | 4.5-5.4 V DC, up to 470 mA with supercapacitors fitted |
| Dimensions | 52 x 76 x 19 mm |
| Weight | 61 g (SMA), 67 g (patch antenna) |
| Operating temperature | -40 to +85 °C |
| Ingress protection | None, needs a suitable enclosure |
| Model | RockBLOCK 9602 |
