Gilat SkyEdge IV Capricorn Outdoor VSAT (DVB-S2X, up to 250/75 Mbps, IP67, 48 VDC)
Gilat
Gilat SkyEdge IV Capricorn Outdoor VSAT (DVB-S2X, up to 250/75 Mbps, IP67, 48 VDC)
Model: SkyEdge IV Capricorn Outdoor
Pricing for this product is provided on request.

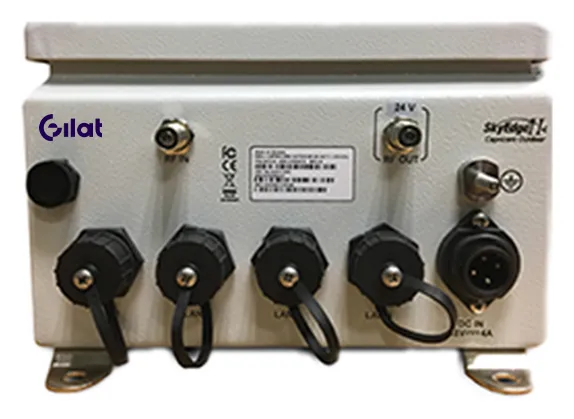

Request a quoteCapricorn Outdoor is the rugged, all-weather VSAT of the SkyEdge IV Capricorn family, built for harsh and unattended sites. It has the same Capricorn S2X modem and four Gigabit Ethernet ports in an IP67 enclosure rated from -40 to +60 °C.
Specifications
| Network | Gilat SkyEdge IV (GEO VHTS and NGSO, with backward compatibility to SkyEdge II-c) |
| Forward channel | DVB-S2X ACM, 5 to 500 Msps, roll-off 0.05/0.1/0.2, QPSK to 256APSK, LDPC/BCH |
| Return channel | Elastix-SCPC and MF-TDMA, 128 ksps to 30 Msps, BPSK/QPSK/16QAM/64QAM |
| Throughput | Up to 250 Mbps forward / 75 Mbps return |
| Interfaces | 4 x 10/100/1000BaseT Ethernet (RJ-45), 802.1q VLAN |
| RF interface | 2 x F-type 75 ohm; RF in 950-2150 MHz, RF out 950-2400 MHz, DiSEqC |
| Security | AES-256-bit link encryption, X.509 terminal authentication, ACL firewall |
| Form factor | Outdoor |
| Dimensions | 310 x 310 x 110 mm (W x D x H) |
| Weight | 6.3 kg |
| Power | 48 VDC, 20 W |
| Operating temperature | -40 to +60 °C, up to 100% humidity |
| Ingress protection | IP67 |
| Certifications | CE, FCC, EMC |
| Model | SkyEdge IV Capricorn Outdoor |
Need installation or a bulk quote? Talk to our team.
