Gilat SkyEdge IV Aquarius Outdoor Multi-Orbit VSAT (500/250 Mbps, IP67, 5 x GbE)
Gilat
Gilat SkyEdge IV Aquarius Outdoor Multi-Orbit VSAT (500/250 Mbps, IP67, 5 x GbE)
Model: SkyEdge IV Aquarius Outdoor
Pricing for this product is provided on request.
Request a quoteAquarius Outdoor is the weatherproof VSAT of the SkyEdge IV Aquarius family for fixed and mobility use over GEO and NGSO networks. It is housed in an IP67 enclosure rated for -30 to +60 °C and runs from 48 VDC.
Specifications
| Network | Gilat SkyEdge IV, multi-orbit (GEO and NGSO), fixed and mobility |
| Frequency bands | C-, Ku- and Ka-band |
| Forward channel | DVB-S2X ACM, 5 to 500 Msps, roll-off 0.05/0.1/0.2, BPSK-S 1/5 to 256APSK, LDPC/BCH |
| Return channel | Elastix-Access (eSCPC), 512 ksps (GEO) / 1 Msps (MEO) up to 250 Msps |

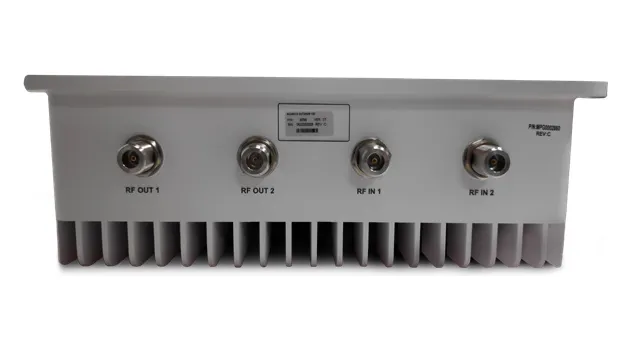

| RF interface | 2 x TX / 2 x RX N-type 50 ohm; RF in 950-2150 MHz, RF out 950-2400 MHz, DiSEqC |
| Antenna | OpenAMIP; BUC control via OpenBMIP |
| Layer 2 services | MEF-based E-Line access and transit (MEF 51.1) |
| Security | AES-256-bit link encryption, ACL firewall, X.509 terminal authentication |
| Throughput | 500/250 Mbps |

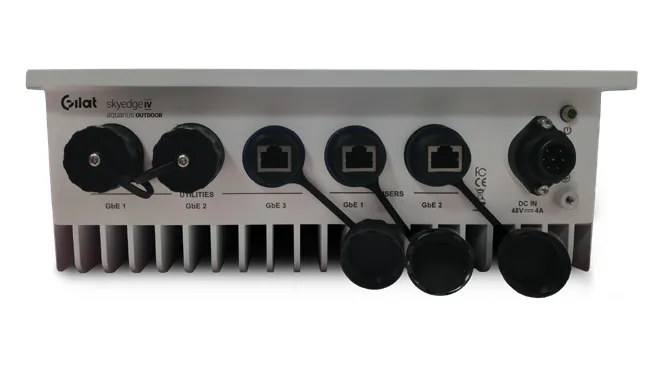

| Interfaces | 5 x 10/100/1000BaseT |
| Form factor | Outdoor |
| Dimensions | 461 x 316 x 122 mm |
| Power | 48 VDC, 85 W |
| Operating temperature | -30 to +60 °C |
| Ingress protection | IP67 (ETSI EN 300 019 Part 1-4, Class 4.1) |
| Certifications | CE, FCC, EMC |
| Model | SkyEdge IV Aquarius Outdoor |
