Gilat SkyEdge IV Aquarius-e Multi-Orbit VSAT (300/100 Mbps, rack-mount or card, 5 x GbE)
Gilat
Gilat SkyEdge IV Aquarius-e Multi-Orbit VSAT (300/100 Mbps, rack-mount or card, 5 x GbE)
Model: SkyEdge IV Aquarius-e
Pricing for this product is provided on request.

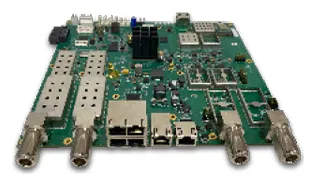

Request a quoteAquarius-e is the entry member of the SkyEdge IV Aquarius family, available as a rack-mount unit or as a card, for fixed and mobility networks on GEO and NGSO satellites. It offers up to 300/100 Mbps with five Gigabit Ethernet ports and supports C-, Ku- and Ka-band.
Specifications
| Network | Gilat SkyEdge IV, multi-orbit (GEO and NGSO), fixed and mobility |
| Frequency bands | C-, Ku- and Ka-band |
| Forward channel | DVB-S2X ACM, 5 to 500 Msps, roll-off 0.05/0.1/0.2, BPSK-S 1/5 to 256APSK, LDPC/BCH |
| Return channel | Elastix-Access (eSCPC), 512 ksps (GEO) / 1 Msps (MEO) up to 250 Msps |
| RF interface | 2 x TX / 2 x RX N-type 50 ohm; RF in 950-2150 MHz, RF out 950-2400 MHz, DiSEqC |
| Antenna | OpenAMIP; BUC control via OpenBMIP |
| Layer 2 services | MEF-based E-Line access and transit (MEF 51.1) |
| Security | AES-256-bit link encryption, ACL firewall, X.509 terminal authentication |
| Throughput | 300/100 Mbps |
| Interfaces | 5 x 10/100/1000BaseT |
| Form factor | Card / rack mount |
| Dimensions | 210 x 230 x 35 mm |
| Power | 100-240 VAC; 24 V (card option), 50 W |
| Operating temperature | -5 to +50 °C |
| Certifications | CE, FCC, EMC |
| Model | SkyEdge IV Aquarius-e |
