Gilat SkyEdge II-c Capricorn Outdoor VSAT (S2X family, DVB-S2X, up to 200/100 Mbps, IP67, 48 VDC)
Gilat
Gilat SkyEdge II-c Capricorn Outdoor VSAT (S2X family, DVB-S2X, up to 200/100 Mbps, IP67, 48 VDC)
Model: SkyEdge II-c Capricorn Outdoor
Pricing for this product is provided on request.

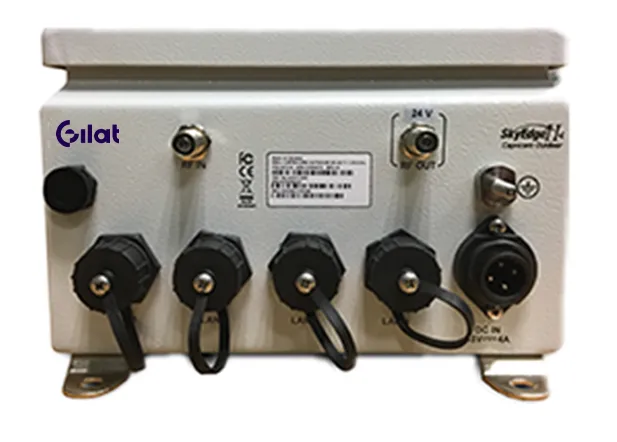

Request a quoteCapricorn Outdoor is the rugged, all-weather member of Gilat's SkyEdge II-c Capricorn S2X family, intended for harsh, unattended sites. It carries the Capricorn four-port Gigabit Ethernet modem in an IP67 enclosure, for cellular backhaul, enterprise and mobility services.
Specifications
| Network | Gilat SkyEdge II-c |
| Frequency bands | C, Ku and Ka |
| Forward channel | DVB-S2X ACM, 1.5 to 500 Msps, roll-off 0.05/0.1/0.2, QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 256APSK, LDPC/BCH |
| Return channel | MF-TDMA 128 ksps to 30 Msps (BPSK/QPSK/16QAM) and SCPC 1.5 to 40 Msps (DVB-S2 ACM, QPSK/8PSK/16APSK) |
| Throughput | Up to 200 Mbps forward / 100 Mbps return |
| Interfaces (S2X family sheet) | 4 x 10/100/1000BaseT Ethernet, 802.1q VLAN |
| RF interface (S2X family sheet) | RF in 950-2150 MHz, RF out 950-2400 MHz, DiSEqC |
| Security | AES-256-bit link encryption, IPsec client, ACL firewall, X.509 terminal authentication |
| Antenna | OpenAMIP; antennas from 0.7 m |
| Form factor | Outdoor |
| Dimensions | 310 x 310 x 110 mm (W x D x H) |
| Weight | 6.3 kg |
| Power | 48 VDC, 20 W |
| Operating temperature | -40 to +60 °C, up to 100% humidity |
| Ingress protection | IP67 |
| Certifications | CE, FCC, EMC |
| Model | SkyEdge II-c Capricorn Outdoor |
