Gilat ESR 2030 Ku Electronically Steerable Antenna for OneWeb LEO In-Flight Connectivity (single LRU, 230/30 Mbps)
Gilat
Gilat ESR 2030 Ku Electronically Steerable Antenna for OneWeb LEO In-Flight Connectivity (single LRU, 230/30 Mbps)
Model: ESR 2030 Ku
Pricing for this product is provided on request.

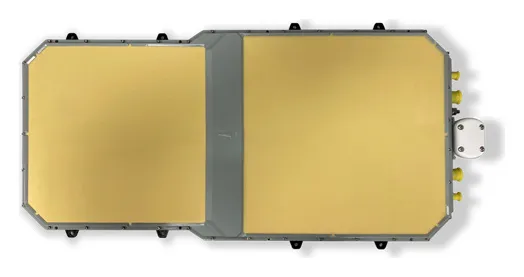

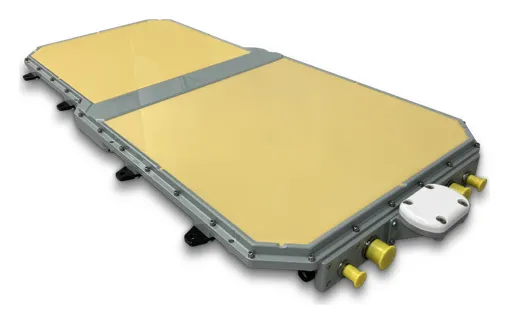

Request a quoteThe ESR 2030 Ku is a compact, lightweight, aviation-grade electronically steerable antenna (ESA) for in-flight connectivity over the OneWeb Ku-band LEO constellation, supporting full-duplex operation. It is a single line replaceable unit that combines the active transmit and receive apertures, the frequency conversion unit, the antenna control unit and the OneWeb GPS receiver. Gilat positions it for commercial, business and defense aviation.
Specifications
| Type | Electronically steerable antenna (ESA), fully integrated single LRU |
| Network | OneWeb Ku-band LEO constellation, full duplex |
| Throughput | 230 Mbps download / 30 Mbps upload (over the OneWeb system) |
| Transmit band | 13.75-14.5 GHz |
| Receive band | 10.7-12.75 GHz |
| Instantaneous bandwidth | Tx: 500 MHz, Rx: 250 MHz per beam |
| G/T | 10.0 dB/K at 11.7 GHz, 90° elevation |
| EIRP | 41 dBW at 14.25 GHz, 90° elevation |
| Field of view | 0°-360° azimuth, 15°-90° elevation |
| Beam switching time | Under 0.4 ms |
| Tracking accuracy | 0.2° |
| Integrated functions | Active transmit and receive apertures, frequency conversion unit, antenna control unit, OneWeb GPS receiver |
| Dimensions (H x W x L) | 5.1 x 39 x 81 cm (antenna LRU only) |
| Weight | 10 kg |
| Power supply | 28 V DC |
| Power consumption | 200 W |
| Environmental | DO-160 compliant |
| Model | ESR 2030 Ku |
