Gilat Wavestream Aerostream 60W Ka-Band Wideband BUC / KRFU for Airborne Terminals (27.5-30.0 GHz, WBAR-060A10)
Gilat
Gilat Wavestream Aerostream 60W Ka-Band Wideband BUC / KRFU for Airborne Terminals (27.5-30.0 GHz, WBAR-060A10)
Model: Aerostream 60W Ka-Band KRFU WBAR-060A10
Pricing for this product is provided on request.

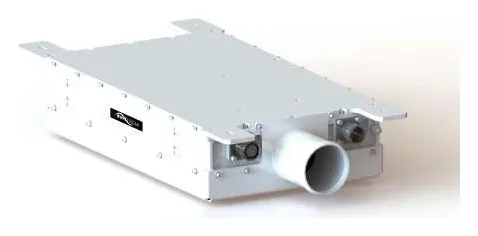

Request a quoteThe Aerostream 60W Ka-band wideband block upconverter, supplied as a Ka-band radio frequency unit (KRFU), is built by Gilat Wavestream for airborne satellite communications. It transmits at 27.5-30.0 GHz with 60 W peak envelope power, is designed for a pressurized environment and comes with fan and fanless cooling options. Gilat states it meets RTCA/DO-160G and ARINC specifications for commercial aircraft.
Specifications
| Base model | WBAR-060A10 |
| Transmit frequency | 27.5-30.0 GHz |
| IF frequency | 950-1950 MHz |
| Peak envelope power (PEP) | +47.8 dBm (60 W) nominal |
| Linear output power | +45.7 dBm (37 W) |
| Small signal gain | 66 dB nominal, 20 dB gain adjustment |
| VSWR | IF input 1.5:1; RF output 1.5:1 |
| Interfaces | Input power: 4-pin MIL circular; M&C: 22-pin MIL circular, Ethernet, discrete keyline; TX IF: TNC; reference (50 MHz): TNC; RF output: WR-28 with 2.92 mm female |
| Power | 115 VAC, 360-800 Hz; 400 W max at linear output power |
| Size | 18.0 in L x 9.06 in W x 3.25 in H (45.7 x 23.1 x 8.3 cm) |
| Weight | 22.0 lb (10 kg) |
| Cooling | Fan and fanless options available |
| Operating temperature | -15 °C to +55 °C, 100% condensing humidity |
| Operating altitude | 15,000 ft above sea level |
| Shock and vibration | DO-160G, MIL-STD-810 |
| Export control | Datasheet states the item is subject to the US Export Administration Regulations (EAR) and may not be exported or transferred to any non-U.S. person except as authorized by the US Department of Commerce |
| Model | Aerostream 60W Ka-Band KRFU WBAR-060A10 |
