Comtech MBT-4000 and MBT-4000B Multi-Band RF Transceivers (outdoor C, X, Ku-band block converters with L-band IF)
Comtech
Comtech MBT-4000 and MBT-4000B Multi-Band RF Transceivers (outdoor C, X, Ku-band block converters with L-band IF)
Model: MBT-4000/4000B
Pricing for this product is provided on request.

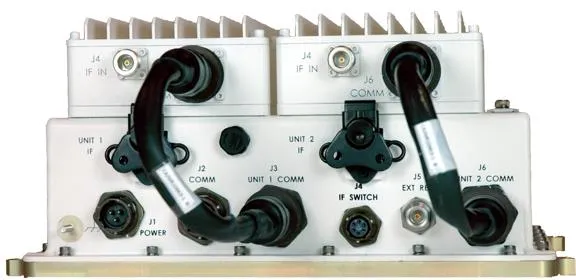

Request a quoteThe MBT-4000 and MBT-4000B are outdoor multi-band RF transceivers that convert C-, X-, Ku- or Ka-band RF to L-band and L-band to C-, X- or Ku-band. The MBT-4000 holds two independent converter modules; the MBT-4000B holds one up converter and also provides bias, reference and monitoring for one LNB. They are intended for transportable and flyaway terminals and support 1:1 redundant configurations.
Specifications
| Type | Outdoor multi-band RF transceivers (BUC-4000 / BDC-4000 modules) |
| BUC output bands | BUC-4000C 5850-6650 / 5850-6725 MHz; BUC-4000X 7900-8400 MHz; BUC-4000Ku 13.75-14.50 GHz |
| BDC input bands | BDC-4000C 3400-4200 MHz; BDC-4000X 7250-7750 MHz; BDC-4000K 10.95-12.75 GHz |
| IF | 950 to 2000 MHz (L-band) |
| Gain | BUC 15 dB (C, X) / 18 dB (Ku) nominal; BDC 15 dB nominal; 0-10 dB attenuation |
| Output P1dB | BUC +10 dBm min; BDC +12 dBm min |
| Power | 90-260 VAC, 47-63 Hz |
| Operating temperature | ODU -40 to +50 C; designed for IP-66 |
| Model | MBT-4000/4000B |
