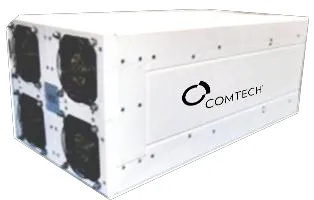

Comtech LGAN Ku 200W Ku-band GaN Block Upconverter (BUC/SSPA, 100 W linear / 200 W rated, 13.75-14.5 GHz)
Comtech
Comtech LGAN Ku 200W Ku-band GaN Block Upconverter (BUC/SSPA, 100 W linear / 200 W rated, 13.75-14.5 GHz)
Model: LGAN Ku 200W
Pricing for this product is provided on request.
Request a quoteThe LGAN Ku 200W is the PS1.5 package of Comtech's GaN-based Ku-band outdoor BUC/SSPA family, with 100 W guaranteed linear power and 200 W typical rated power. It takes an L-band IF, can generate its own 10 MHz reference with an optional OCXO and can bias an LNB, which removes DC and reference signals from the IF cables in multi-carrier and redundant systems.
Specifications
| Linear power (guaranteed) | 50 dBm (100 W) |
| Rated power (typical) | 53 dBm (200 W) |
| AC input | 90-250 VAC, 47-63 Hz, power factor corrected |
| Weight / dimensions | 27 lb nominal; 7.2 x 8.6 x 14 in |
| Type | Ku-band GaN Block Up Converter (BUC) / SSPA, outdoor |
| RF output frequency | 13.75 to 14.50 GHz (14.00 to 14.50 GHz optional) |
| IF input frequency | 950 to 1700 MHz (950 to 1450 MHz for the 14.00 to 14.50 GHz option) |
| Gain | 70 dB min, 75 dB typical; 25 dB adjust in 0.1 dB steps |
| Noise figure | 15 dB typical, 20 dB max at minimum attenuation |
| RF output connector | WR75 (IF input Type N female) |
| M&C | RS-232/485, Ethernet (HTML pages, SNMP, Telnet), Advanced FSK; built-in data logging |
| Options | Internal 10 MHz OCXO reference; LNB bias (12/18 V, 450 mA) and 10 MHz LNB reference |
| Operating temperature | -40 to 55 C (-40 to 131 F); designed for IP-66 |
| Model | LGAN Ku 200W |
